67076-4-BLUE

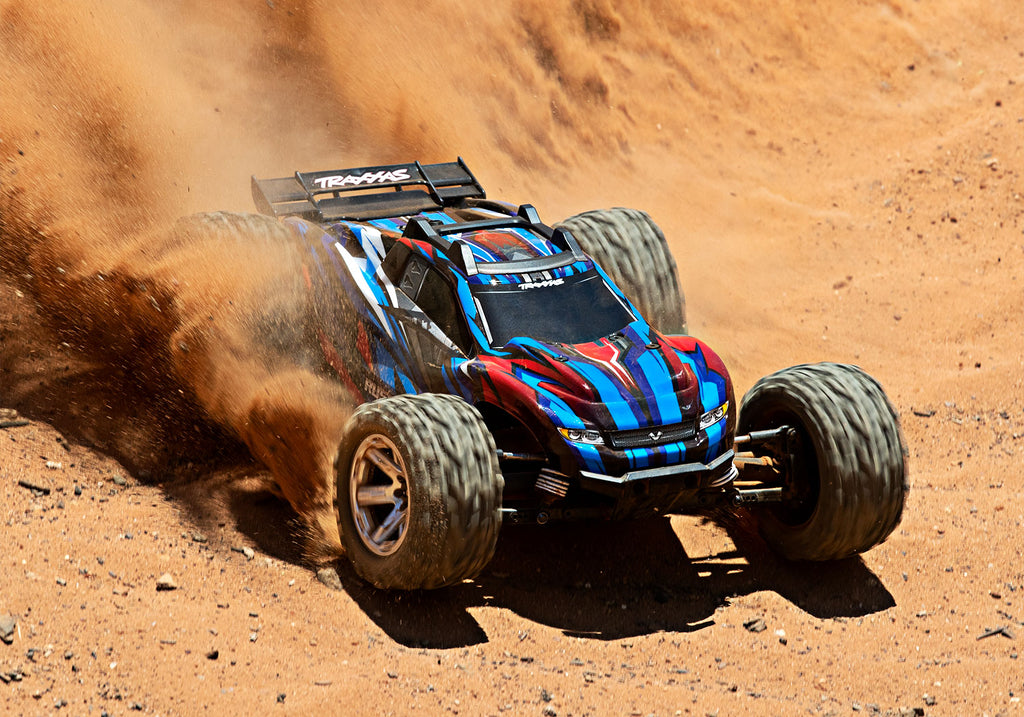

The all-new Rustler® 4X4 VXL is a hard-charging wheelie machine that captures the speed and classic style of the number-one-selling Rustler and injects it with brutal 4-wheel drive performance, increased durability, and even more fun! Bury the throttle and the Rustler 4X4 launches its front wheels skyward as it shreds the ground underneath.
Beneath the sleek clipless body, the heavy duty driveline delivers extreme Velineon® brushless horsepower. The larger Talon™ EXT wheels and tires provide versatility and grip for any terrain, from backyard trails to concrete skate parks. Rustler 4X4 VXL destroys convention to become the new performance and fun standard for 4X4 stadium trucks!
Rustler 4X4 lets you choose the performance you want!
Select the right Traxxas iD battery to fit your needs from the options below
| Speed | 30+ mph | 40+ mph* | 65+ mph* |
|---|---|---|---|
| Battery |
2923X (1) 3000 mAh NiMH |
2843X (1) 5800 mAh 2s LiPo |
2857X (1) 6400 mAh 3s LiPo |
| Pinion/Spur | 11-T / 54-T | 17-T / 54-T | 20-T / 54-T |
| Skill Level | 1 | 4 | 5 |
Larger pinion gear/smaller spur gear combinations are for high-speed running on hard, smooth surfaces only.
*With included optional gearing
*With included optional gearing
Choose your charging option with Rustler 4X4!
Traxxas iD Auto Battery Identification makes charging simple
| EZ-Peak |
2970 EZ-Peak Plus |
2971 EZ-Peak Live |
2972 EZ-Peak Dual |
|---|---|---|---|
| Charging Amperage | 4-amp | 12-amp Bluetooth® |
4-amp (dual) 8-amp (single) |

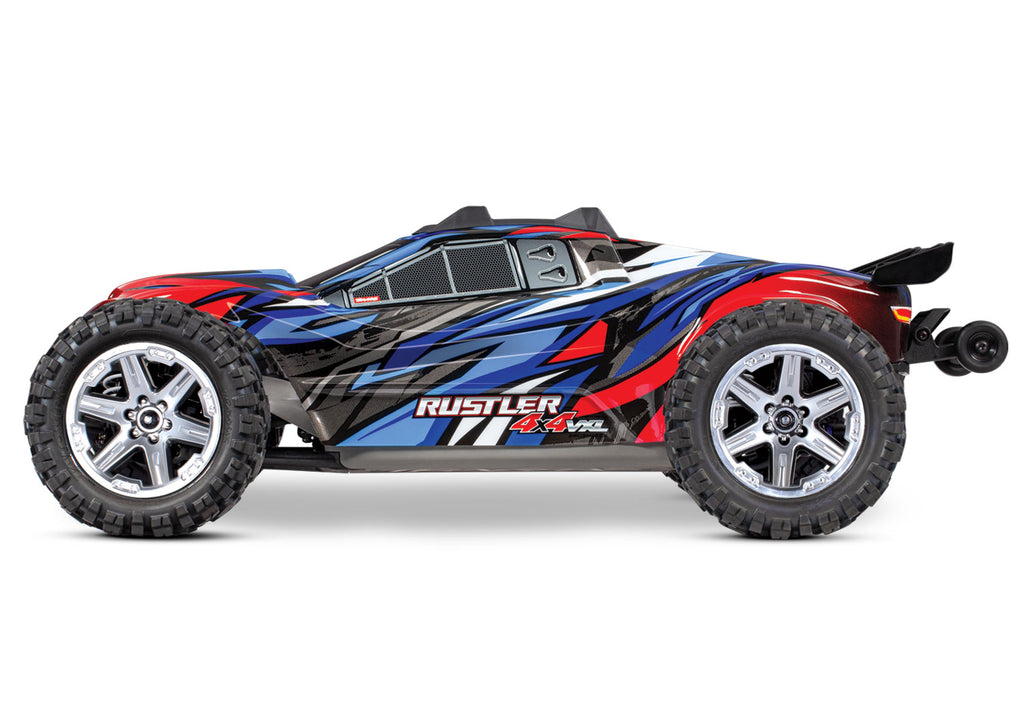

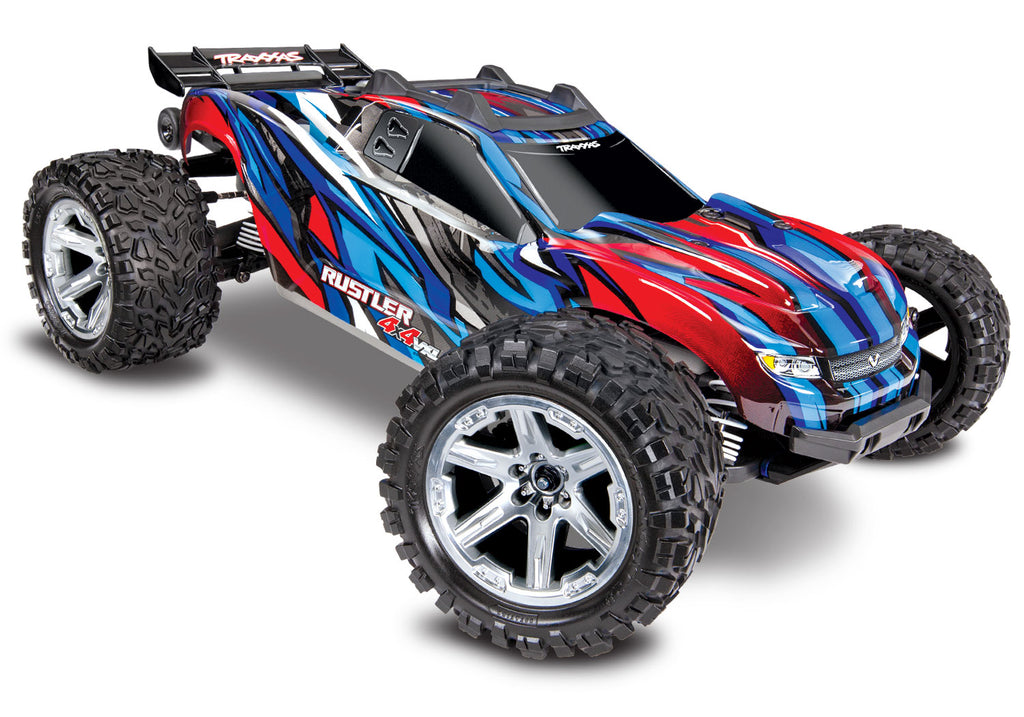

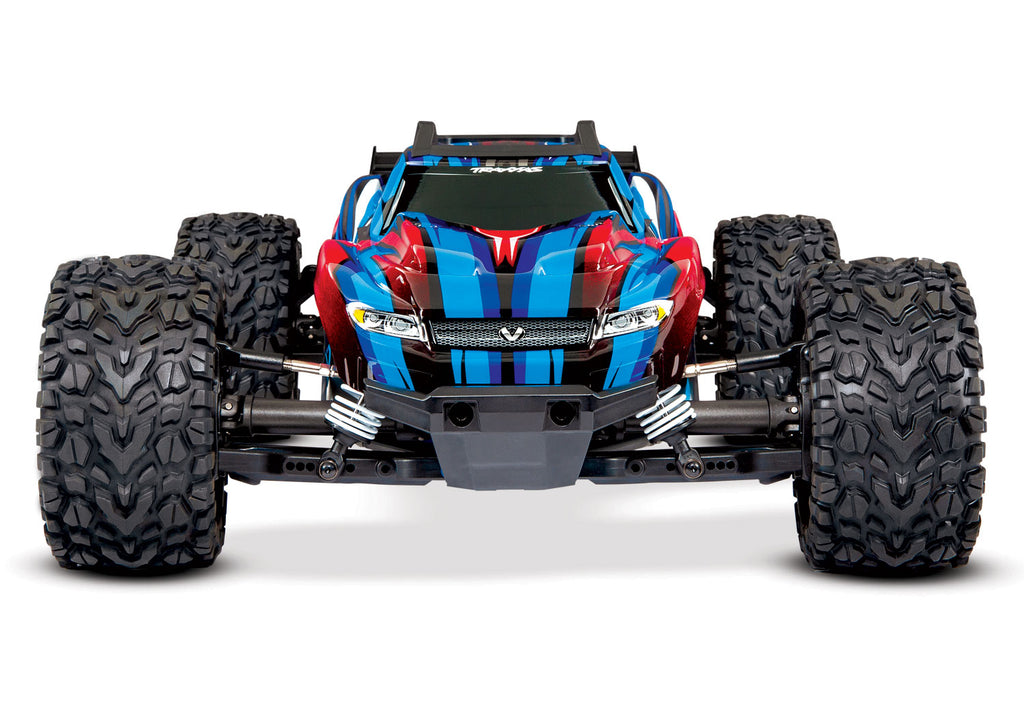

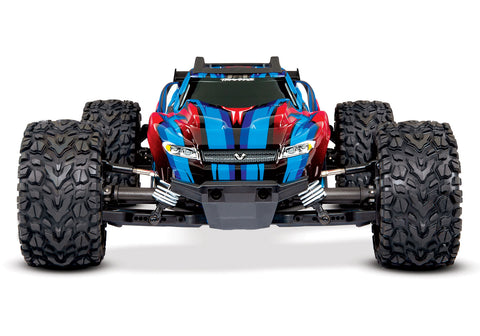

MODEL 67076-4: Rustler 4X4 VXL: 1/10 Scale 4X4 Stadium Truck, Fully-assembled, Waterproof electronics, Ready-To-Race®, With TQi™ 2.4GHz 2-channel radio system, Traxxas Stability Management®, VXL-3s speed control, and clipless painted ProGraphix® body. Requires: battery and charger.
-
Clipless ProGraphix® Body
- Easy one-handed removal
- Reinforced inner cage
- Strong oversized latch
- Rugged roof rollover protector
- Molded composite plastic wing
-
VXL-3s™ Waterproof Electronic Speed Control
- Three programmable drive profiles:
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set® one-button setup
- Large heat sink
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 4-9 cells (4.8 to 10.8 volts)
- LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
- Three programmable drive profiles:
-
Velineon® Brushless Motor
- Ultra high-temperature sintered Neodymium magnets
- Optimized for power and efficiency in 1/10th scale vehicles
- Low-maintenance, unique Traxxas design
- Efficient, high-speed ball bearings
- Precision-balanced rotor
- 3500 kV
- Brilliant blue-anodized finish
-
Traxxas Stability Management® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
-
TQi™ 2.4GHz High Output Radio System
- TQi 2-channel transmitter
- 5-channel micro receiver (#6533) with fail-safe security and integrated telemetry ports
- Compatible with optional TQi Traxxas Link Wireless Module (#6511) to access full Traxxas Link app functionality (sold separately)
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
- Programmable multi-function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- Patented waterproof receiver box
-

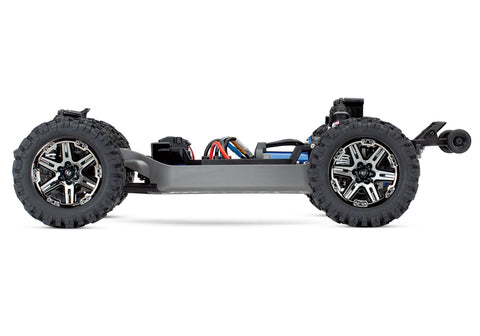

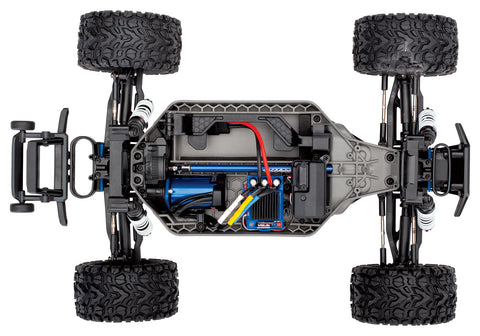

Chassis
- Low-CG design for responsive handling
- Modular composite tub design
- Latching battery hold-down
- Reinforced integrated wheelie bar
- High-approach front bumper to climb curbs
-

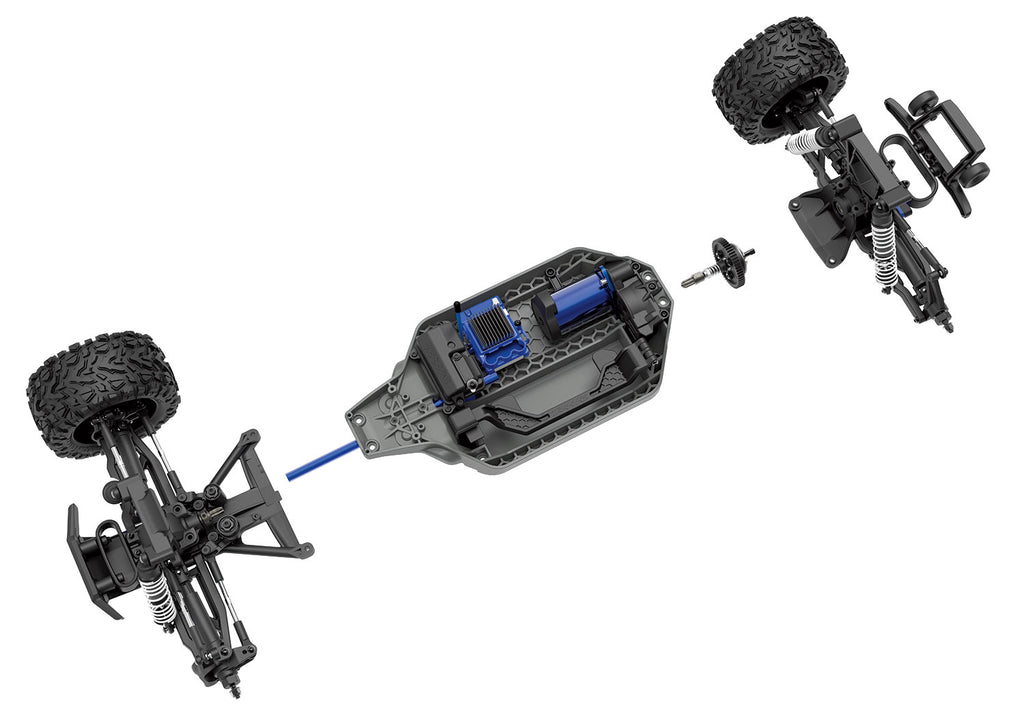

Drivetrain
- New extreme heavy-duty driveshafts
- Oil-filled steel gear front and rear differentials
- Large 32-pitch gearing
- Torque Control™ heavy-duty slipper clutch with aluminum pads
- Anodized-aluminum center driveshaft
-
Steering
- Chassis-mounted #2075 servo
- Dual bellcrank design with integrated servo saver
-
Suspension
- Adjustable toe and camber links
- New impact-resistant suspension arm composite
- Oil-filled Ultra Shocks
- Captured rod ends won't pop off
- Rugged front and rear shock towers
- White powder-coated progressive springs
-
Wheels and Tires
- Large 2.8” black chrome wheels
- Talon™ EXT tires
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
- Requires Battery and Charger (Sold Separately)
Model Specs
| Model Name: | Rustler 4X4 VXL |
|---|---|
| Model Type: | Stadium Trucks |
| Model Speed: | 65+ mph with 3-cell LiPo and 20/54 gearing |
| Model Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 5.12 pounds (2.32 kg) |
| Length: | 18.78 inches (477 mm) |
| Width: | 12.94 inches (329 mm) |
| Front Track: | 12.94 inches (329 mm) |
| Rear Track: | 12.94 inches (329 mm) |
| Height: | 6.35 inches (161 mm) |
Motor Specs
| Motor Name: | Velineon® 3500 |
|---|---|
| Motor Type: | Sensorless brushless |
| Motor Weight: | 9.24 ounces (262 g) |
| Motor Length: | 3.03 inches (77 mm) overall length, 2.2 inches (56 mm) can length |
| Motor Diameter: | 1.41 inches (36 mm) |
| Motor Shaft Size: | 3 mm |
| Motor Connector Type: | 3.5 mm bullet |
ESC Specs
| ESC Name: | VXL-3s™ electronic speed control |
|---|---|
| ESC Type: | Brushless |
| ESC Case Size: | 1.54 inches (39 mm) / 2.18 inches (55 mm) / 1.30 inches (33 mm) |
| ESC Weight: | 3.17 ounces (90 g) |
| Motor Connectors: | 3.5 mm bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| ESC Power Wire: | 12 gauge Maxx® Cable |
