TP168

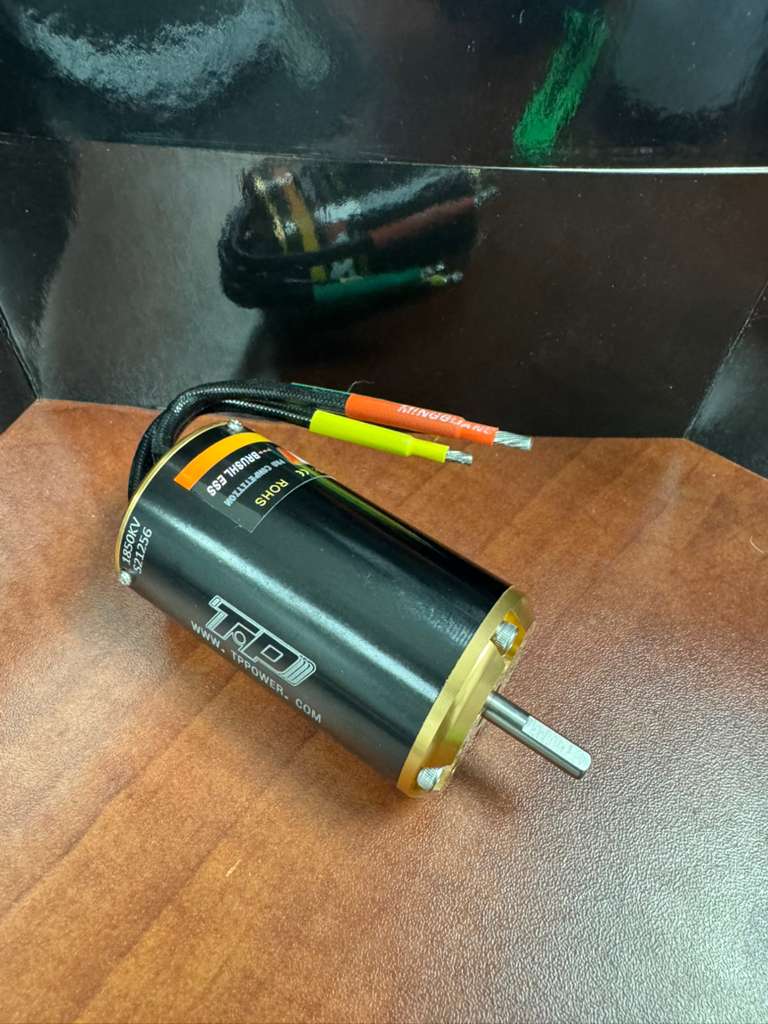

TP Power 4040 CM 1850 kv Brushless Motor 5MM ( up to 12s )
The TP 4040-CM Series is a more powerful version of the regular 4040 series motor, with 95K max burst RPM.
Parameters:
Can: Smooth
Winding: Y
KV: 1850
Max Amps (A): 85
Max Volt (V): 12S
Continuous Power (W): 1650
Max Power (W): 4200 for 10 seconds
Max RPM: 95 K for 10 seconds
Internal Resistance (Ohm): 0.002
No-load Current (A):
Shaft Diameter (mm): 5mm in stock
Diameter X Length (mm): 40 X 74
Output Shaft Length (mm): 18
Bolt Pattern: 4 - M3 - 25mm
Weight: 390 g
Pole: 4-pole
