TP105

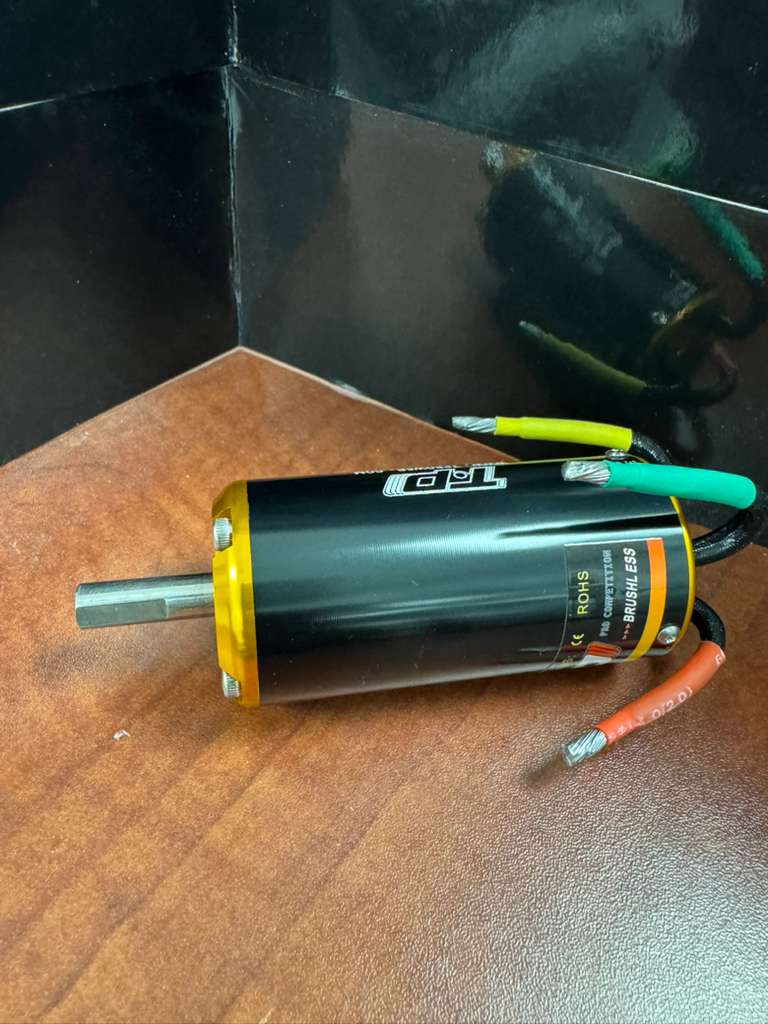

TP POWER 4050 SCM 3190 KV MOTOR ( UP TO 8s )
TP Power motors are made of the best materials that are available, and have high efficiencies (>90%) required for the most demanding applications.The TP 4050-SCM Series is a more powerful version of the regular 4050 series motor, with 110K max burst RPM.
Parameters:
Can: Smooth
Winding: 6D
KV: 3190
Max Amps (A): 145
Max Volt (V): 34.5
Continuous Power (W): 2000
Max Power (W): 5000 for 10 seconds
Max RPM: 110K for 10 seconds
Internal Resistance (Ohm): 0.0042
No-load Current (A): 4.7
Shaft Diameter (mm): 5mm in stock
Diameter X Length (mm): 40 X 82
Output Shaft Length (mm): 18
Bolt Pattern: 4 - (M3) - 25mm (bolt pattern diameter)
Weight: 475 g
Pole: 2-pole
