TP124

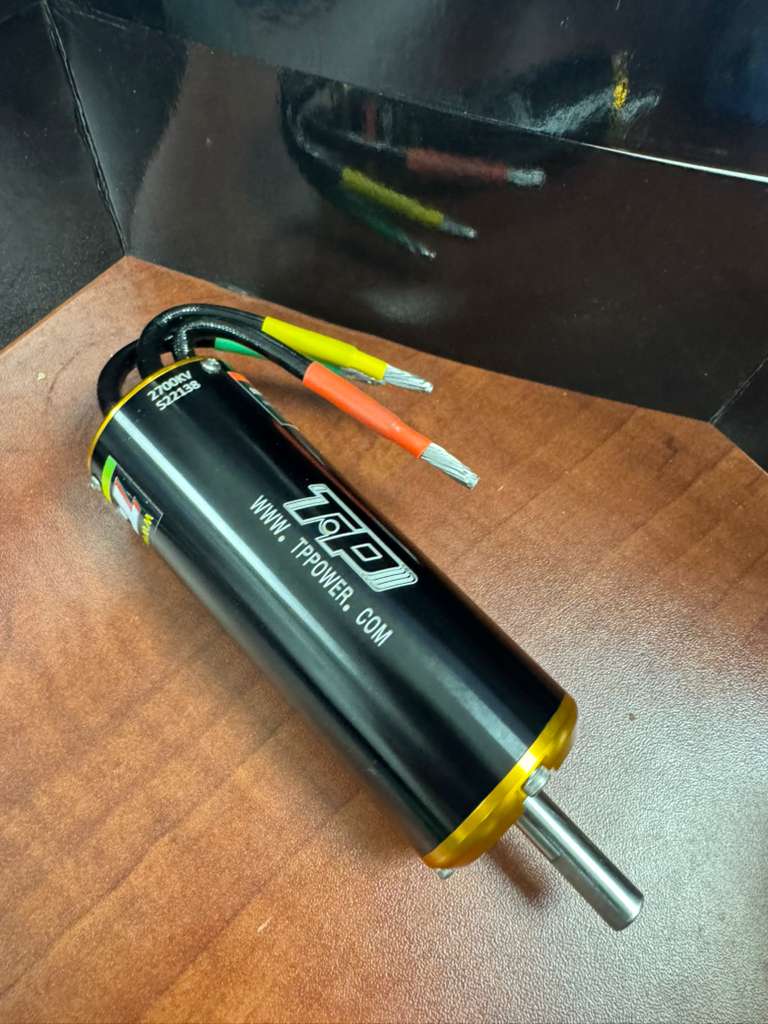

TP Power 4070CM 2700kv Brushless Motor ( up to 6s )
This model is specially winded for 6S application.
TP Power motors are made of the best materials that are available, and have high efficiencies (>90%) required for the most demanding applications.The TP 4070-CM Series is our most powerful 40 series up to date, with 75K max burst RPM.
Parameters:
Can: Smooth
T: 5D
KV: 2700
Max Amps (A): 321
Max Volt (V): 28
Continuous Power (W): 5000
Max Power (W): 9000 for 10 seconds
Max RPM: 75 K for 10 seconds
Internal Resistance (Ohm): 0.021
No-load Current (A): 10.9 at 7.5V
Shaft Diameter (mm): 5 or 8
Diameter X Length (mm): 40 X 107
Output Shaft Length (mm): 18
Bolt Pattern: 4 - M4 - 25mm
Weight: 640 g
Pole: 4-pole
