TP156

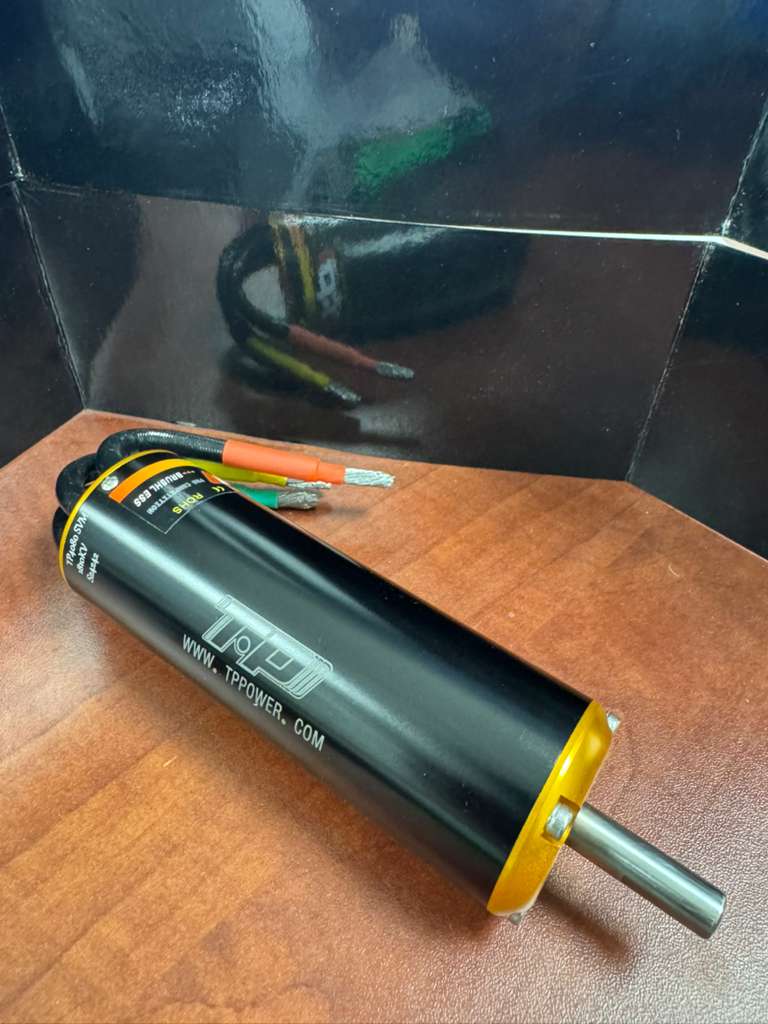

TP POWER 4080 SVM 1810 kv 10s BRUSHLESS MOTOR
(Only SEAL end cap version is avialable for this model )
KV: 1812
Winding: D
Max Current (A): 302
Max Voltage (V): 37
Continuous Power (W): 6200
Max Power (W) - Less than 10 seconds for safety: 11200
Max RPM - Less than 10 seconds for safety: 68K
No-load current (A): 5.3
Internal Resistance (Ohm): 0.002517
Weight (g): 700
Shaft diameter: 8mm
Output Shaft Length: 24mm
Diameter x length (mm): 40 x 117
Bolt pattern: 4-M4-25 and 4-M3-25 on the same plate to offer two
