Tp149

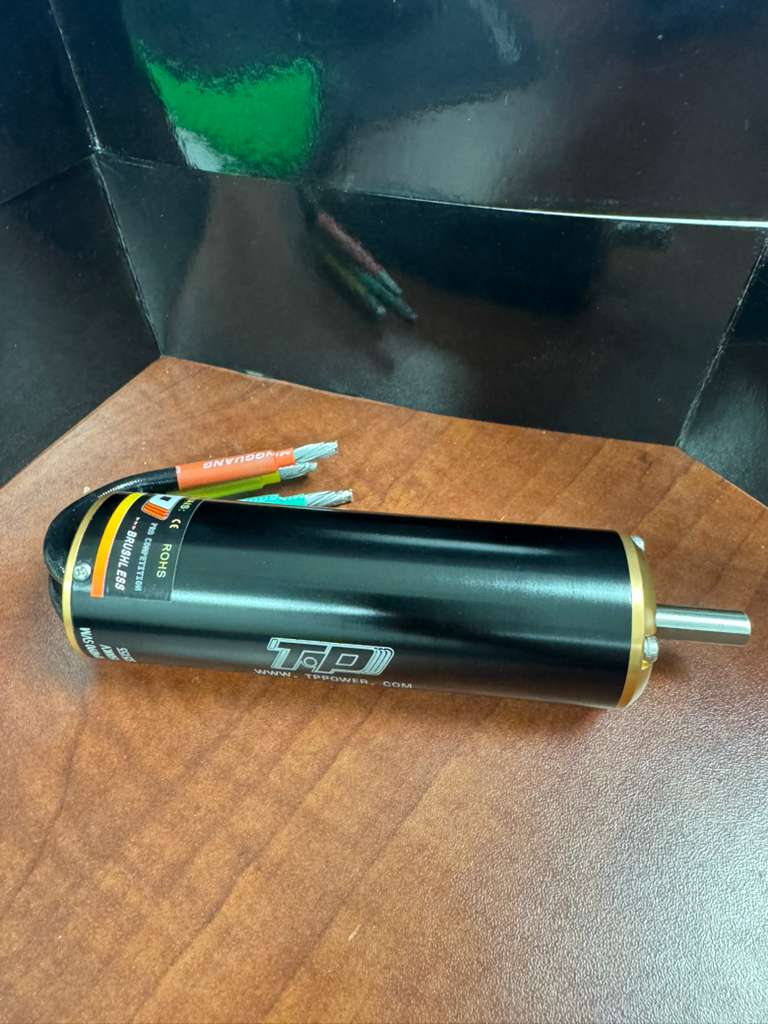

TP POWER USA 4090SVM 1580KV BRUSHLESS MOTORS 8MM SHAFT
TP4090-SVM Series are the new competition 4-pole motor with more torque and power under high RPM design at the same time. It has highest power of 13300 W and highest RPM of 55K!
Parameters:
Can: Smooth
Wind: D
KV: 1580
Max Amps (A): 392
Max Volt (V): 8S
Continuous Power (W): 7200
Max Power (W): 13300
Max RPM: 55K
Internal Resistance (Ohm): 0.0028
No-load Current (A): 5.2
Shaft Diameter (mm): 8
Shaft Length (mm): 24
Diameter X Length (mm): 40X127
Mounting Pattern: 4 sets of M3 & M4 screw holes on the same front plate; with 25mm diagonal distance.
Weight: 850g
