93164-4-WHT
MODEL SPECS
| Model Name: | Toyota GR Supra GT4 |
|---|---|
| Model Type: | On-Road Cars |
| Top Speed: | 35+ mph |
| Skill Level: | 1 |
| Scale: | 1/10 |
| Length: | 19.3 inches (490 mm) |
| Width: | 8.6 inches (219 mm) |
| Height: | 5.6 inches (141 mm) |
| Weight: | 3.92 lbs (1.78 kg) |
| Front Track: | 8.0 inches (204 mm) |
| Rear Track: | 8.0 inches (204 mm) |
MOTOR SPECS
| Motor Name: | BL-2s 3300 kV |
|---|---|
| Motor Type: | Sensorless brushless |
| Motor Weight: | 7.51 ounces (213 g) |
| Motor Length: | 3.15 inches (80 mm) |
| Motor Diameter: | 1.42 inches (36 mm) |
| Motor Shaft Size: | 3 mm |
| Motor Connector Type: | Traxxas Quick Connect Motor Plug |
ESC SPECS
| ESC Name: | BL-2s Electronic Speed Control |
|---|---|
| ESC Type: | Brushless |
| ESC Case Size: | 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm) |
| ESC Weight: | 3.07 ounces (87 g) |
| Motor Connectors: | Traxxas Quick Connect Motor Plug |
| Battery Connectors: |
Traxxas High Current Connector |
- Available for purchase and resale only in the US (excluding HI), Mexico, Puerto Rico, and U.S. Virgin Islands

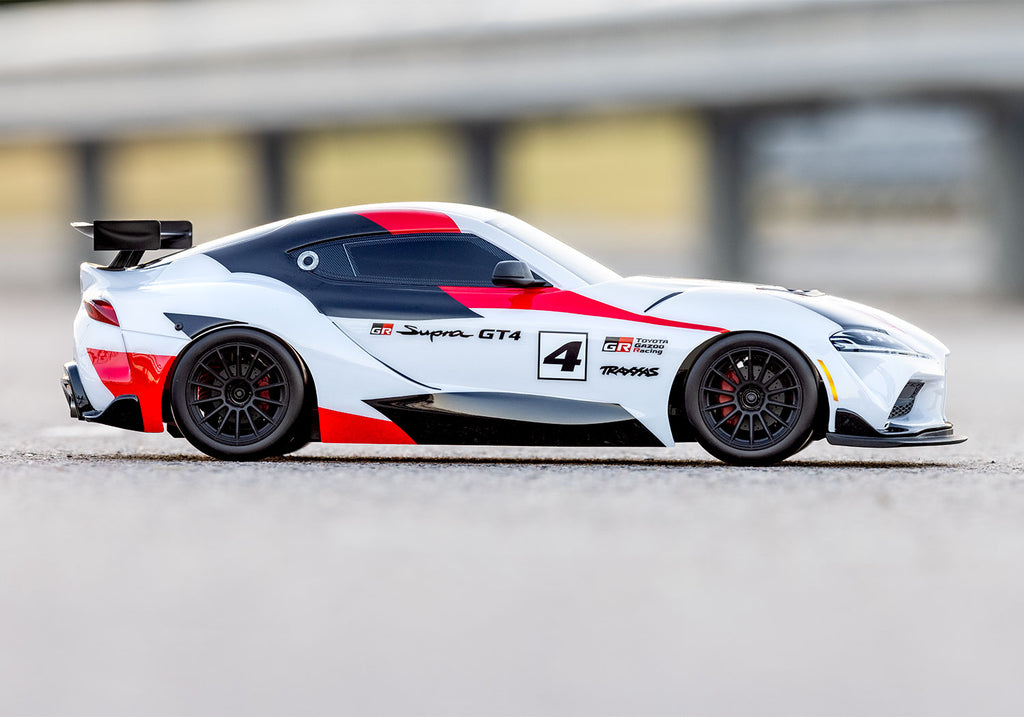

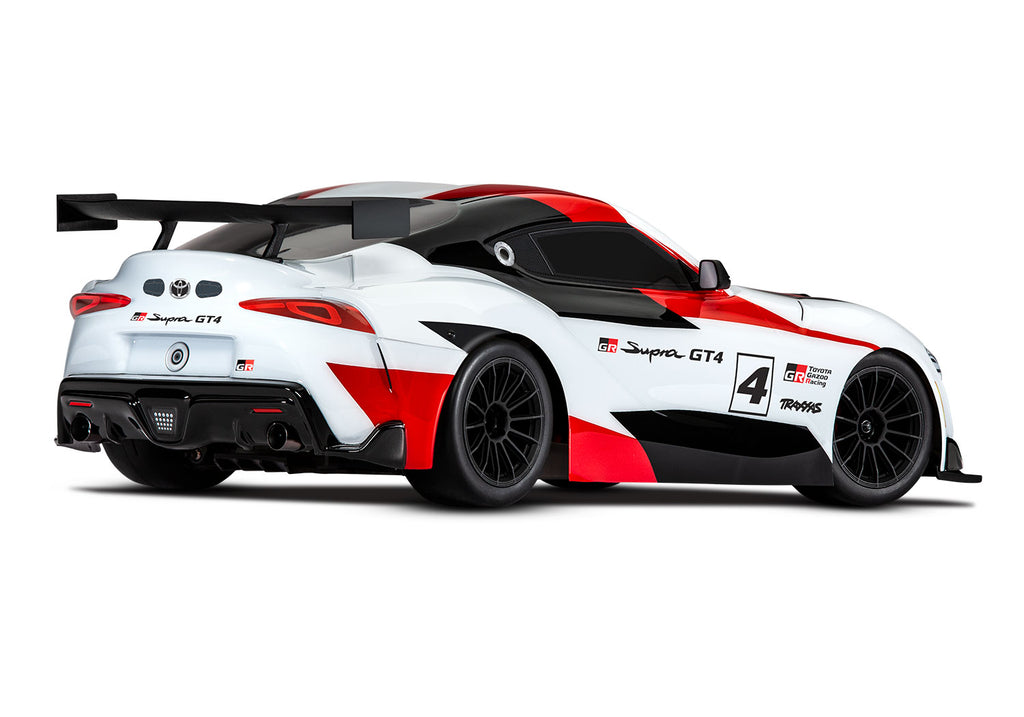

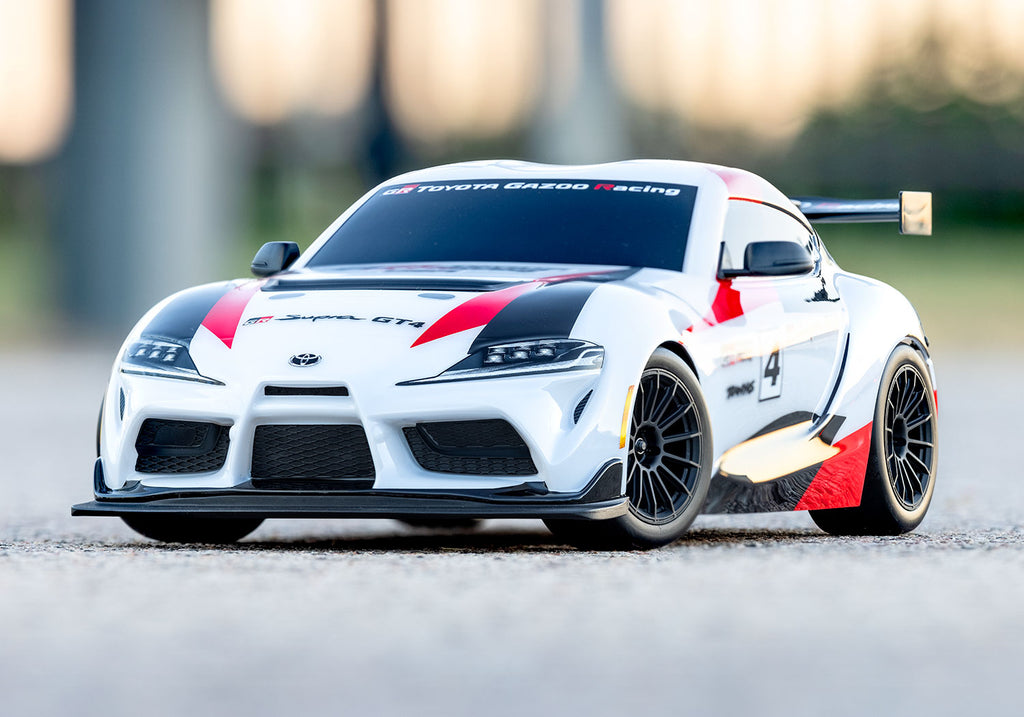

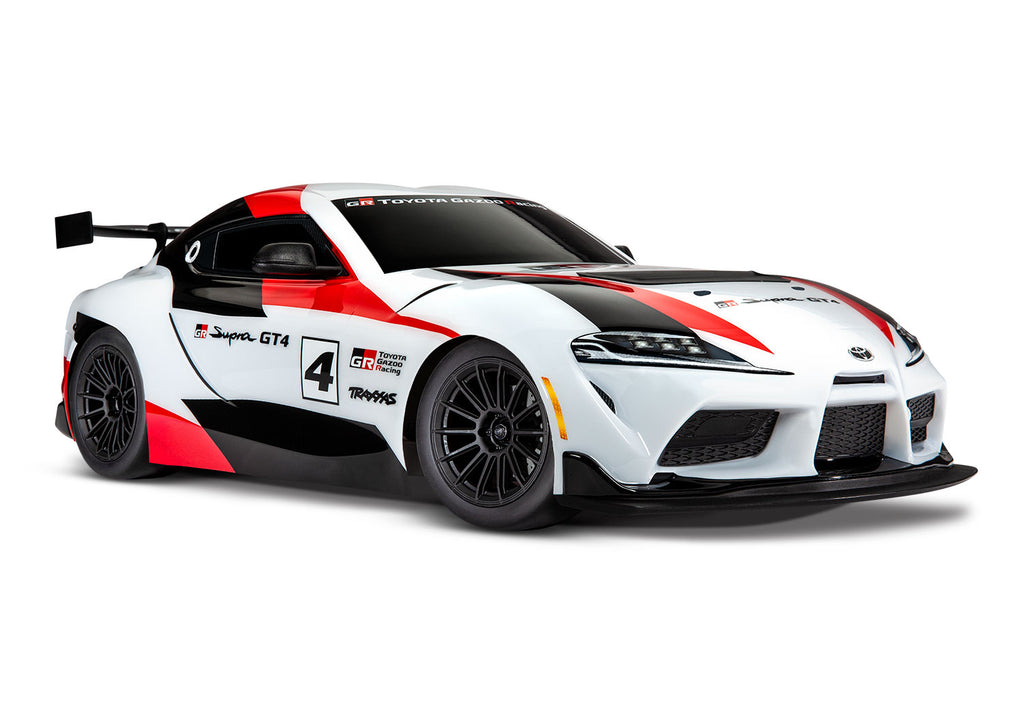

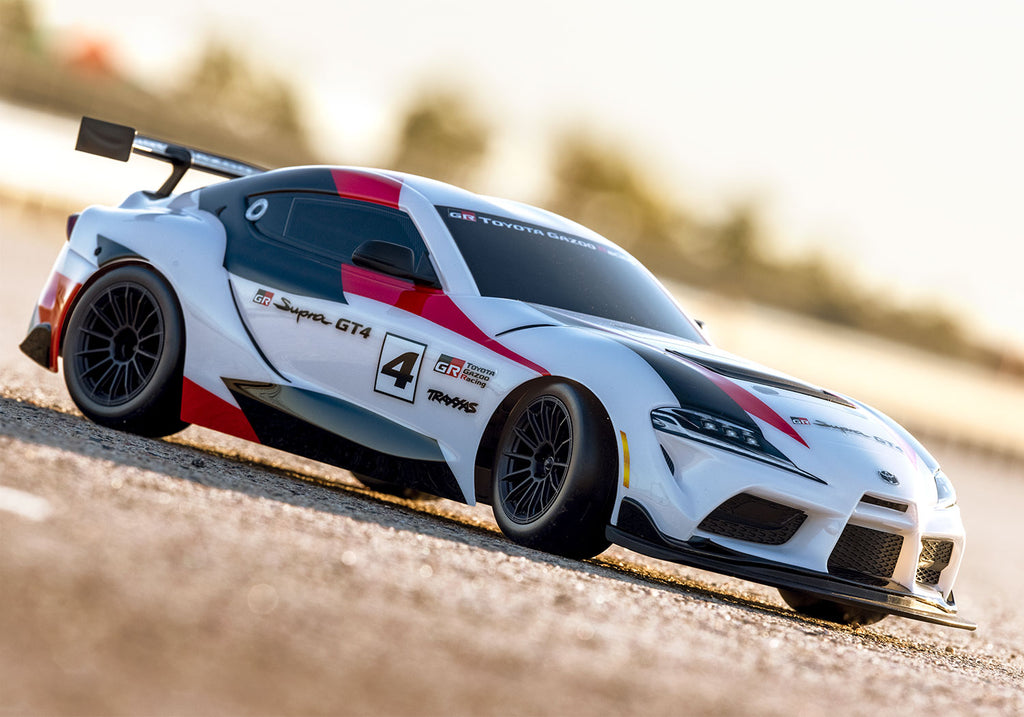

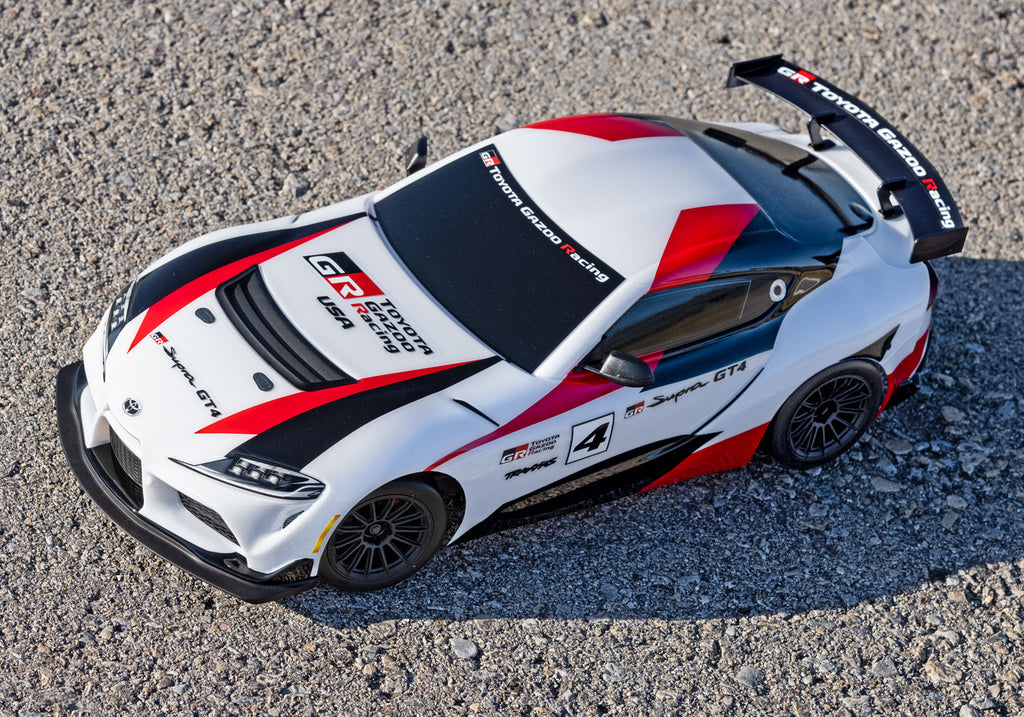

- Officially Licensed Toyota GR Supra GT4 Body
- Clipless body eliminates body post holes
- Injection molded details

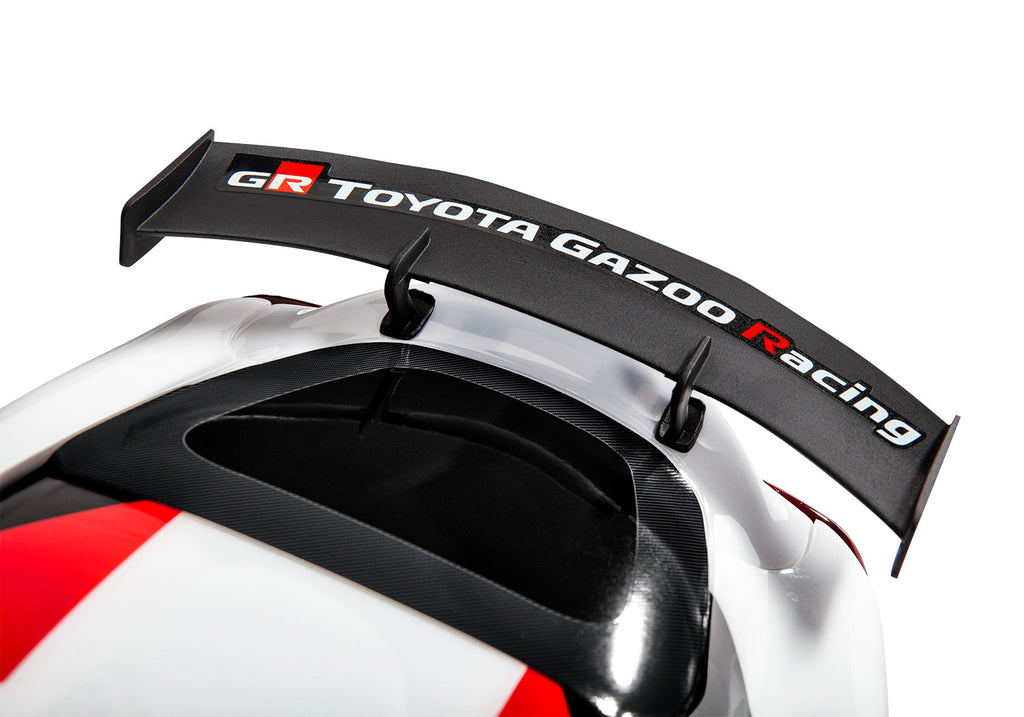

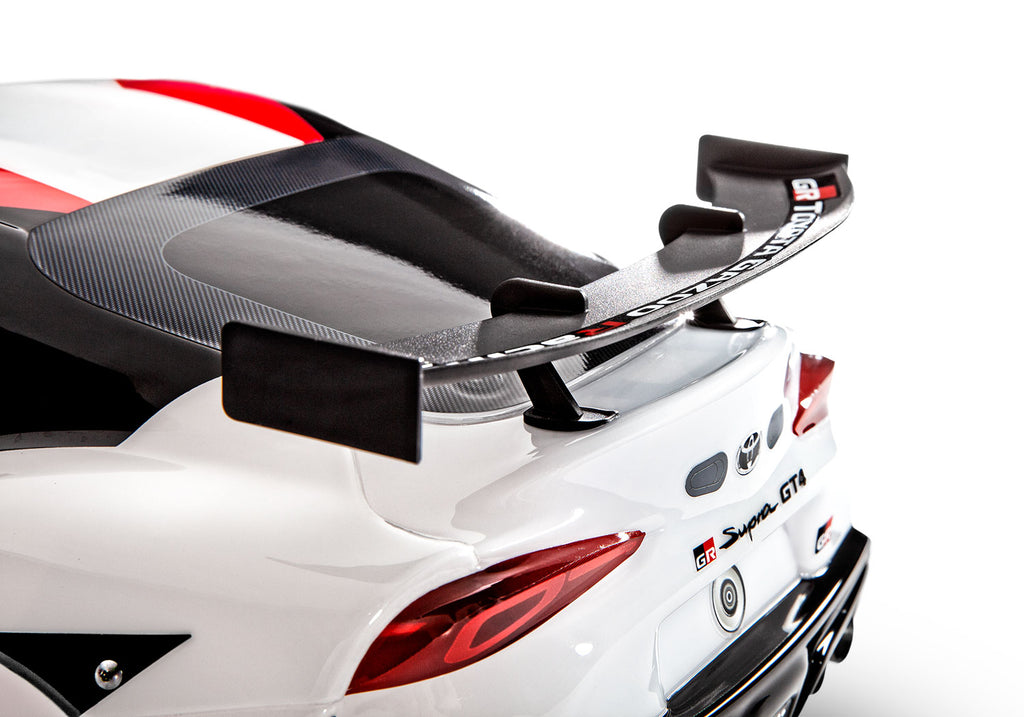

- Grilles, hood vent, side mirrors, exhaust tips, and wing
- Replica black multi-spoke wheels with lug nut detail
- Replica brake discs with red calipers

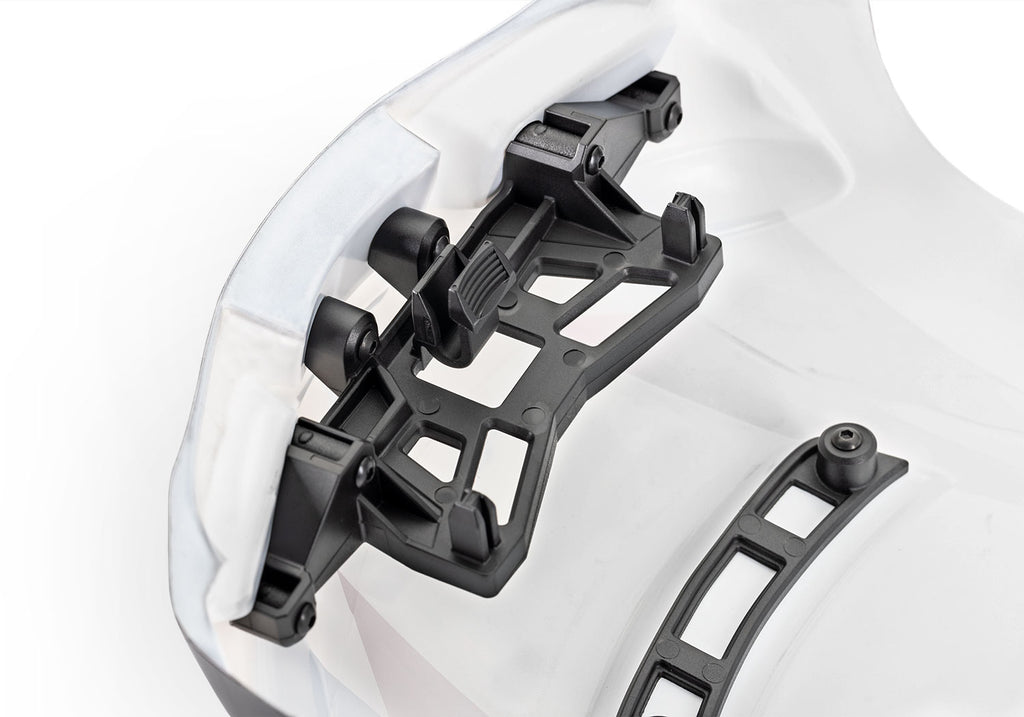

- Clipless Body Mounts
- Easy removal of the body

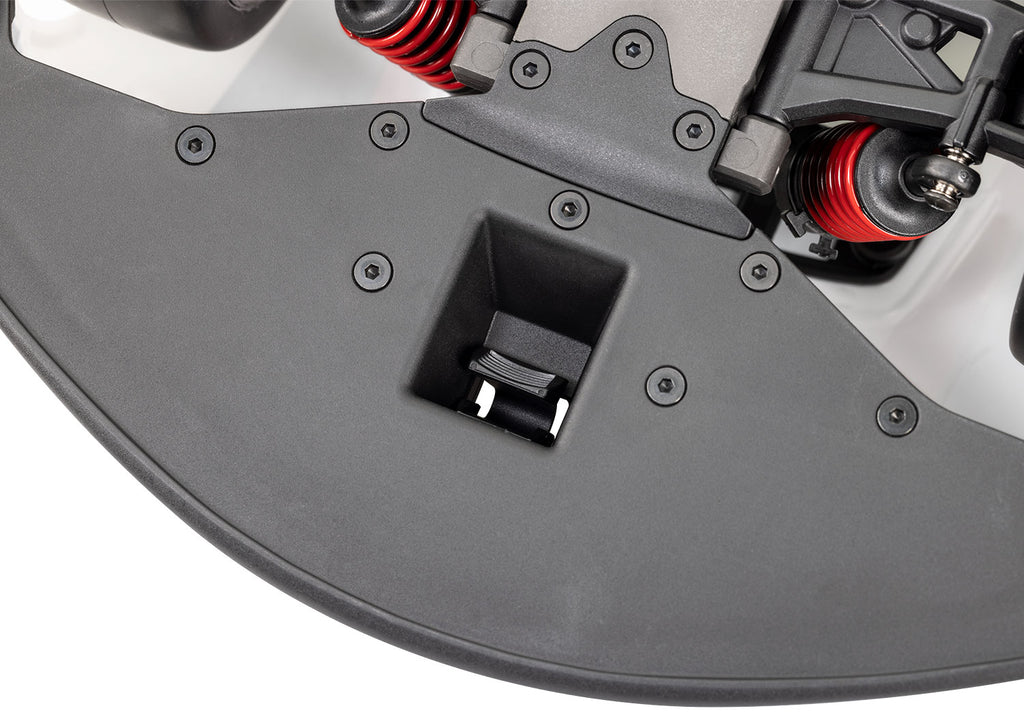

- Front bumper/splitter incorporates the front body mount

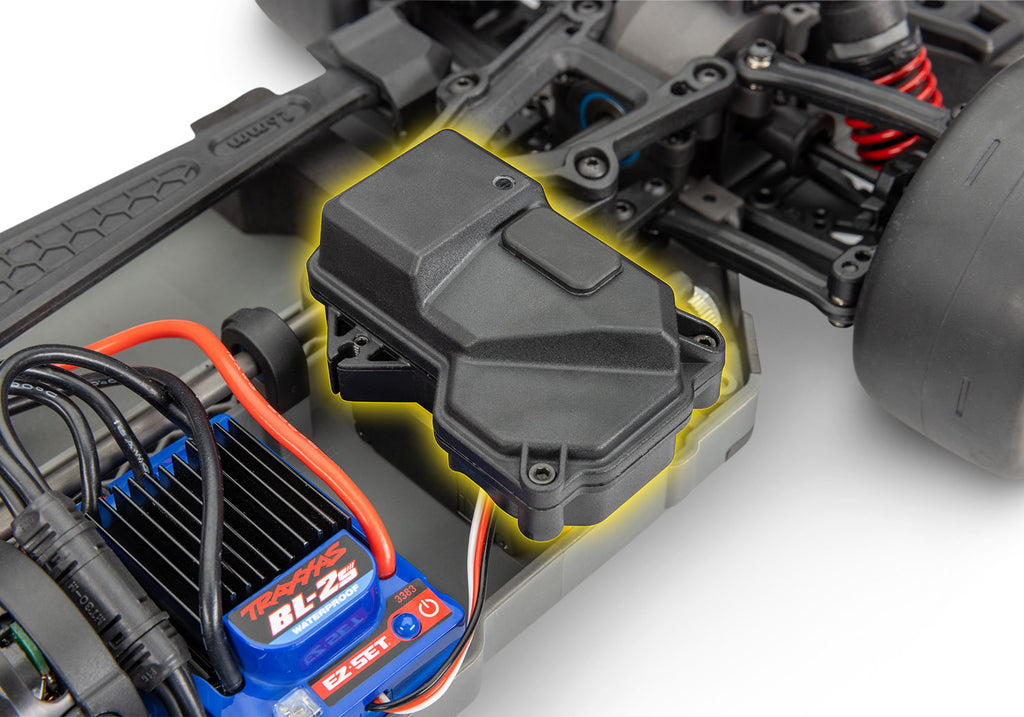

- BL-2s™ Waterproof Electronic Speed Control
- Heat sink accepts accessory cooling fan (3340)
- Three Programmable Drive Profiles
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set® one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
- LiPo battery packs: 2 cells (7.4 volts)
- 3300 Kv Brushless Motor
- Integrated cooling fan
- Low-maintenance design
- Efficient ball bearings
- Steering
- High-torque waterproof Traxxas 2075 servo

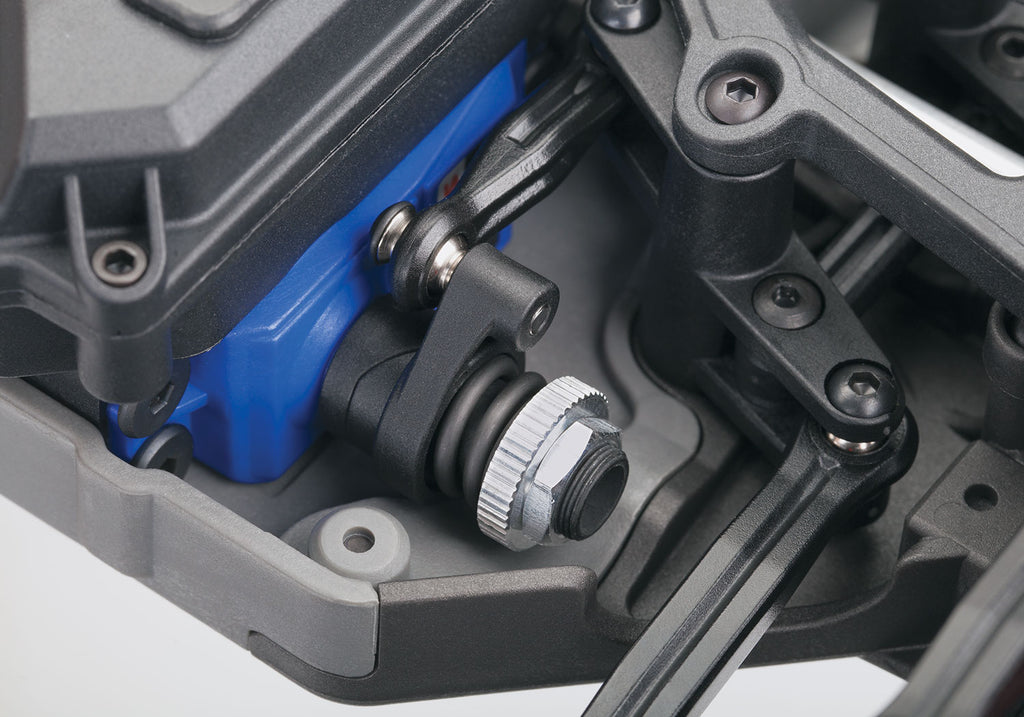

- Precise servo saver integrated into servo horn
- High steering angle option

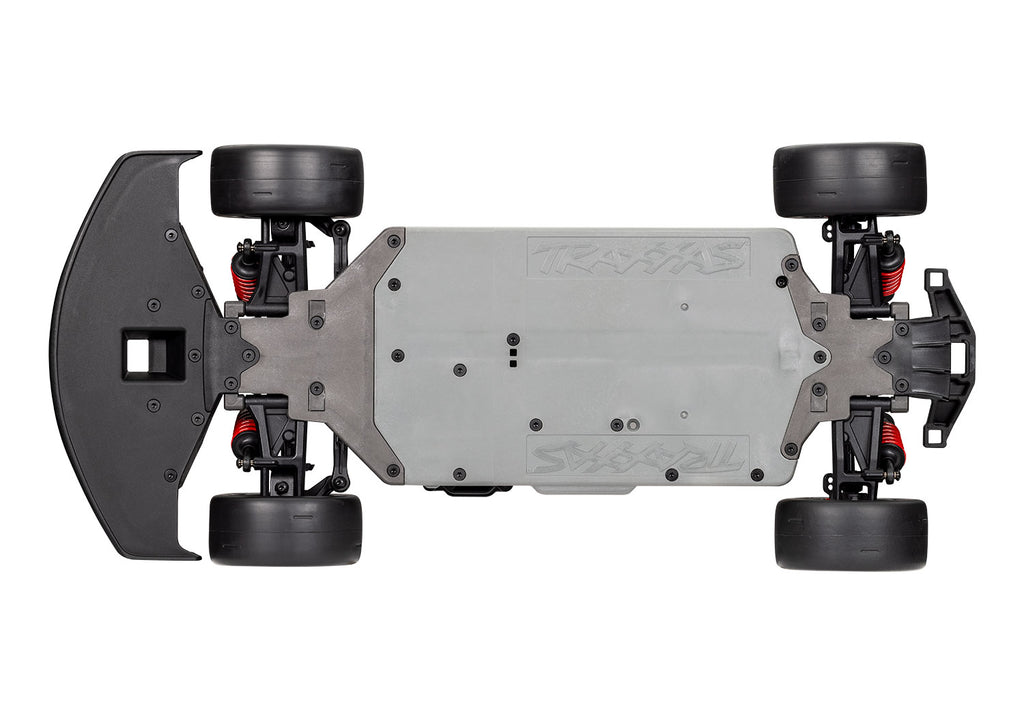

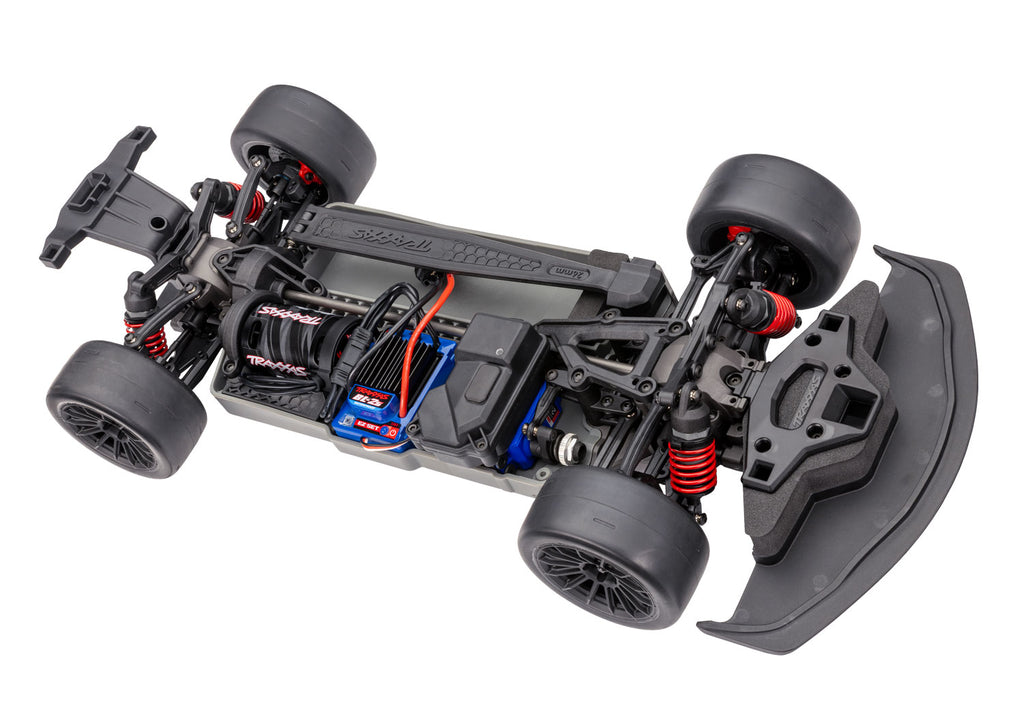

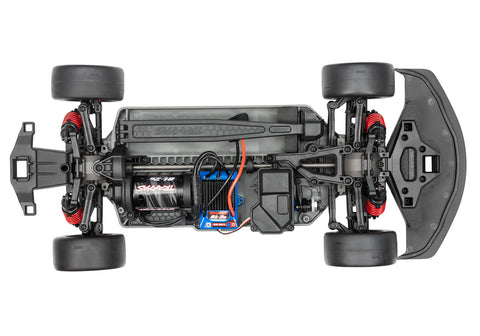

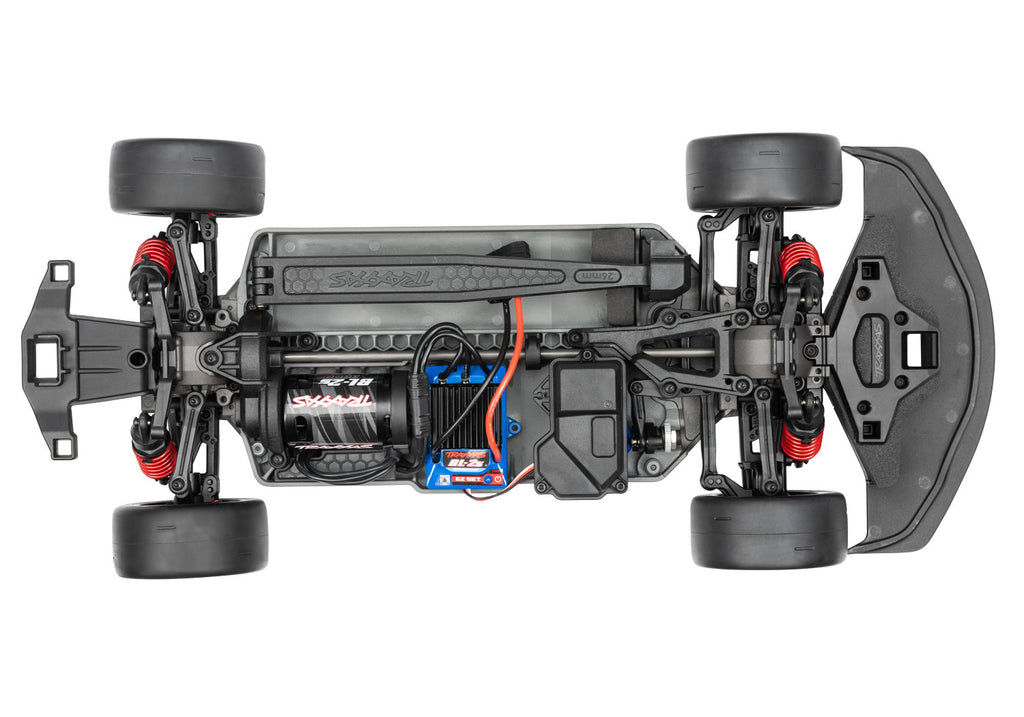

- Low Center of Gravity (Low CG) Chassis
- Positions weight low for improved handling

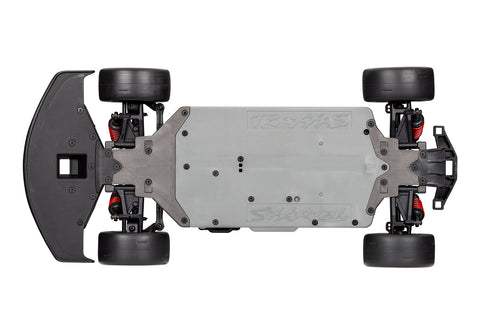

- Smooth underside resists drag and snags
- Angled front bumper improves approach angle
- Modular interlocking chassis pieces
- Improves rigidity and tightens tolerances
- Allows for easy maintenance
- High Performance Suspension
- Captured links won’t pop off
- Geometry tuned for precise handling

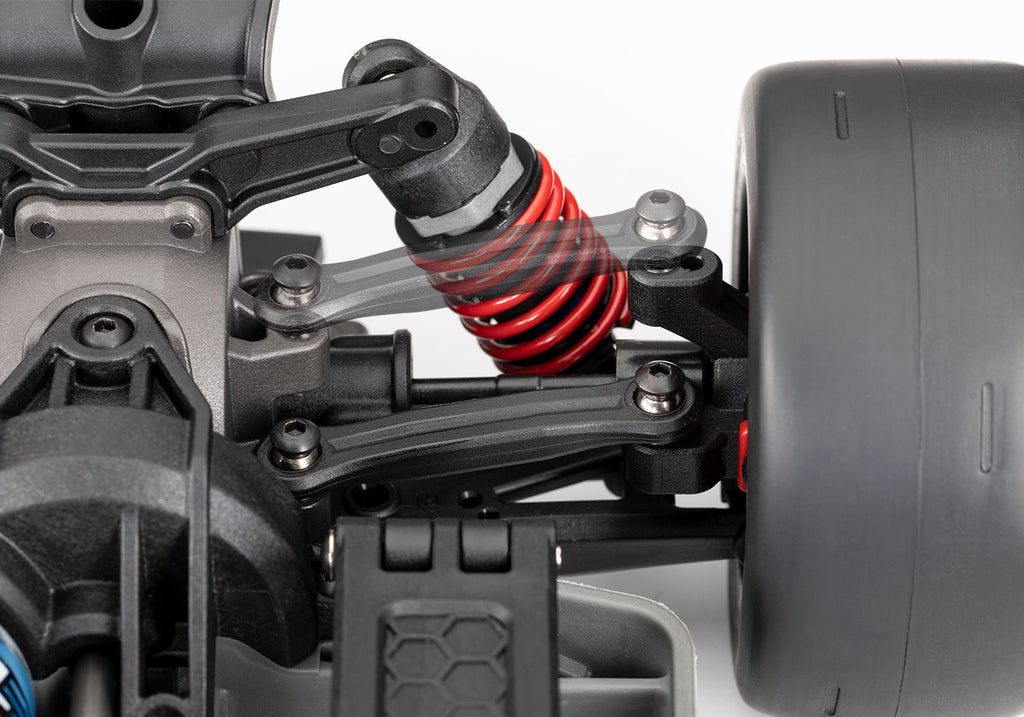

- Dual rear camber link mounts

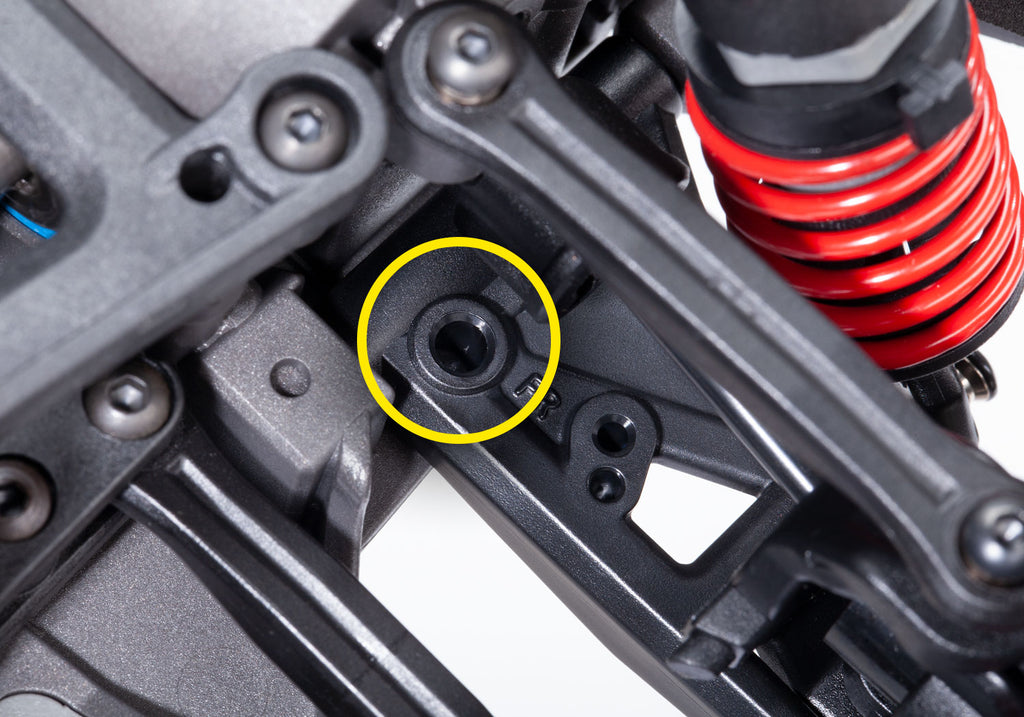

- Adjustable droop
- Adjustable Battery Hold Down
- Easy, secure battery installation
- Swivels to allow different height batteries
- Locks securely without pins or parts to lose

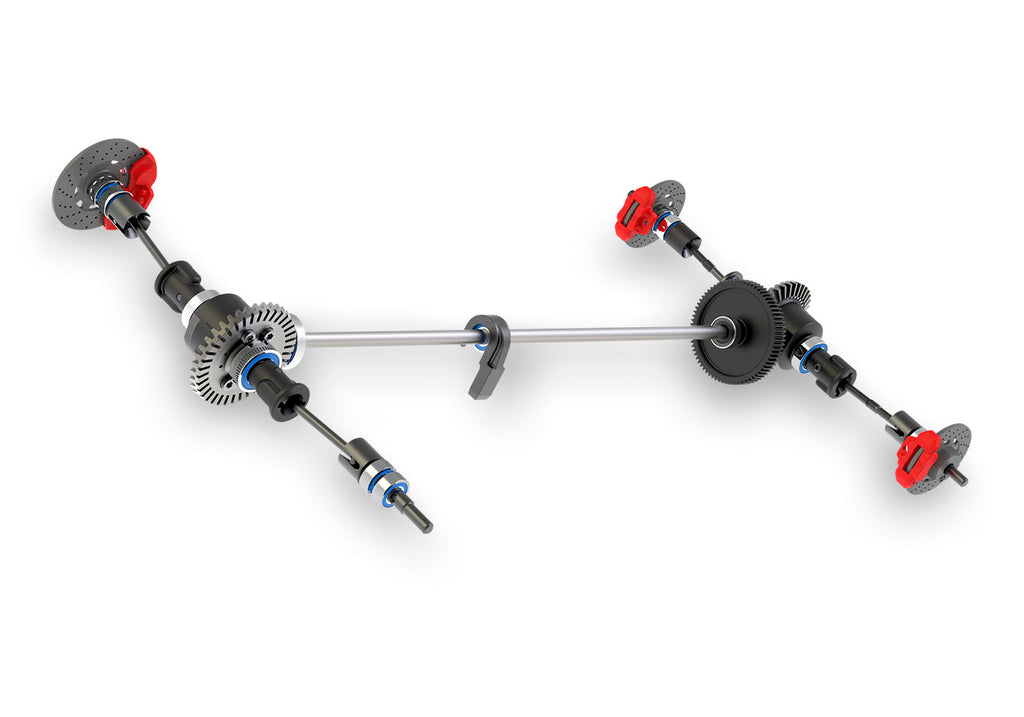

- Efficient Direct All-Wheel Drive
- Full-time shaft driven 4-wheel drive

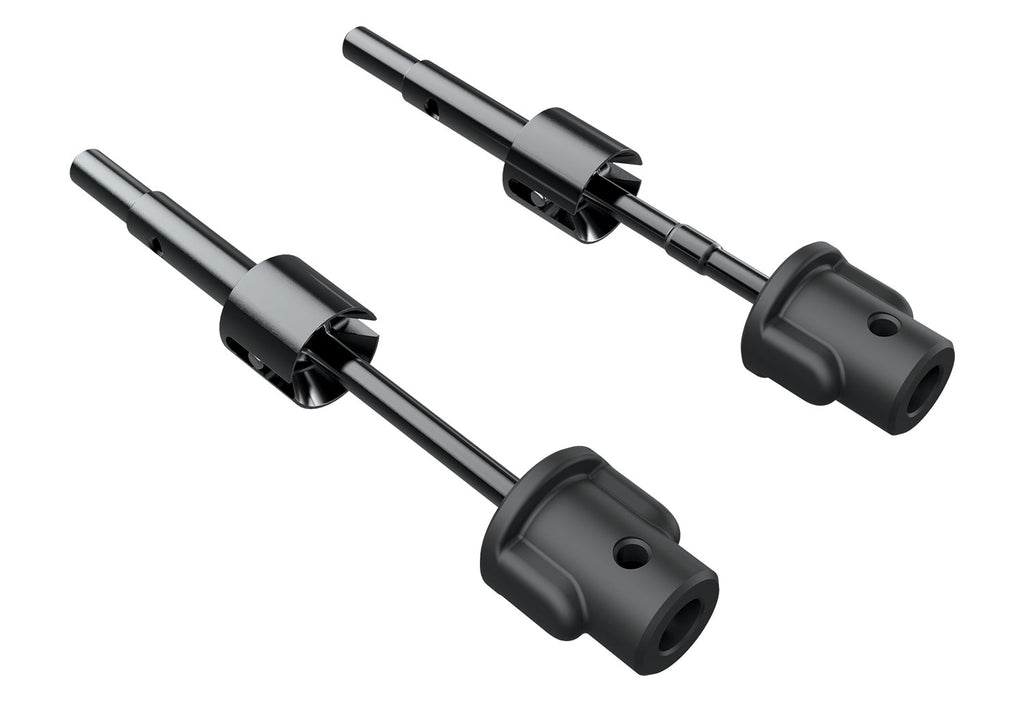

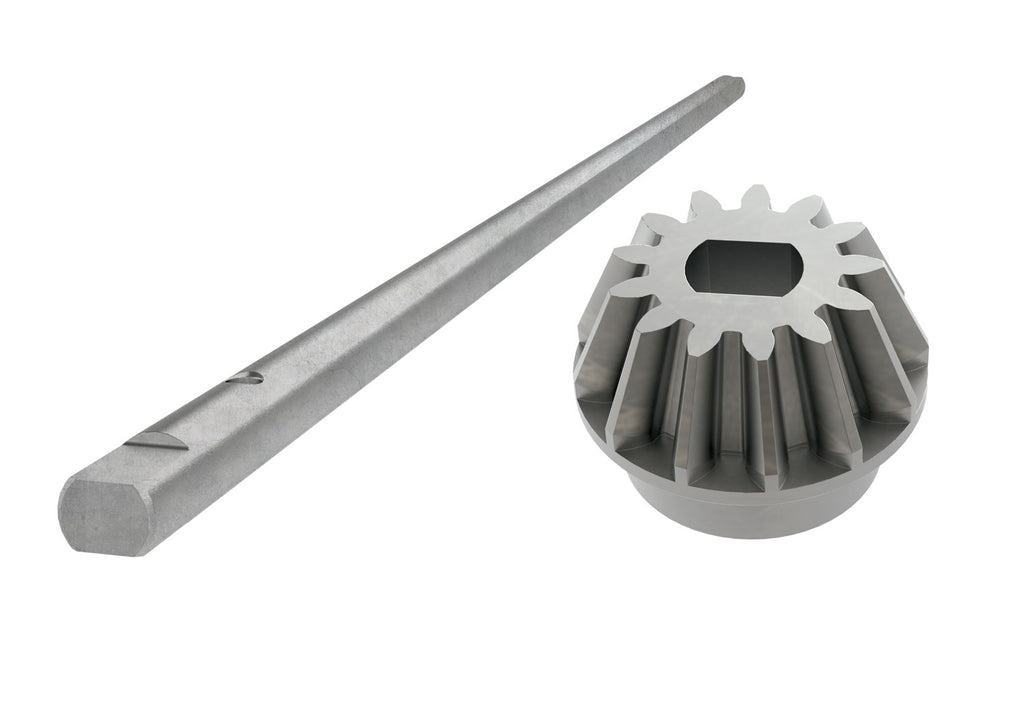

- Steel center driveshaft with center bearing support
- Direct drive

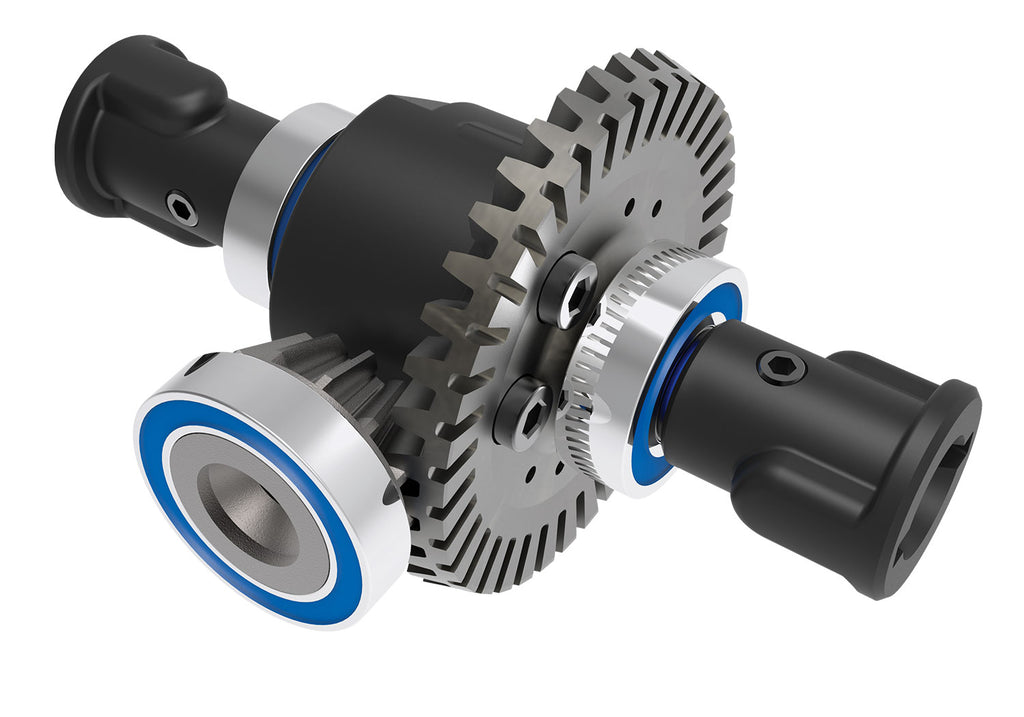

- Sealed, silicone-filled differential
- Brushless ready for easy Velineon brushless power upgrade

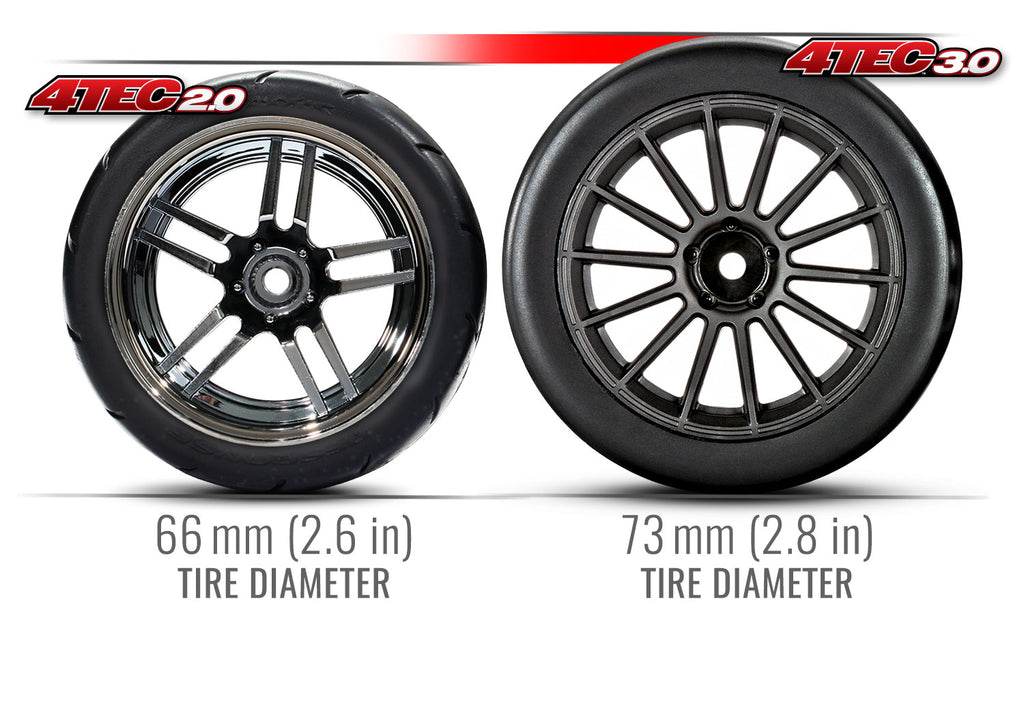

- Wheels and Tires
- Replica Toyota GR Supra GT4 black multi-spoke wheels

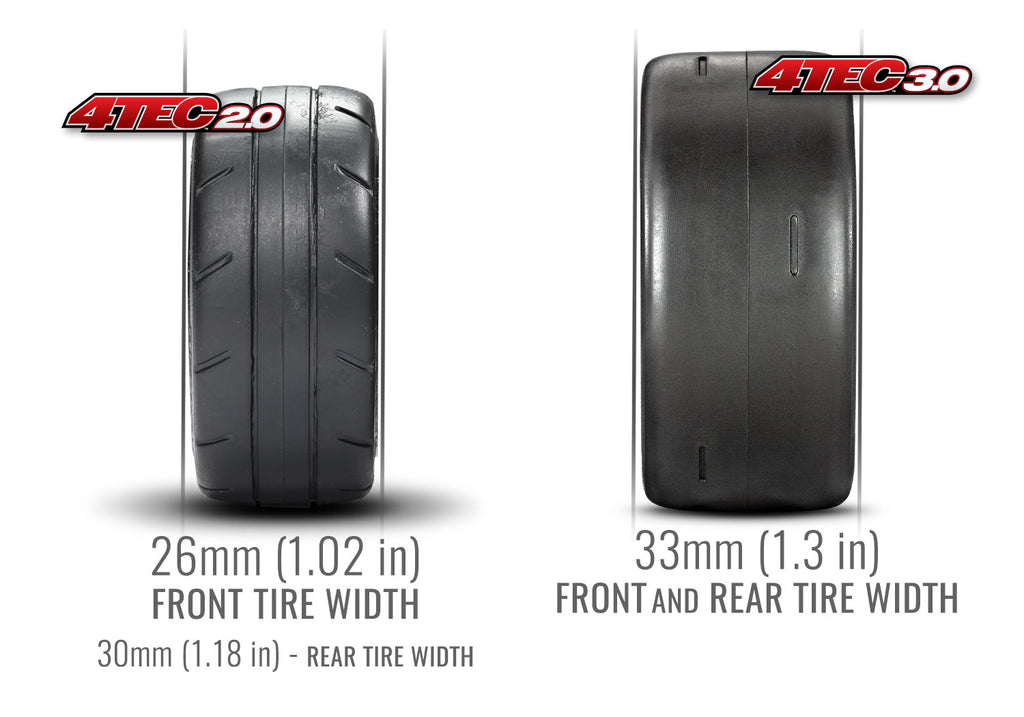

- High-performance racing slicks with long-wearing compound
- Ultra-wide racing slicks provide ultimate traction

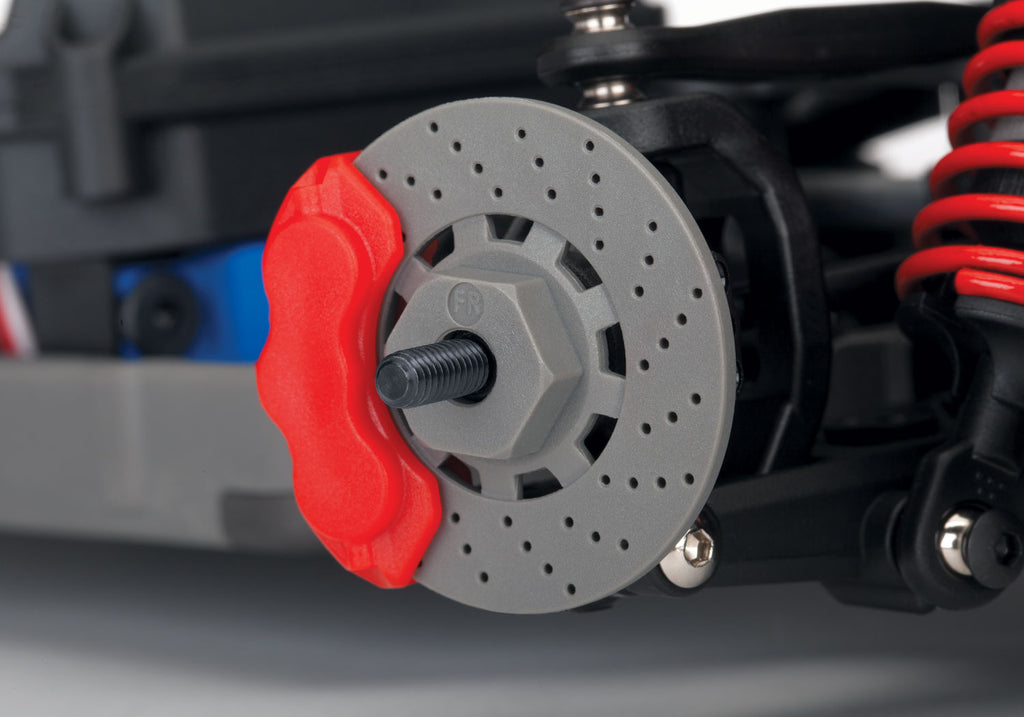

- Replica brake discs incorporate standard 12mm wheel hexes
- Brake calipers can be mounted in forward or trailing edge positions

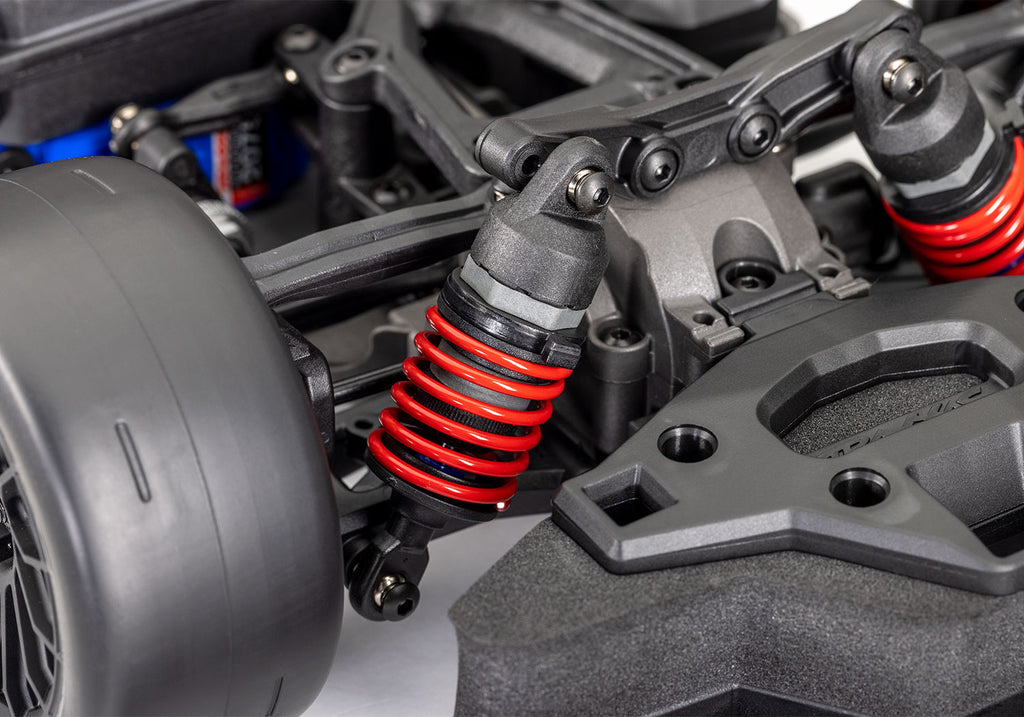

- Springs and Shocks

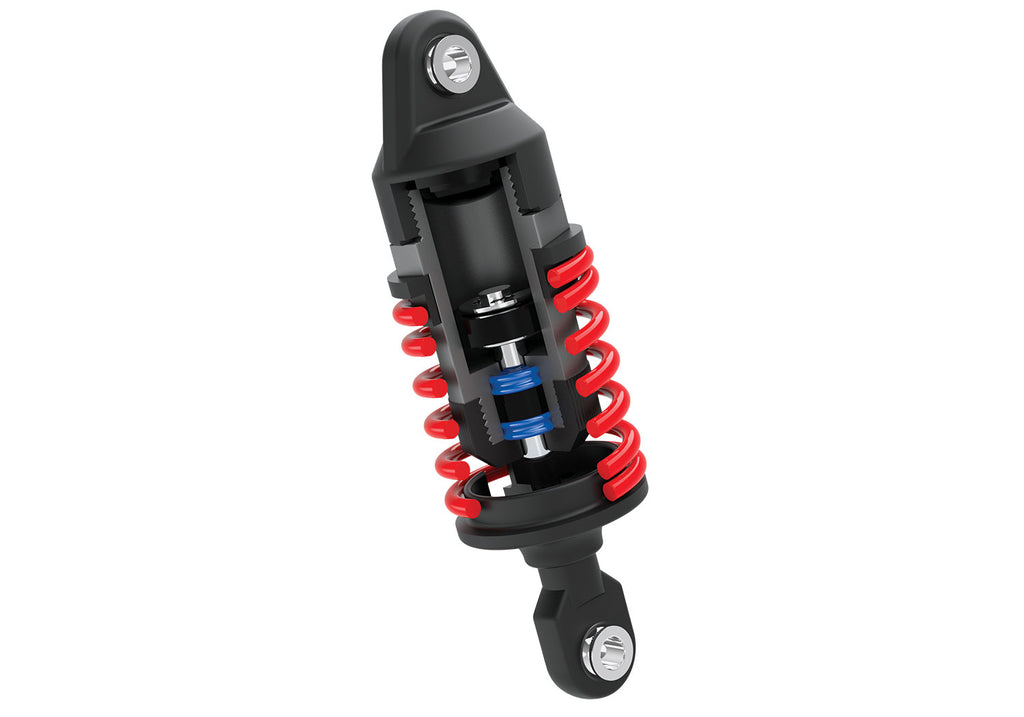

- Fully adjustable oil-filled Ultra Shocks™ with X-ring technology
- Red powder coated shock springs feature a responsive spring rate
- Rubber-Sealed Ball Bearings
- Requires Traxxas 7-Cell NiMH “flat pack” or 2-Cell LiPo Battery and Charger (Sold Separately)

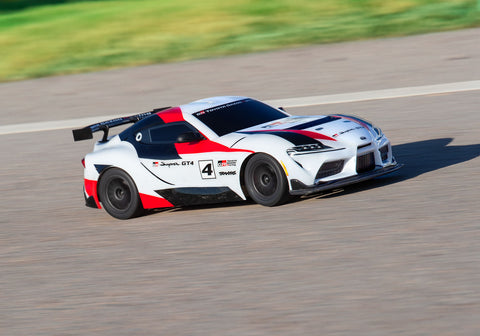

MODEL 93164: 4-Tec® Toyota GR Supra GT4: fully assembled, Ready-To-Race®, with TQ™ 2.4 GHz radio system, BL-2s™ Brushless Power System, and clipless pre-painted replica body.
What’s In The Box:
- Traxxas GR Supra GT4, Ready-To-Race Model
- TQ 2.4 GHz Radio System
- Quick Start Guide
- High Quality Maintenance Tools
What You’ll Need:
- Battery Pack
GR Supra GT4 requires the use of a 7-Cell NiMH “flat pack” or 2-Cell LiPo Battery equipped with a Traxxas High Current Connector
- Charger
Traxxas EZ-Peak® Plus (model 2970) recommended
- Alkaline Batteries
Four AA alkaline batteries for the transmitter
