107154-1-ORNG
-
-
-
MODEL SPECS
Model Name: Mini Maxx Model Type: Monster Truck Top Speed: 30+ Skill Level: 1 Scale: Mini Length: 13.58 inches (345 mm) Width: 9.94 inches (253 mm) Height: 5.39 inches (137 mm) Weight: 3.62 pounds (1.64 kg) Front Track: 9.94 inches (253 mm) Rear Track: 9.94 inches (253 mm) MOTOR SPECS
Motor Type: BL-2s 3300 Kv sensorless brushless motor Weight: 7.51 ounces (213 g) Length: 3.15 inches (80 mm) Diameter: 1.42 inches (36 mm) Shaft Size: 3 mm Connector Type: Traxxas Quick Connect Motor Plug ESC SPECS
ESC Name: BL-2s Electronic Speed Control ESC Type: Brushless ESC Case Size: 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm) ESC Weight: 3.07 ounces (87 g) BEC Voltage: 6 volts Thermal Protection: Two-stage thermal shutdown Ports: Auxiliary fan Battery Connector: Traxxas High-Current Connector
- 30+ mph Top Speed
- BL-2s™ Waterproof Electronic Speed Control
- Heat sink accepts accessory cooling fan (3340)
- Three programmable drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse
- Traxxas EZ-Set® one-button setup
- Built-in two-stage low-voltage detection

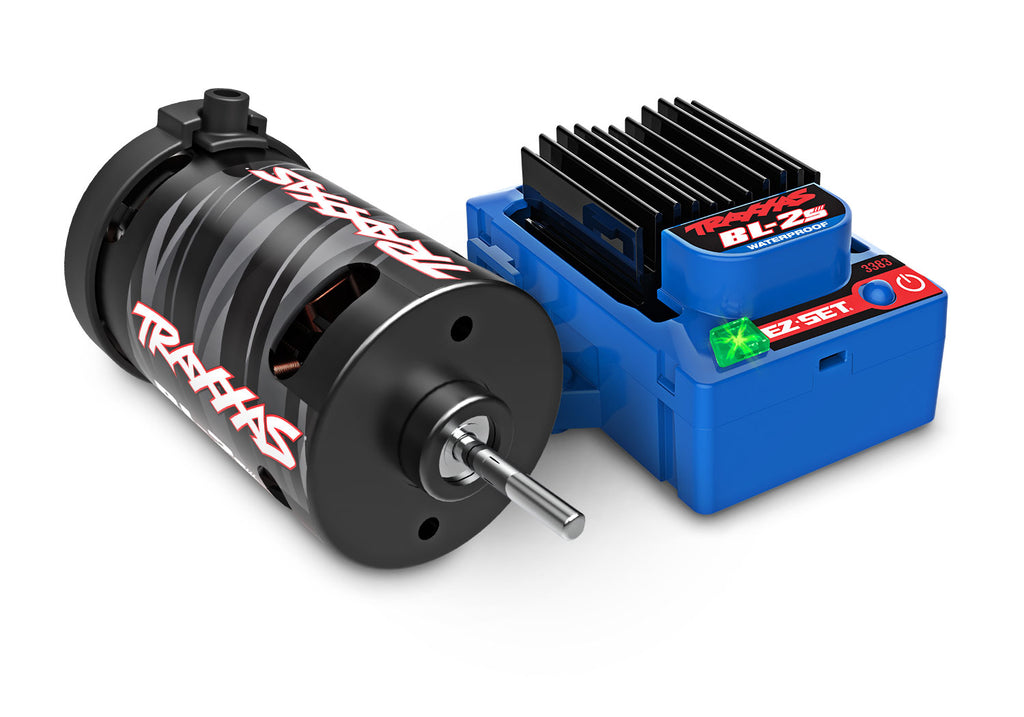

- BL-2s™ Brushless Motor
- Integrated cooling fan
- Low-maintenance design
- Efficient ball bearings
- 3300 Kv

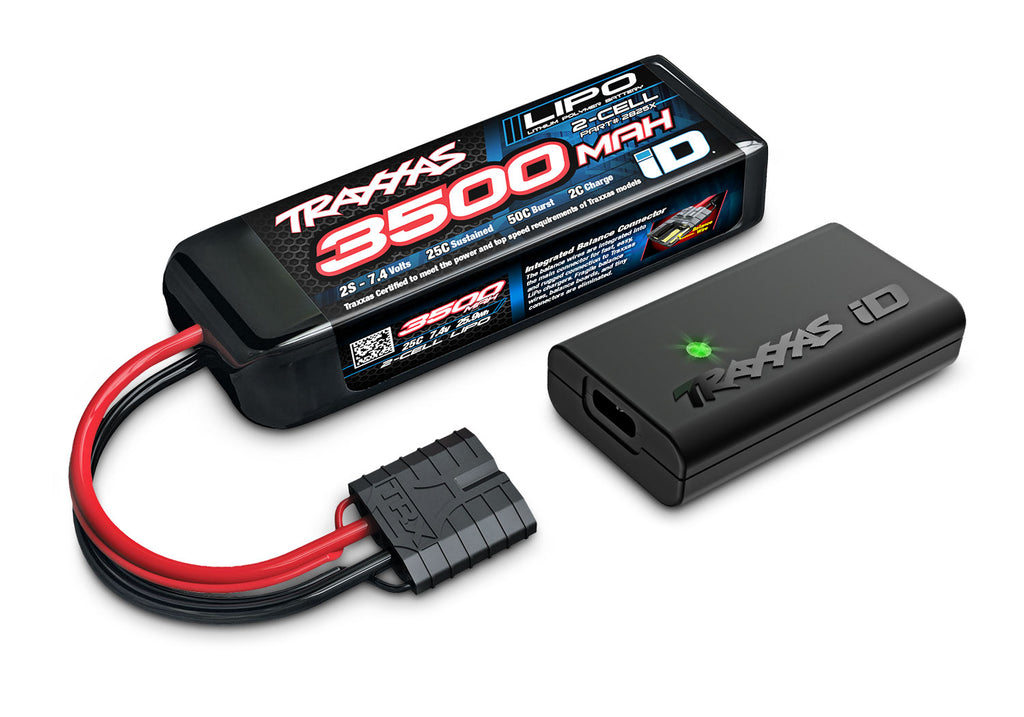

- Battery and Charger Included
- High-capacity 2-cell LiPo battery
- 7.4 volts
- 3500 mAh for extended run time
- 2-amp USB-C charger
- iD® technology for faster, safer charging
- TQ™ 2.4 GHz Transmitter
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control

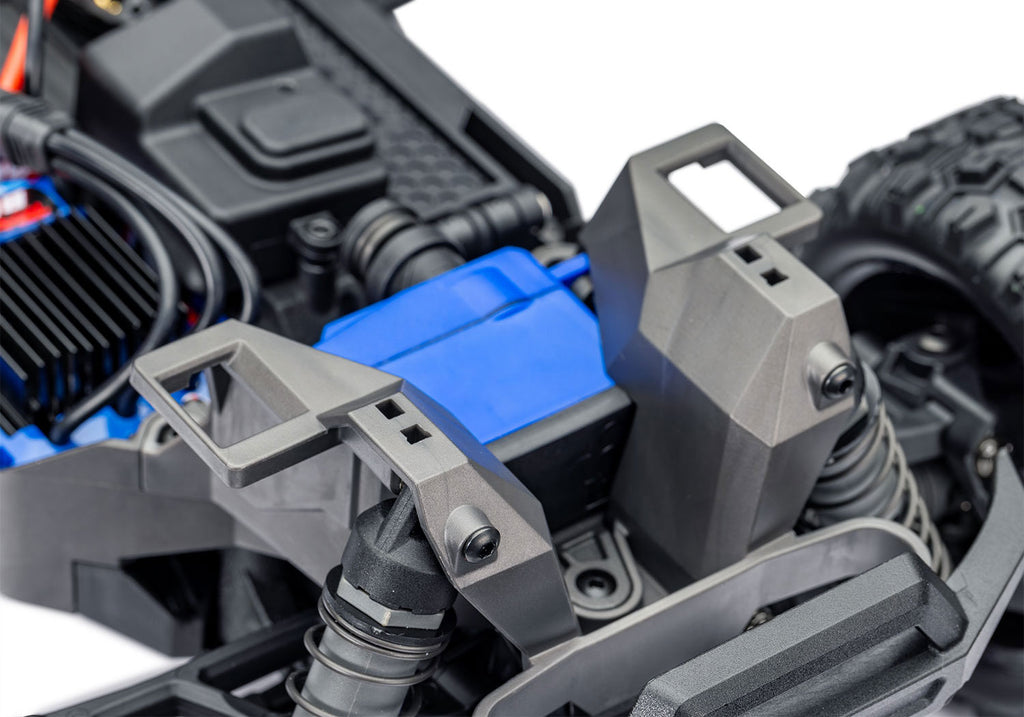

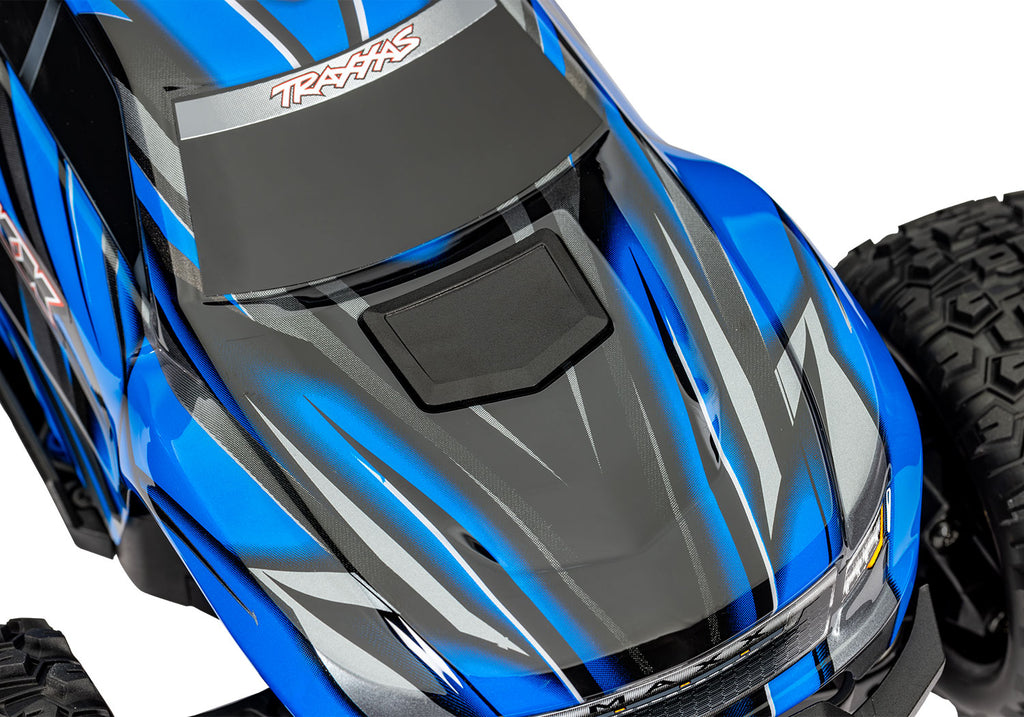

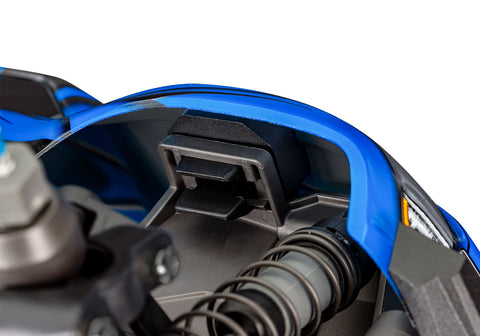

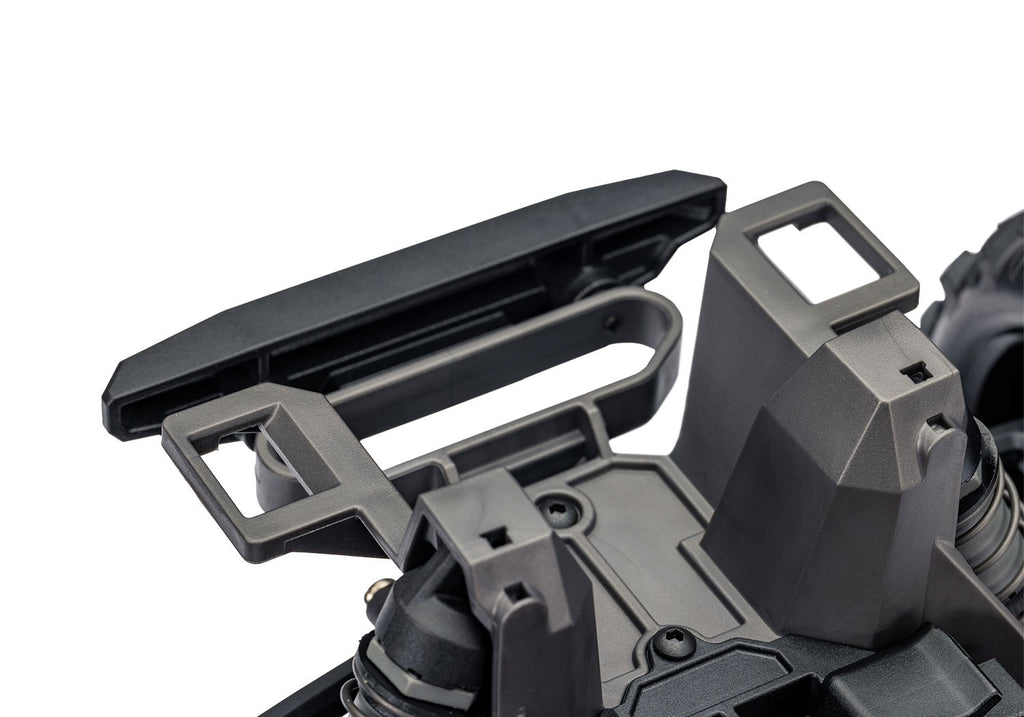

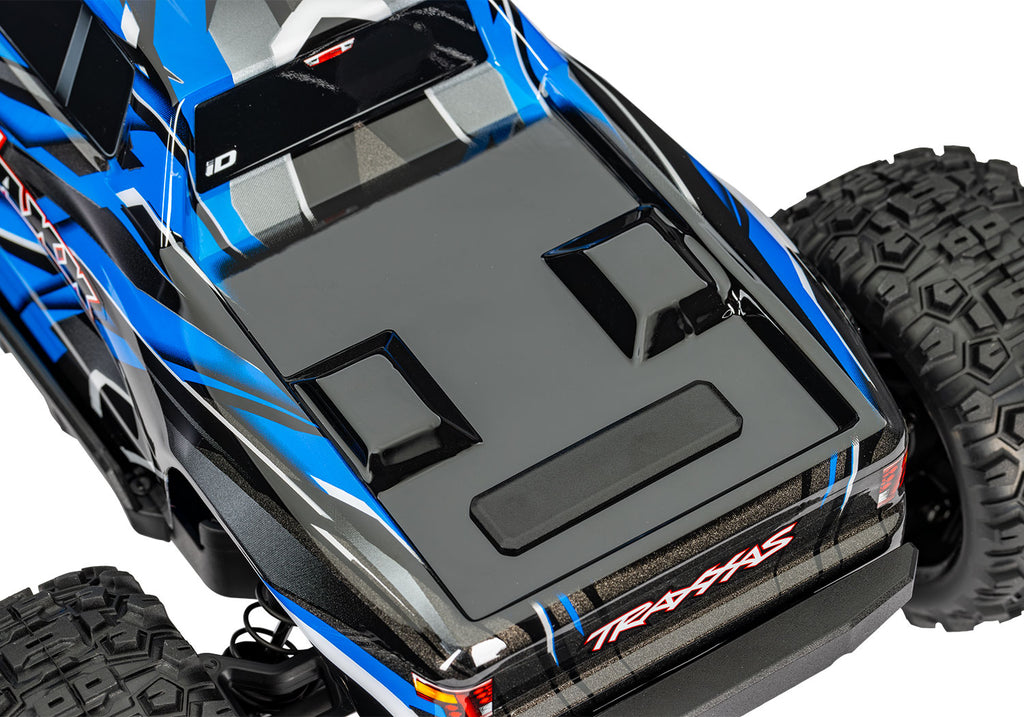

- Clipless Body Mount System
- Quick and easy installation and removal

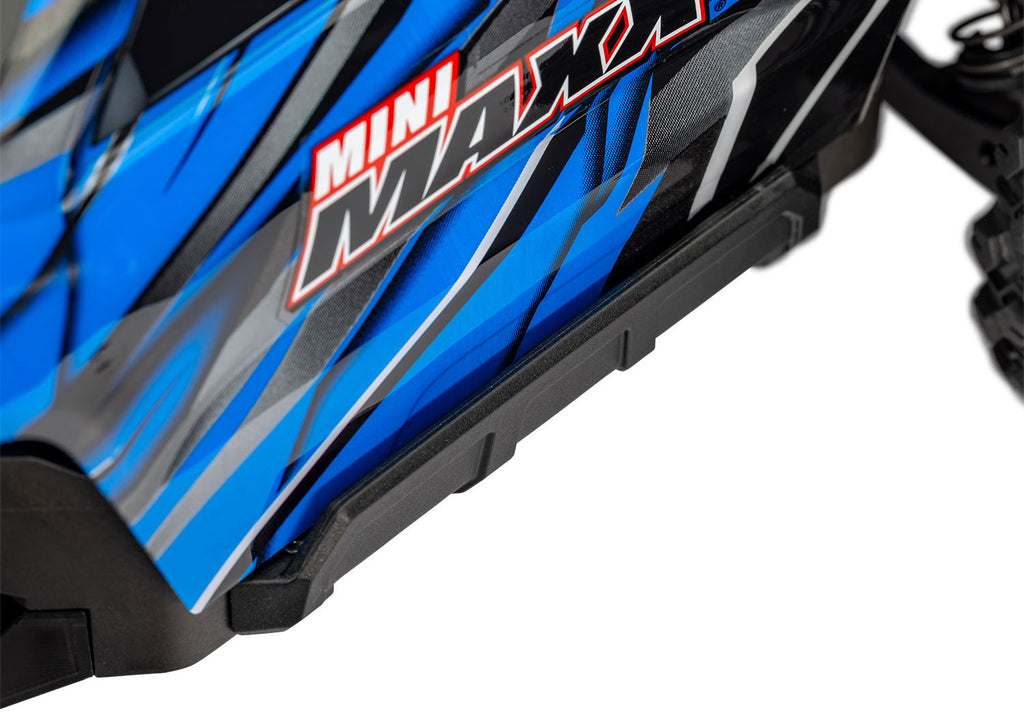

- Nerf bar channels for side body support
- Reinforced for extra protection against tearing

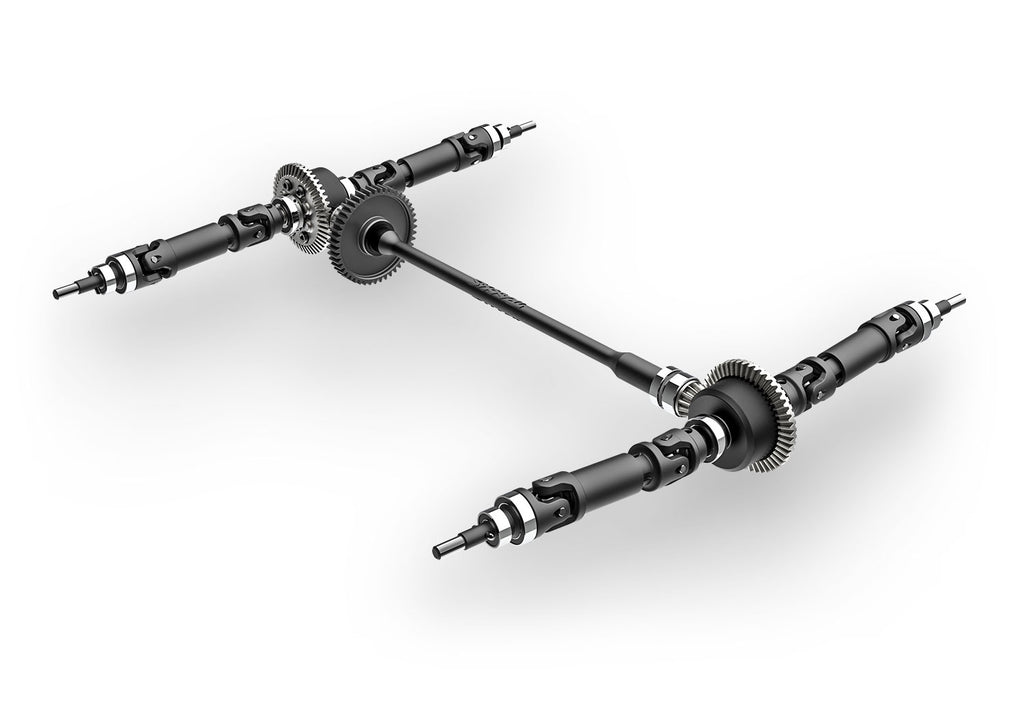

- 1/10 Scale 4X4 Drivetrain
- Full-time shaft-driven 4-wheel drive

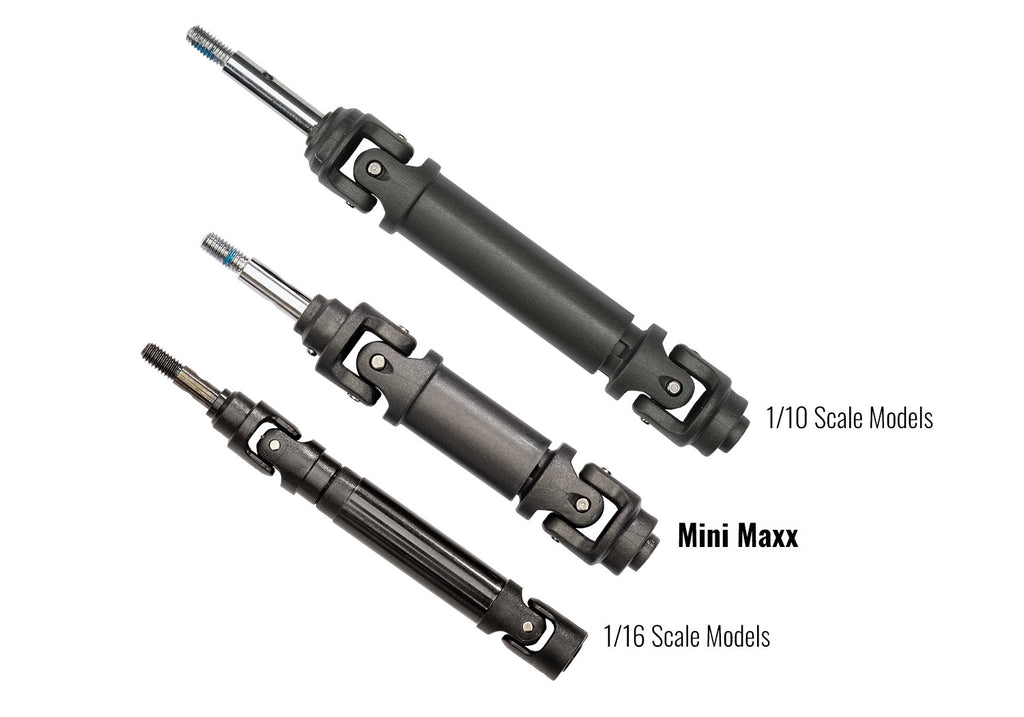

- 1/10 scale extreme-duty telescoping driveshafts
- Direct drive (no transmission)

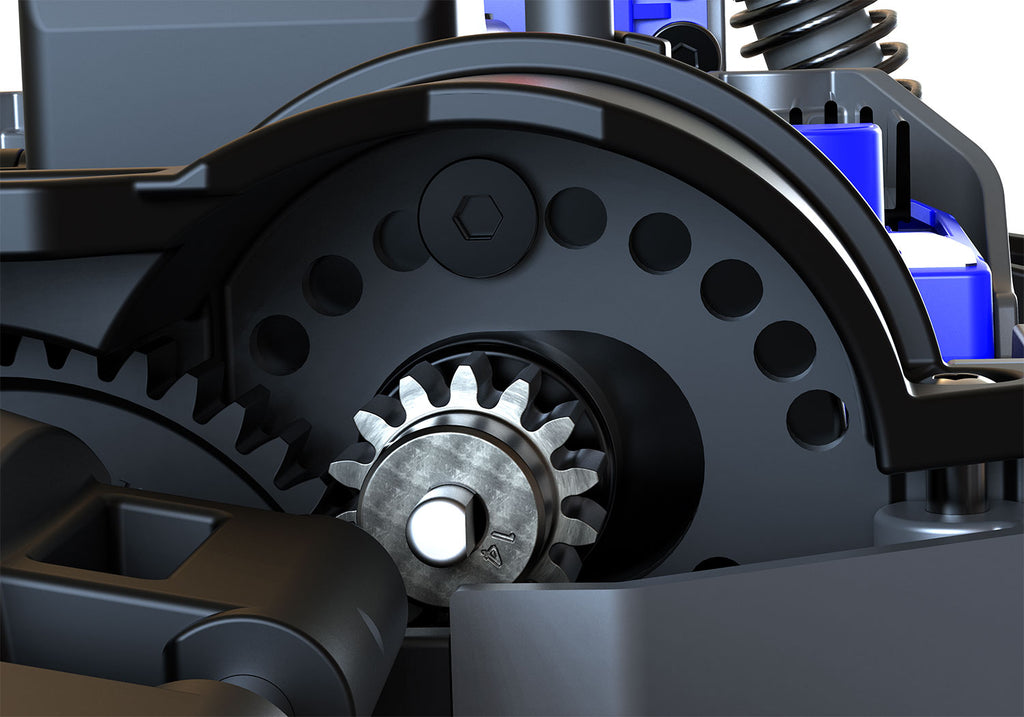

- Fixed gear mesh system
- Large 32-pitch gears

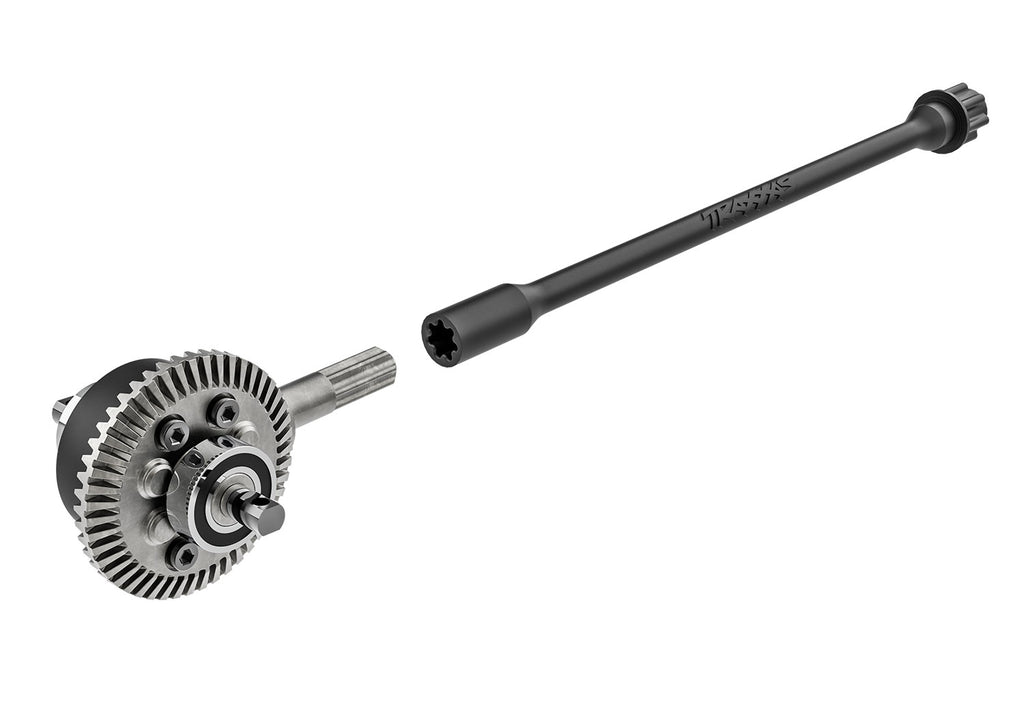

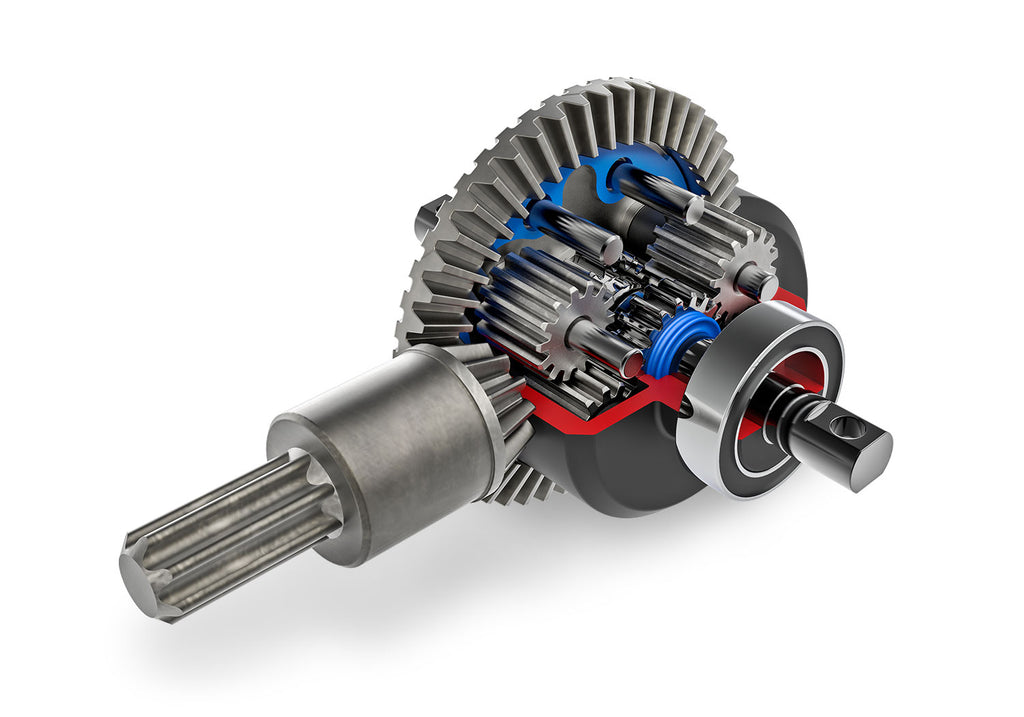

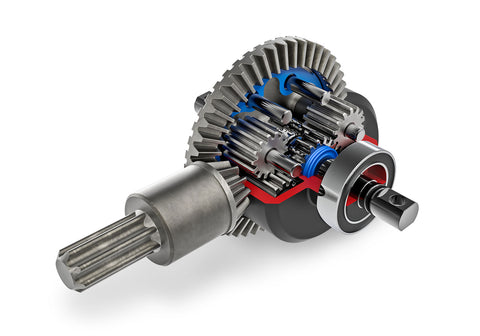

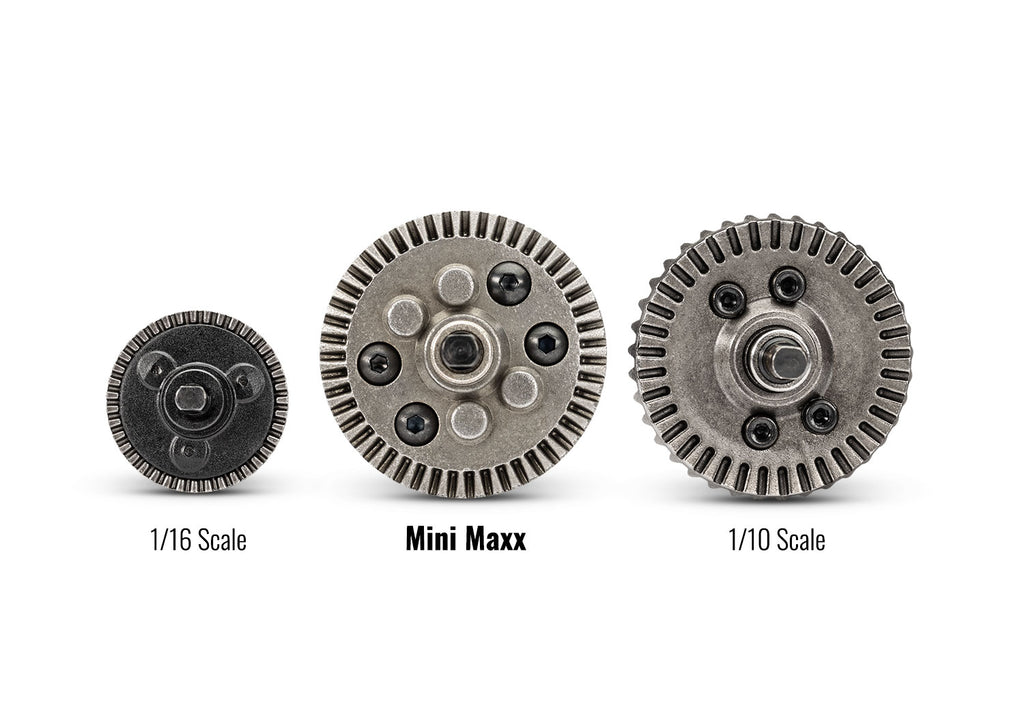

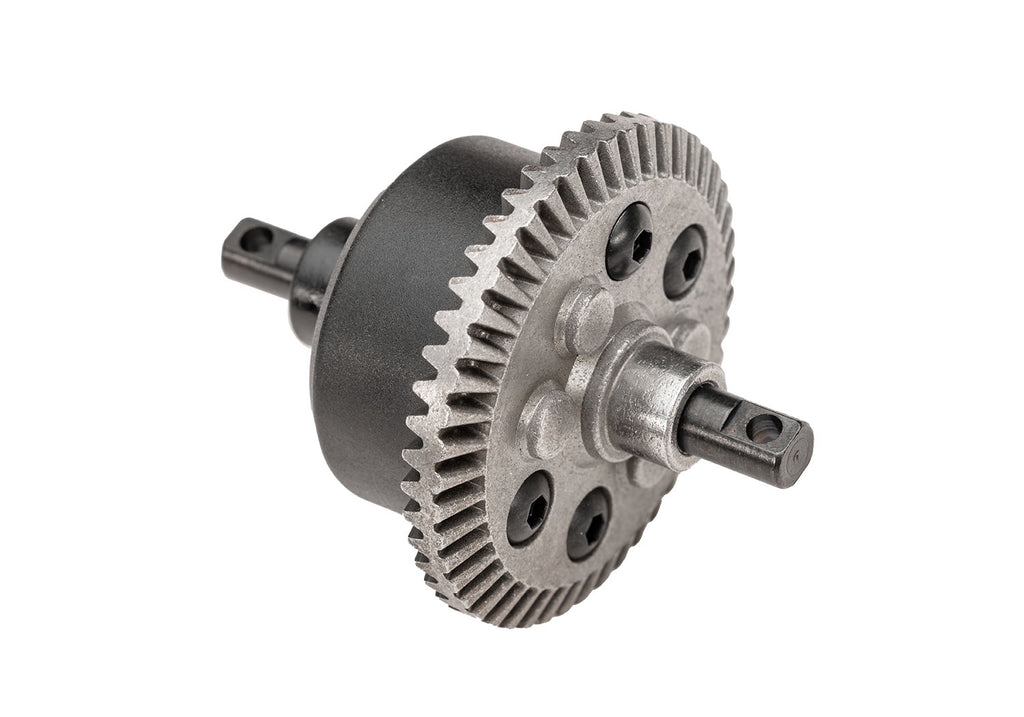

- Sealed planetary steel-gear differentials
- Fixed gear mesh system

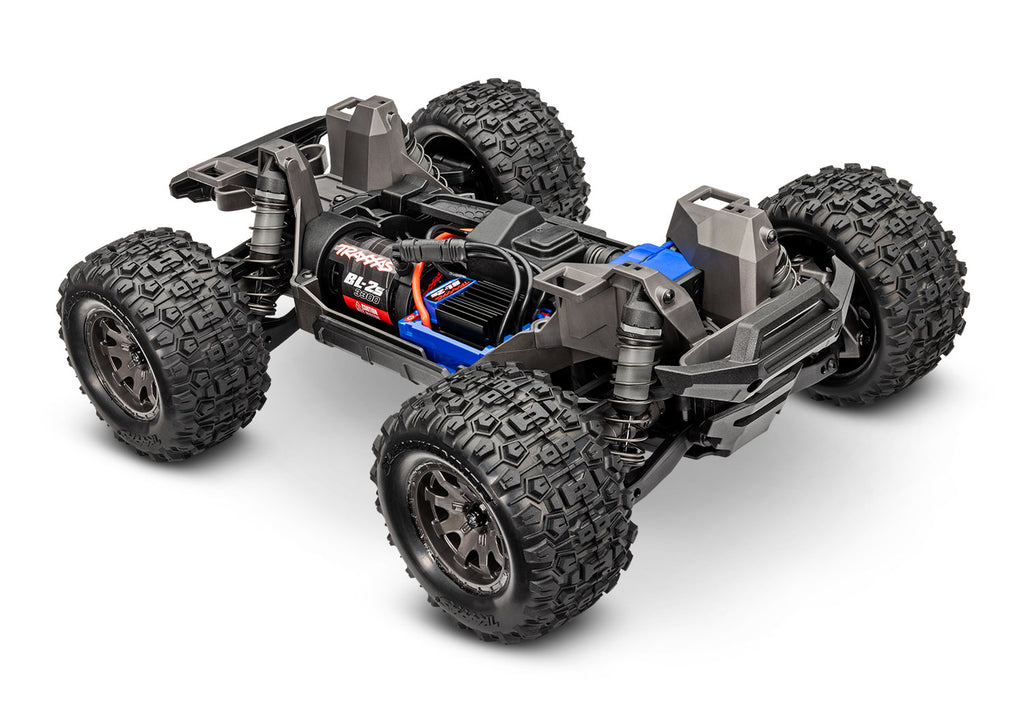

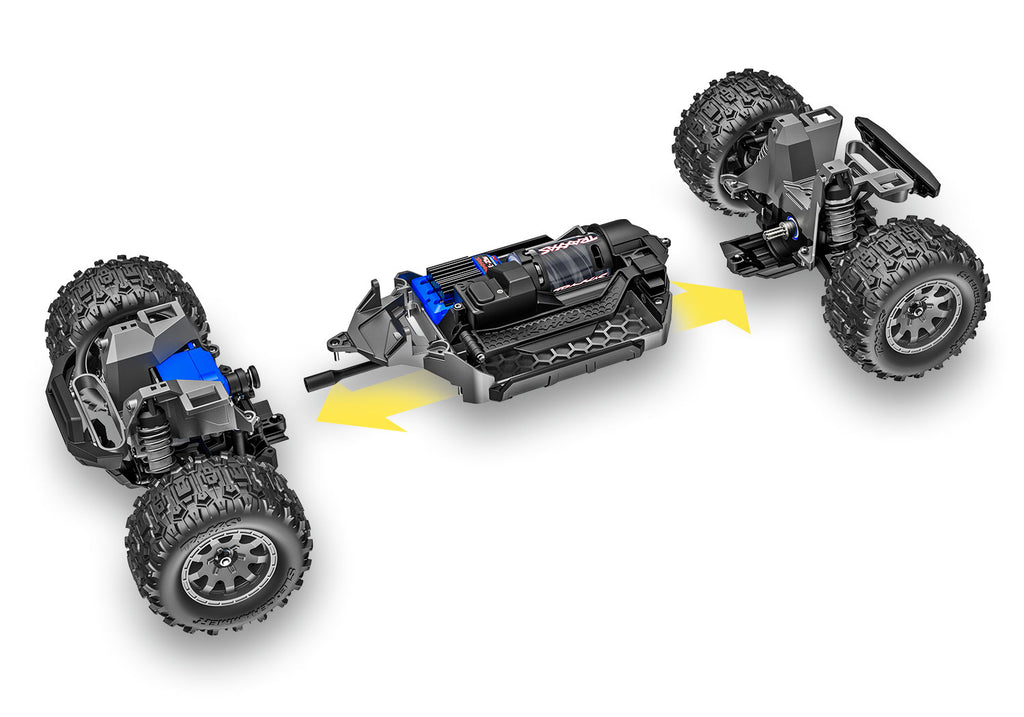

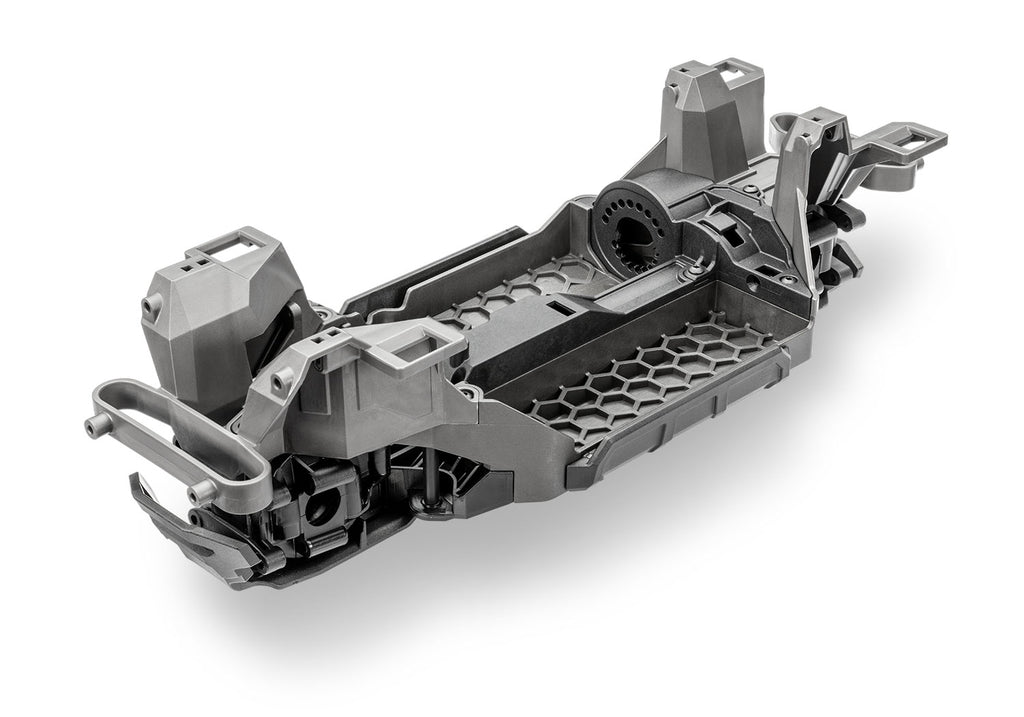

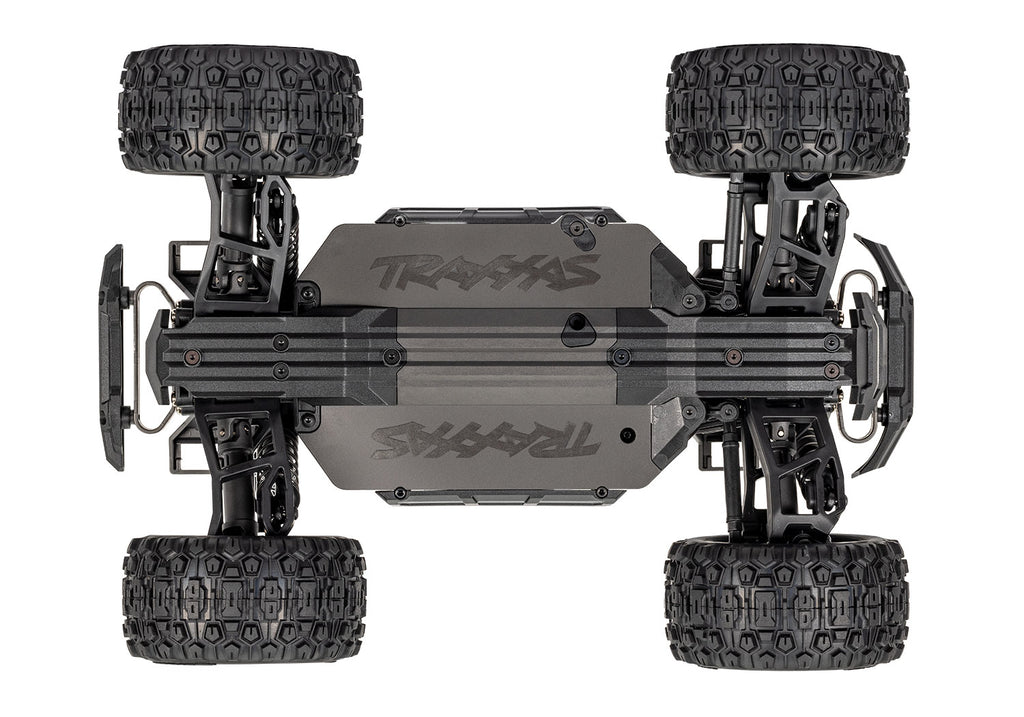

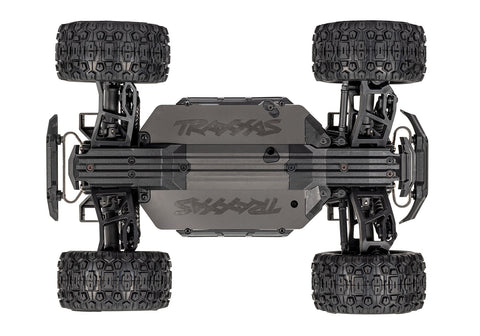

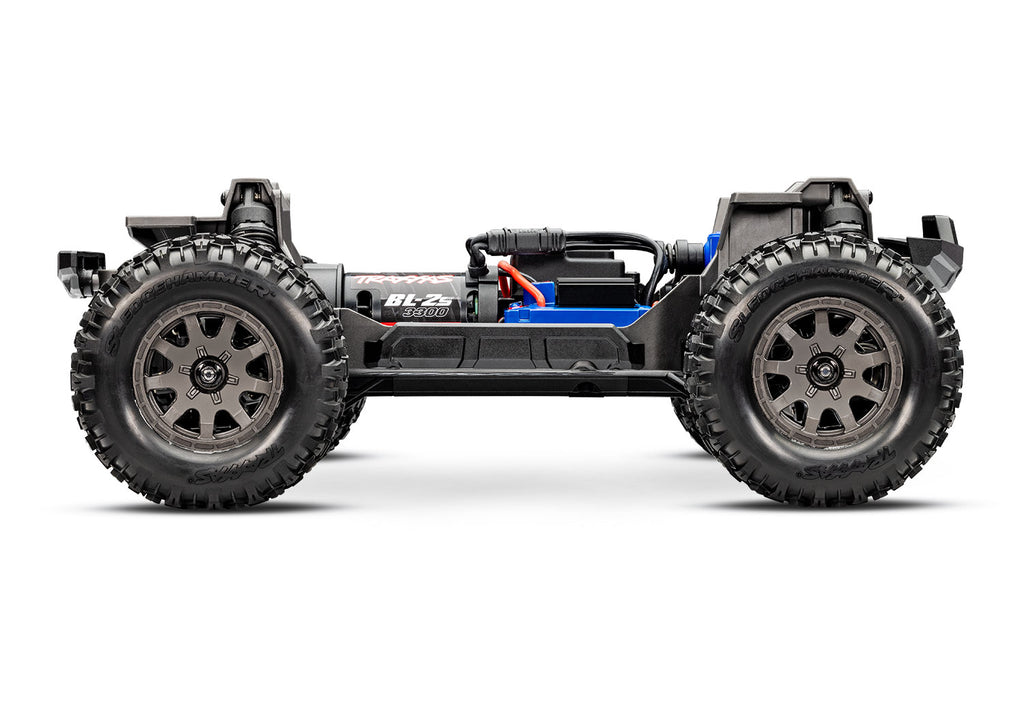

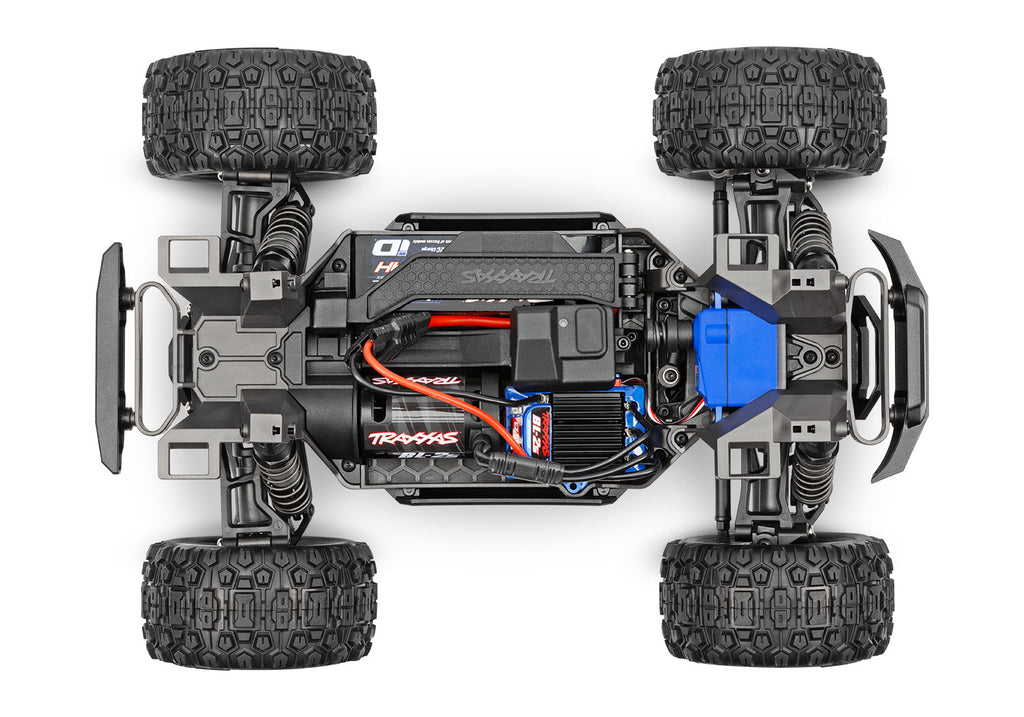

- Modular Composite Chassis
- Modular chassis with interlocking front and rear bulkheads
- Absorbs and distributes impact energy
- Easy to service and access components
- Driveline is sealed in the chassis to keep out dirt

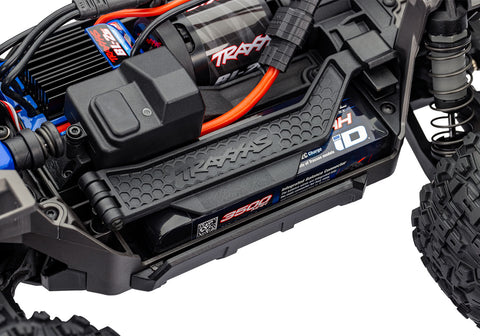

- Easy Battery Access
- Battery is protected deep in the chassis
- Battery hold-down pivots for easy access
- More secure than conventional retention systems

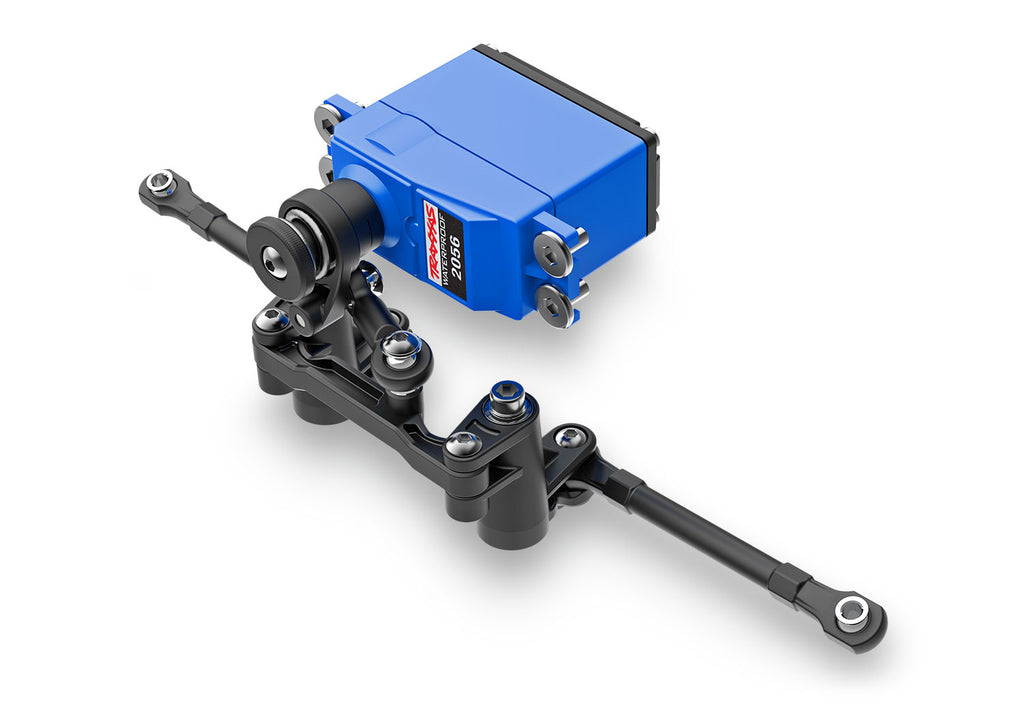

- Steering

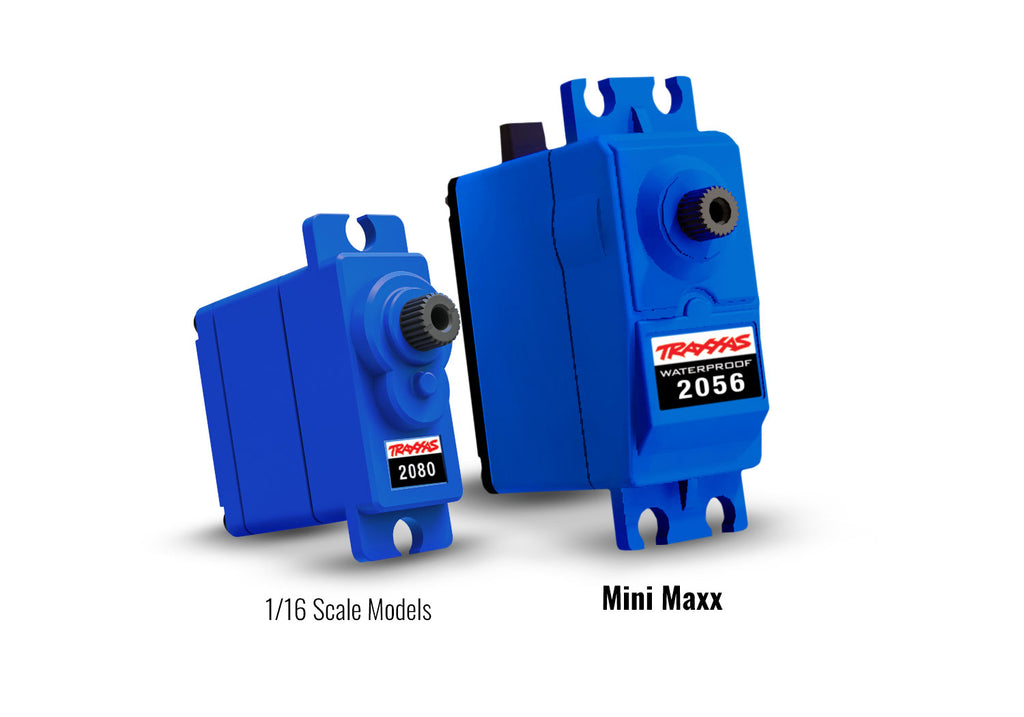

- 1/10 scale 2056 waterproof high-torque servo
- Heavy-duty double-shear bellcranks
- Cam-style servo saver

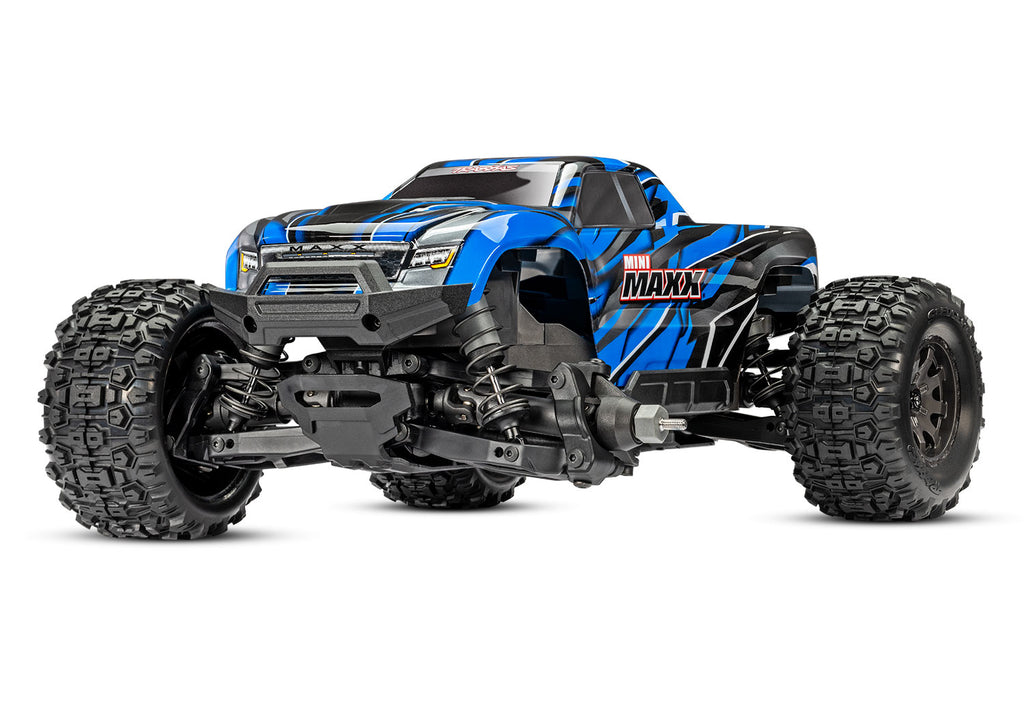

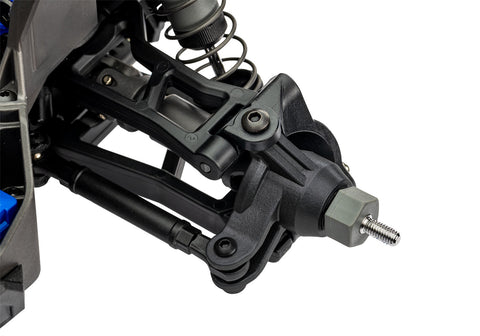

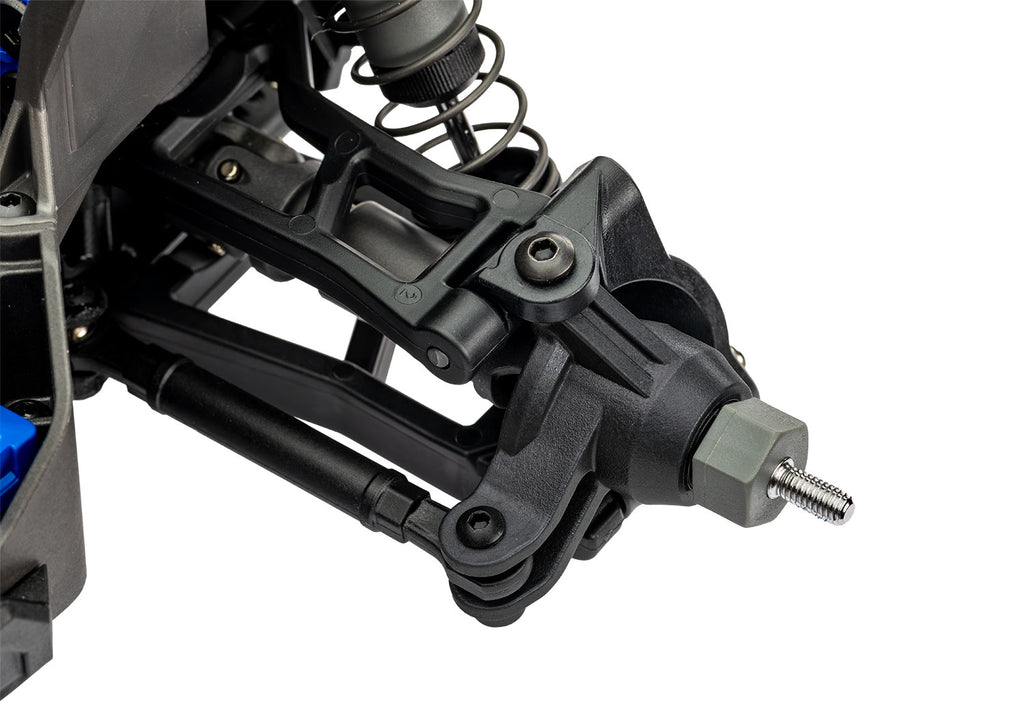

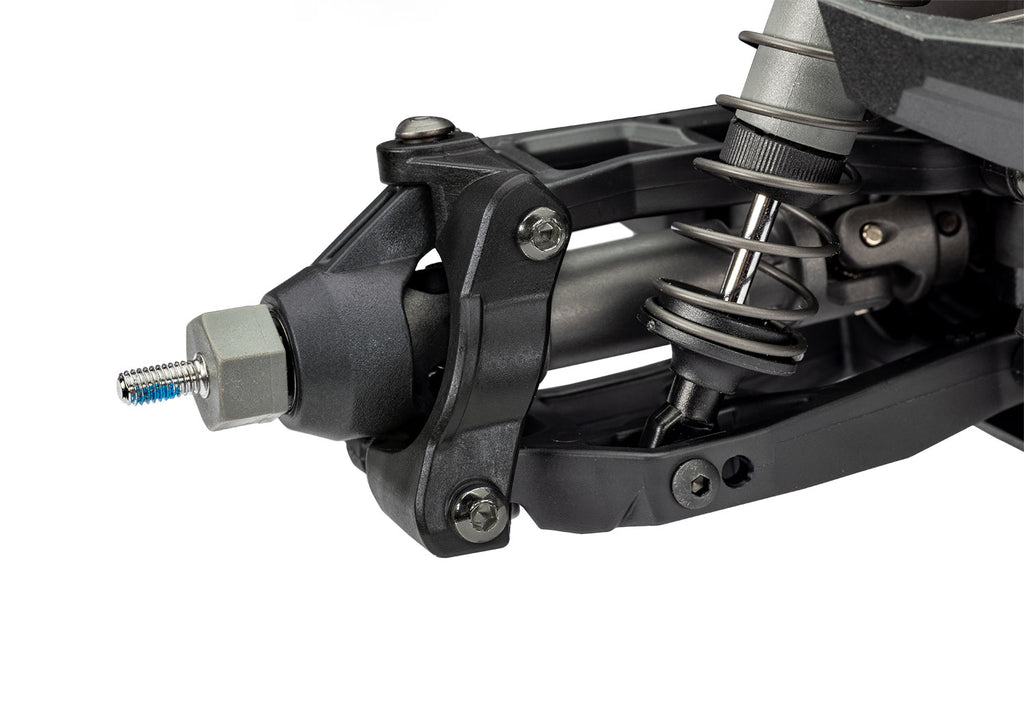

- Suspension
- Heavy duty, double-shear suspension arms
- Dual wishbone design
- Extra tough outer suspension components
- Oil-Filled Ultra Shocks™
- Full size 1/10 scale shocks
- Large oil capacity
- Easy to tune

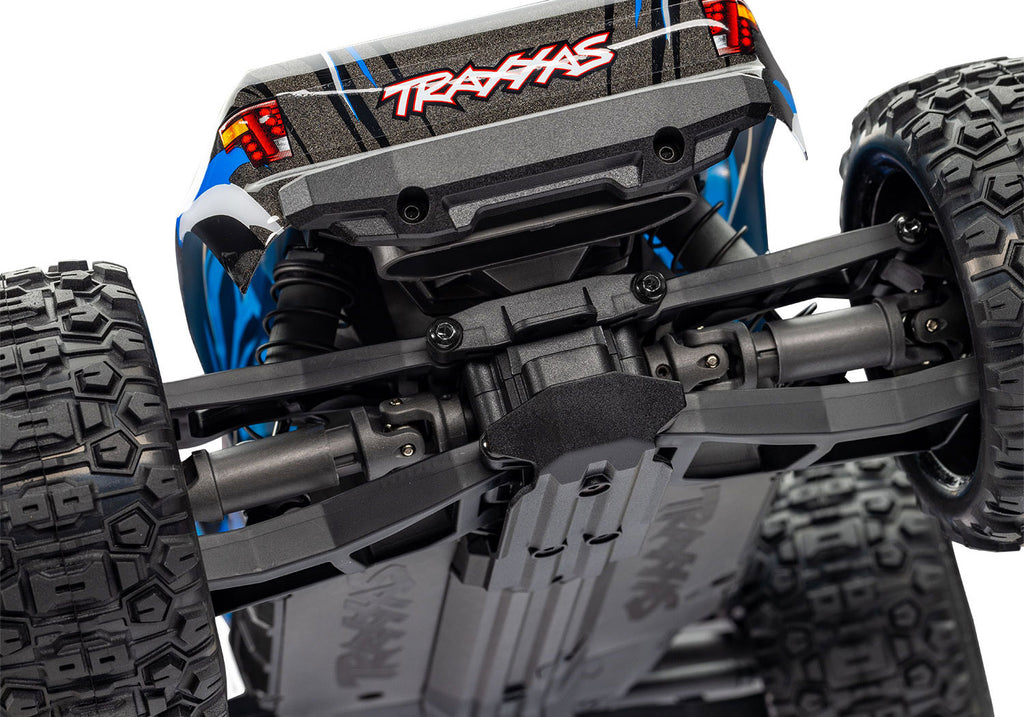

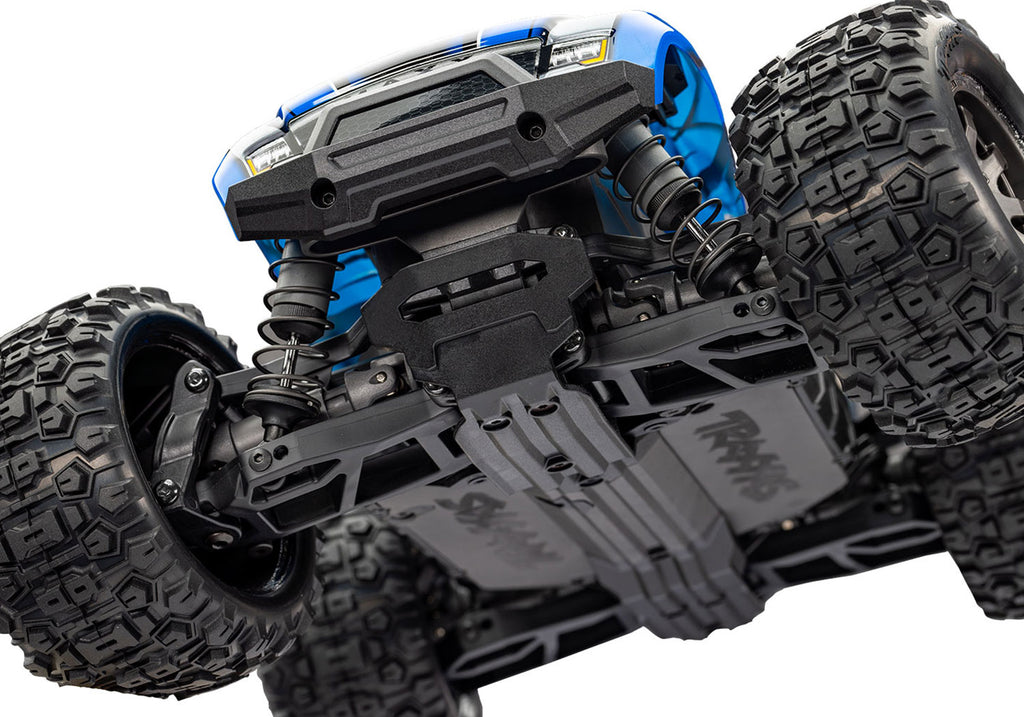

- Bumpers and Skid Plates
- Tough energy absorbing bumpers
- High-angle front skid plate
- Rugged interlocking skid plates
- Smooth undertray eliminates snags
- Integrated nerf bars for side impact resistance

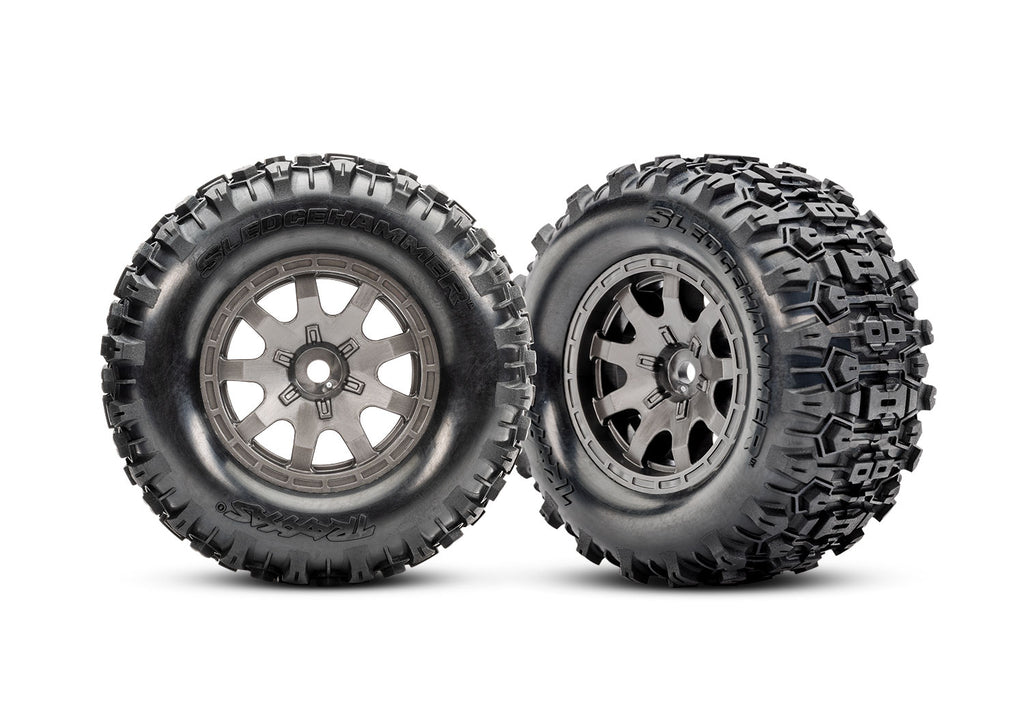

- Wheels and Tires
- Dual-profile black multi-spoke wheels
- 4″ Sledgehammer® tires with foam inserts
- Wide treadblock design
- Multiple layers of biting edges
- Hex Hardware with Rust-Resistant Black Oxide Coating
- Sealed Ball Bearings

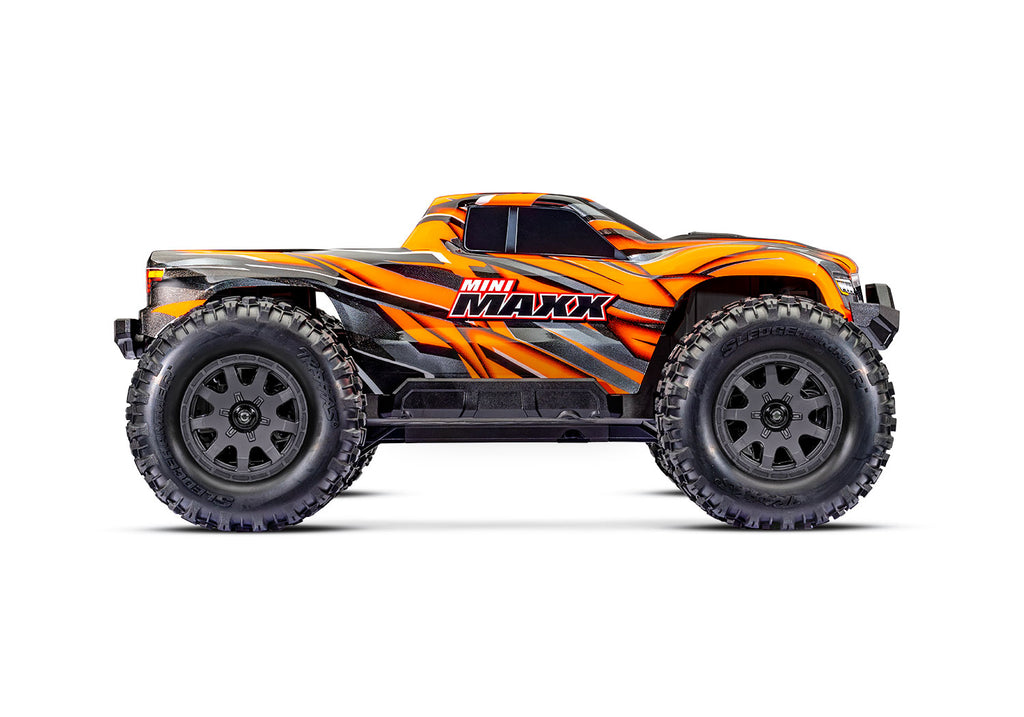

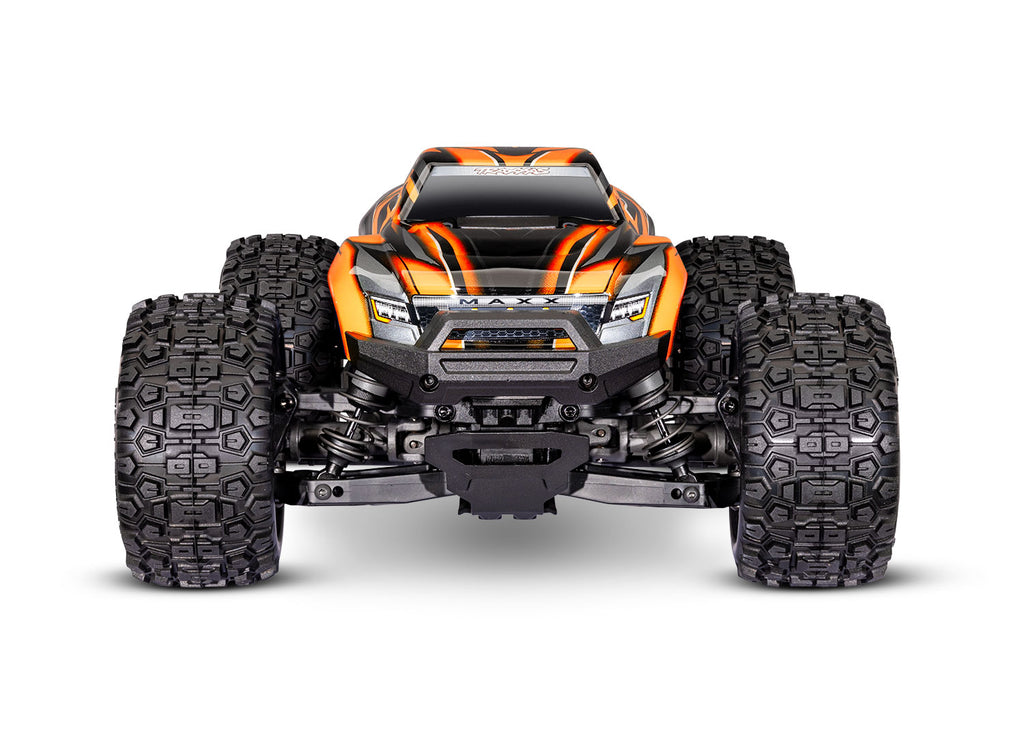

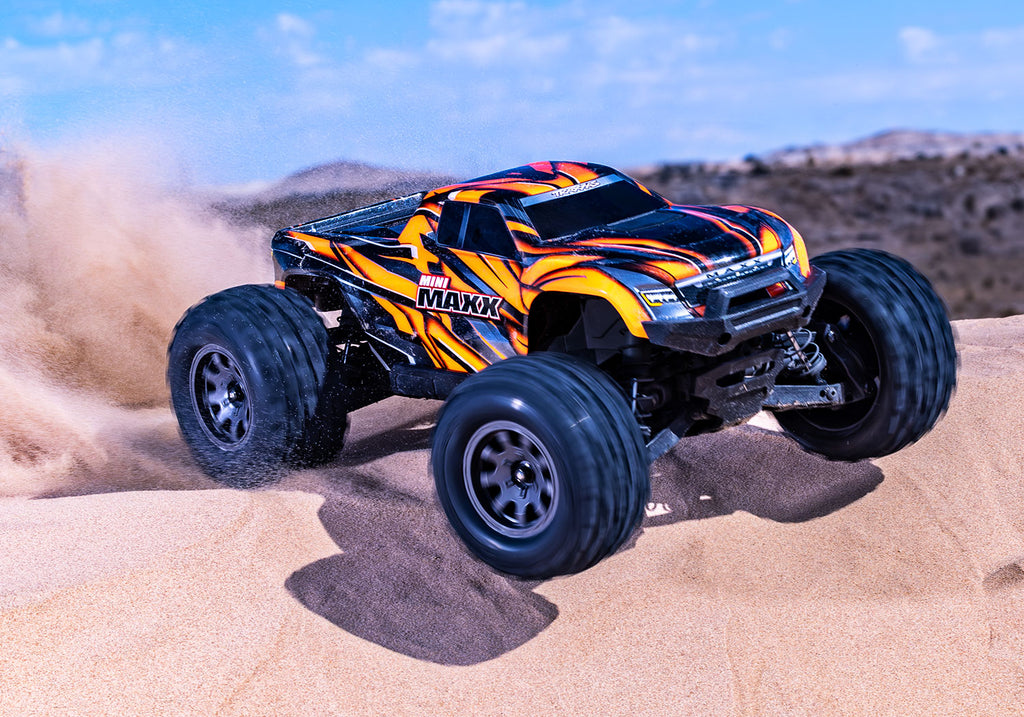

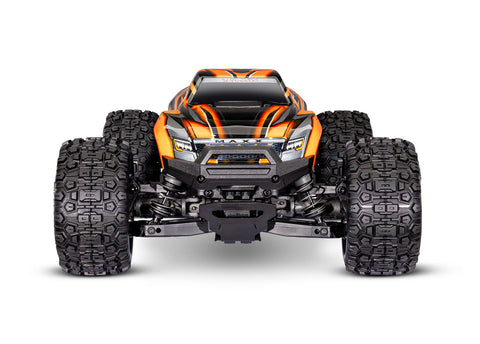

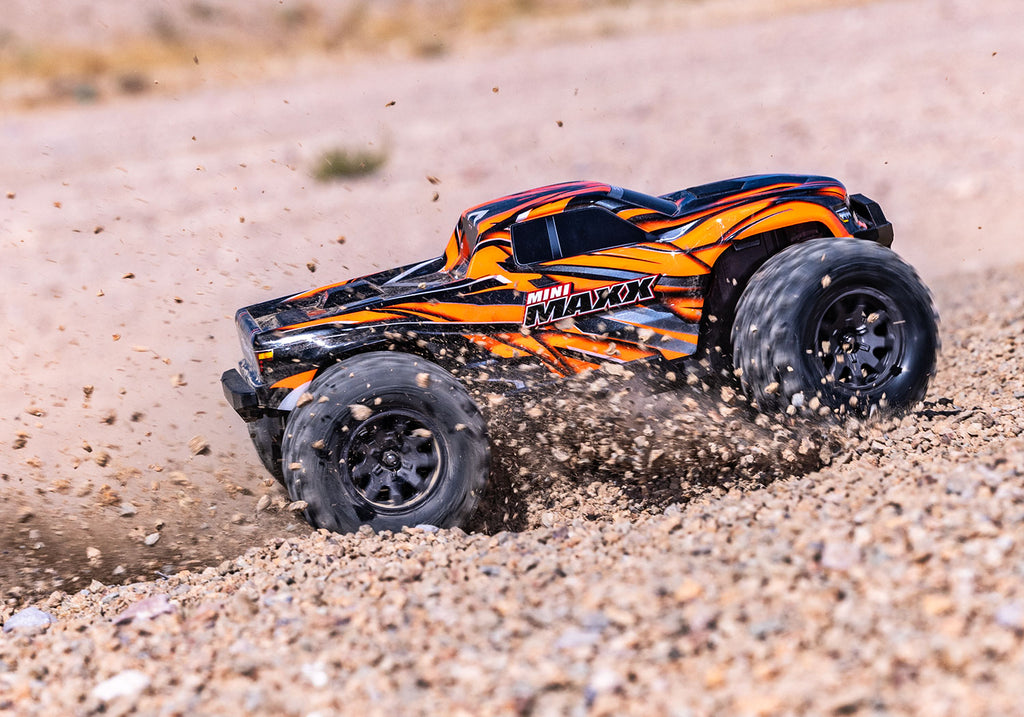

MODEL MODEL 107154-1: Mini Maxx: Maxx-scale monster truck, fully assembled, Ready-To-Race®, with TQ™ 2.4 GHz radio system, Bl-2s™ Brushless Power System, and clipless® painted body. Includes 2-cell LiPo battery and 2-amp USB-C charger.What’s In The Box:
- Mini Maxx Ready-To-Race monster truck
- BL-2s Brushless Power System
- 3500 mAh 2-cell LiPo battery
- 2-amp USB-C charger
- Quick Start Guide
- TQ 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter
- Charging Accessories
Power adapter 2912 and power cable 2916 recommended for peak charging performance
-
-
