90376-4-BLUE
-
MODEL SPECS

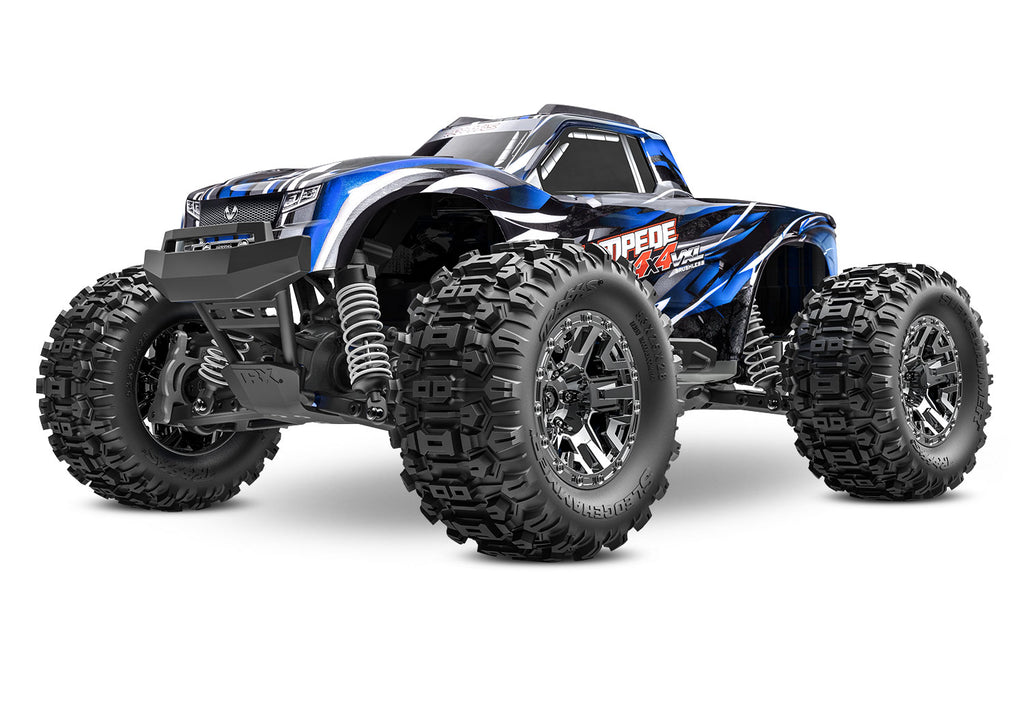

Model Name: Stampede 4X4 VXL Model Type: Monster Truck Model Speed: 60+ mph with optional gearing and 3s LiPo battery (items sold separately) Model Skill Level: 4 Scale: 1/10 Weight: 6.3 lbs (2.9 kg) Length: 20.24 inches (514 mm) Width: 13.10 inches (333 mm) Height: 8.34 inches (212 mm) MOTOR SPECS
Motor Name: Velineon® 540XL 2400 kV sensorless brushless Motor Type: Sensorless brushless Motor Weight: 11.18 oz (317 g) Motor Length: 3.58 inches (91 mm) Motor Diameter: 1.41 inches (36 mm) Motor Shaft Size: 5 mm Motor Connector Type: Traxxas 6.5 mm bullet connectors ESC SPECS
ESC Name: Velineon® VXL-3s™ electronic speed control ESC Type: Fan-cooled brushless speed control ESC Case Size: 2.19″ (56 mm) x 1.54″ (39 mm) x 1.65″ (45 mm) ESC Weight: 3.84 oz (109 g) Motor Connectors: 6.5 mm bullet connectors Battery Connectors: Traxxas High-Current Connector ESC Power Wire: 12 gauge Maxx® Cable
-
Clipless Body
- Tough reinforced bumpers
- Reinforced inner cage
- Rugged roof rollover protector
- Tailgate protector

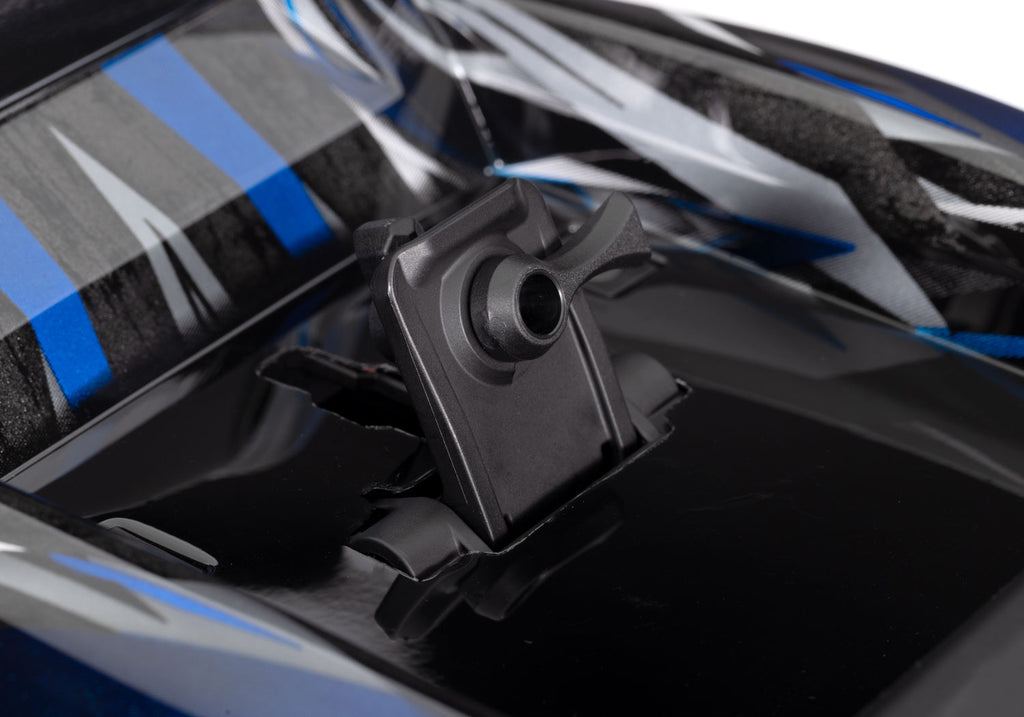

- Quick and easy removal
- Holds tight for intense action
-

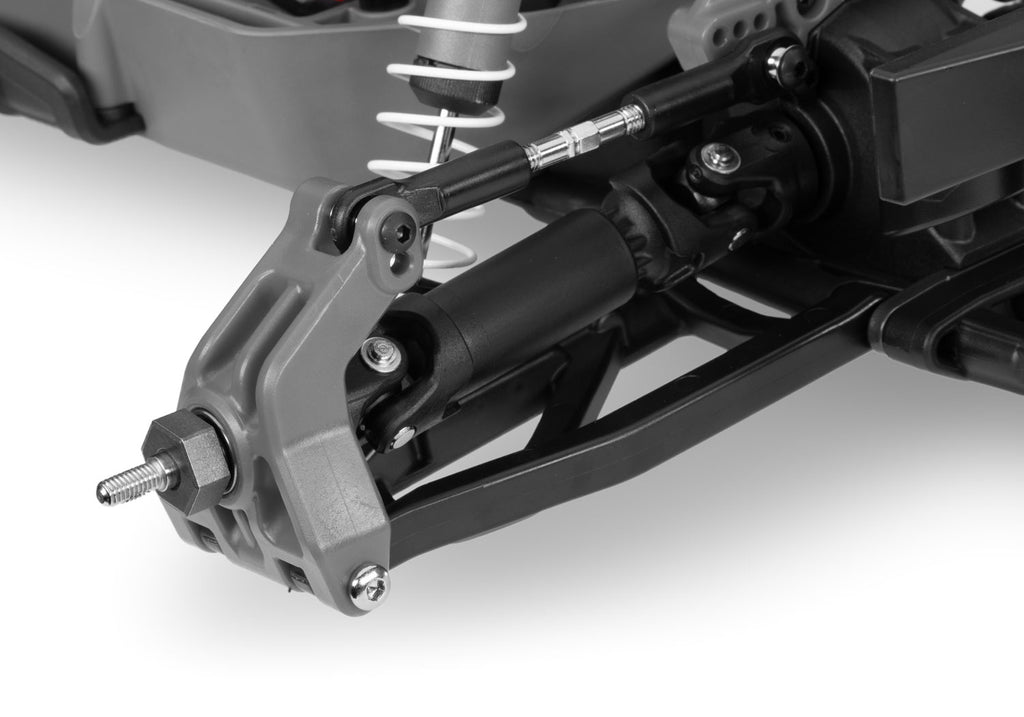

Extreme Heavy Duty Upgrade Kit Installed

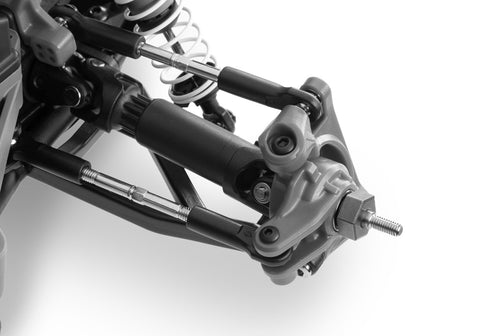

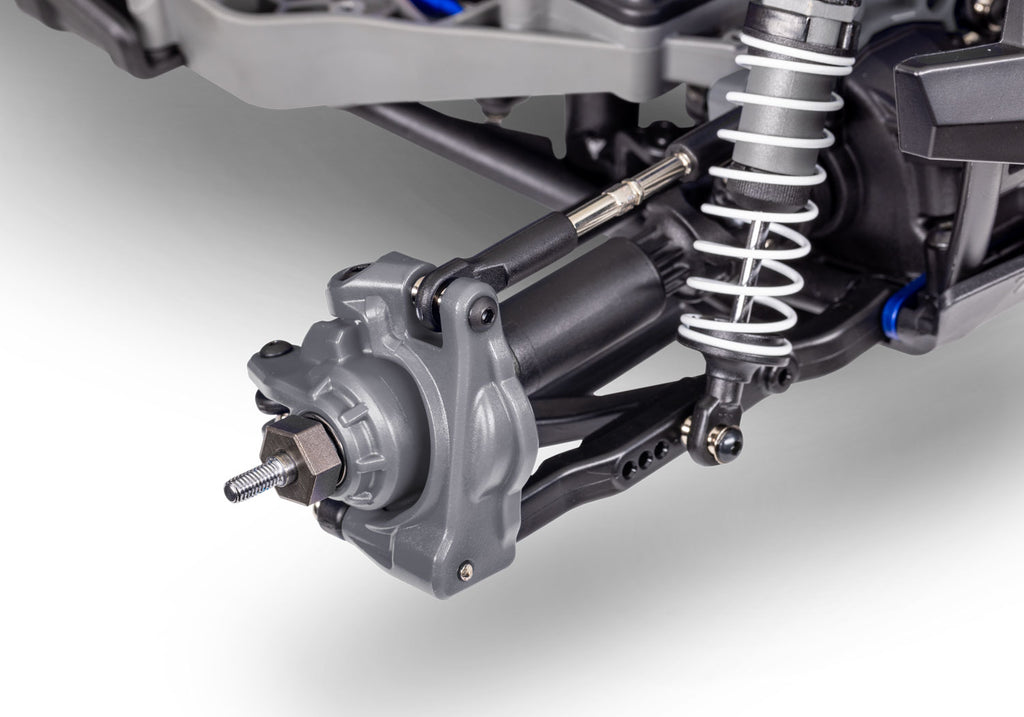

- Strengthened C-hubs, axle carriers, and steering blocks
- Maxx duty® driveshafts
- Oversize diameter
- 6 mm axles
- Steel wheel hexes
-
TQi™ 2.4 GHz High Output Radio System
- Traxxas Link enabled
- 2.4 GHz 5-channel micro receiver (6533) with fail-safe security and integrated telemetry ports
- Automatically stores and loads settings for up to 30 Traxxas Link-enabled models—just switch on and drive, “model selection” is not required
- Multi-Function knob

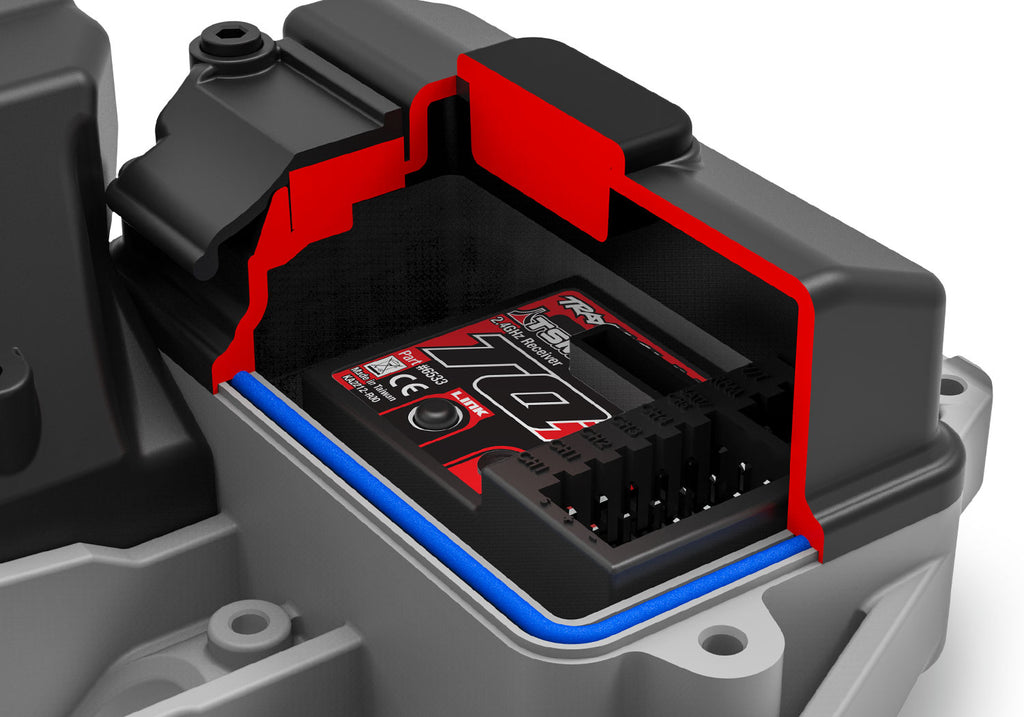

- Patented waterproof receiver box with easy-access plug
-

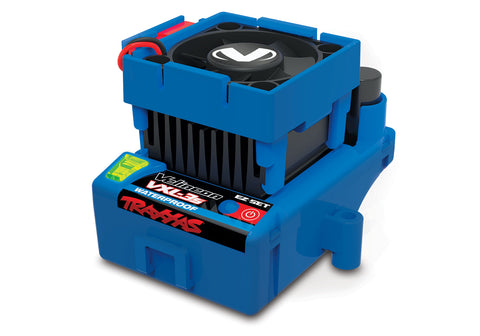

VXL-3s™ Waterproof Electronic Speed Control
- Cooling fan with large heat sink
- Three Programmable Drive Profiles:
- Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set® one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-9 cells (7.2 to 10.8 volts)
- LiPo battery packs: 2-3 cells (7.4 to 11.1 volts)
-

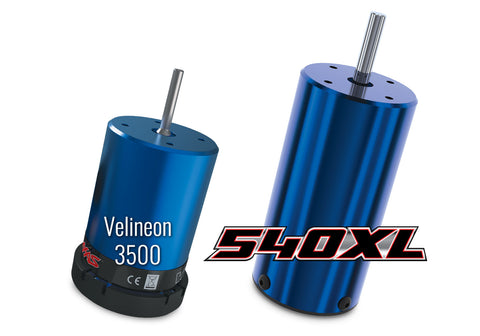

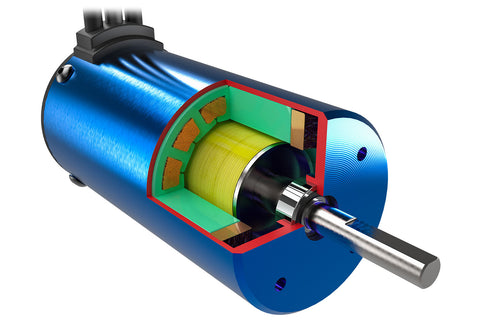

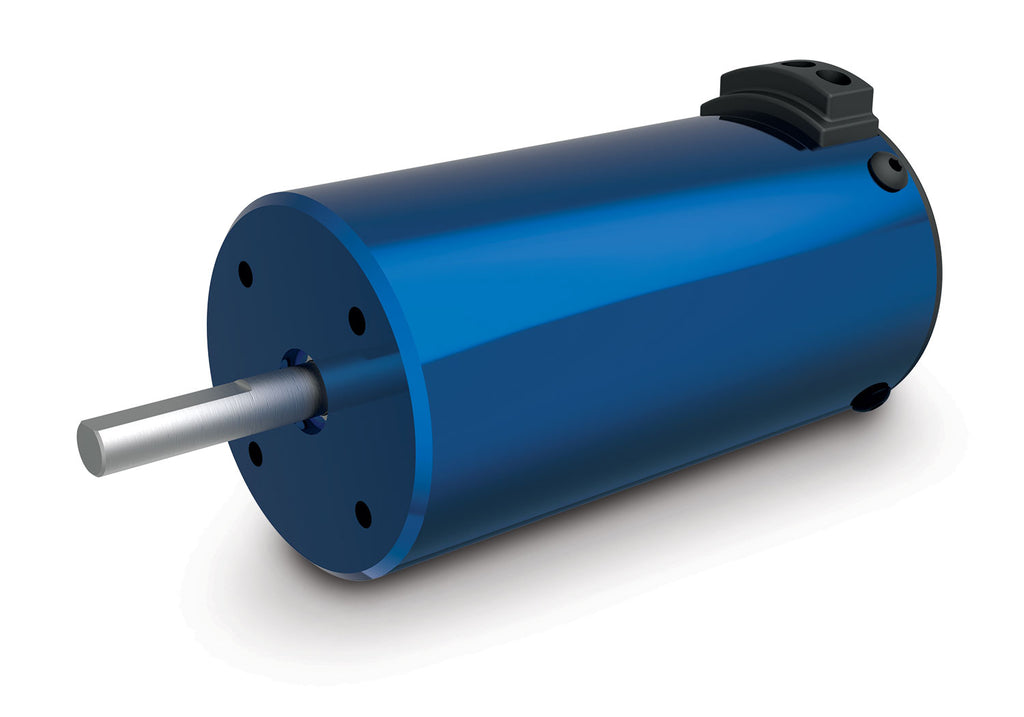

Velineon® 540XL Brushless Motor
- Long format brushless motor
- 4-pole 2400 kV
- 5 mm output shaft
- Precision-balanced rotor
- Brilliant blue-anodized finish
- Up to 60+ mph with 3s LiPo battery (sold separately)
-
Traxxas Stability Management®
- Helps prevents spinouts and loss of control
- Adjusts from off to 100% assistance from the transmitter
-

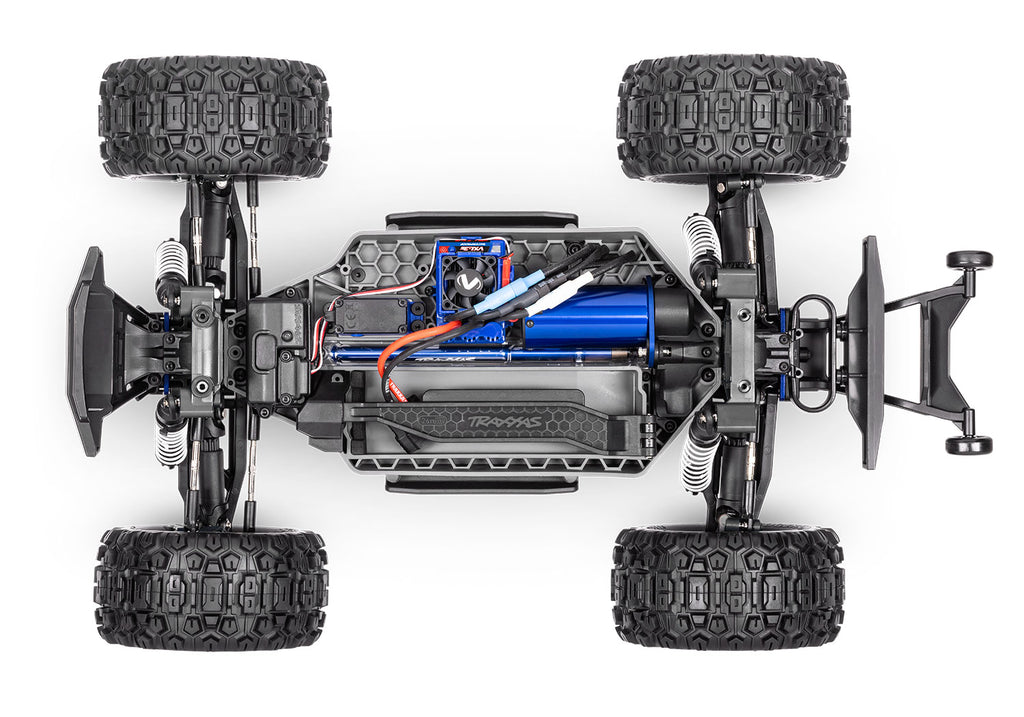

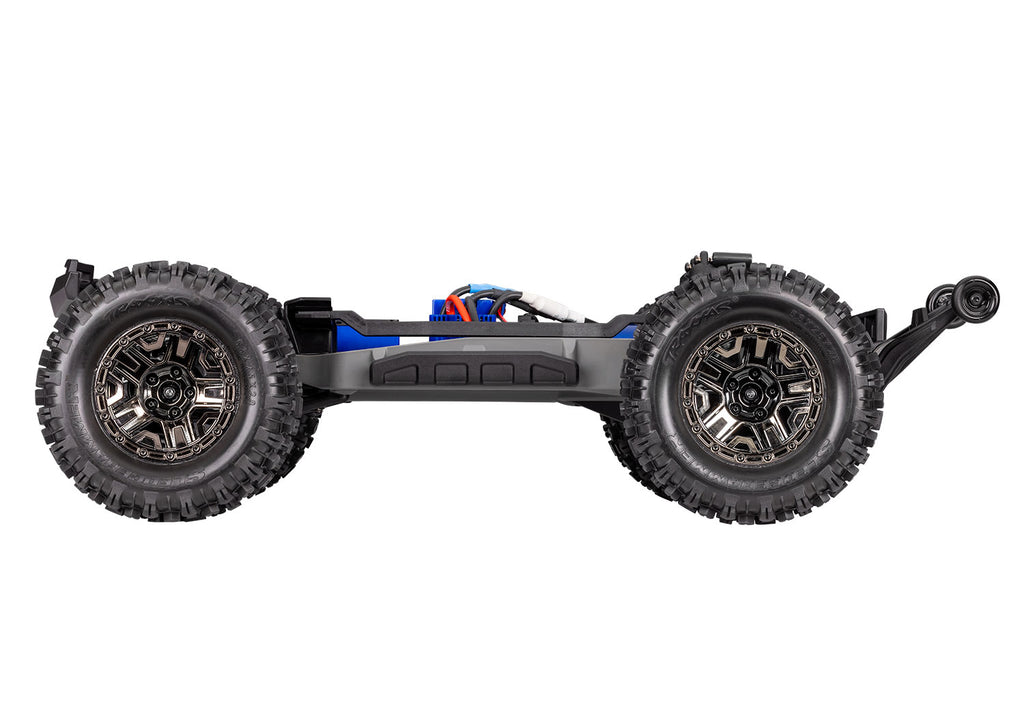

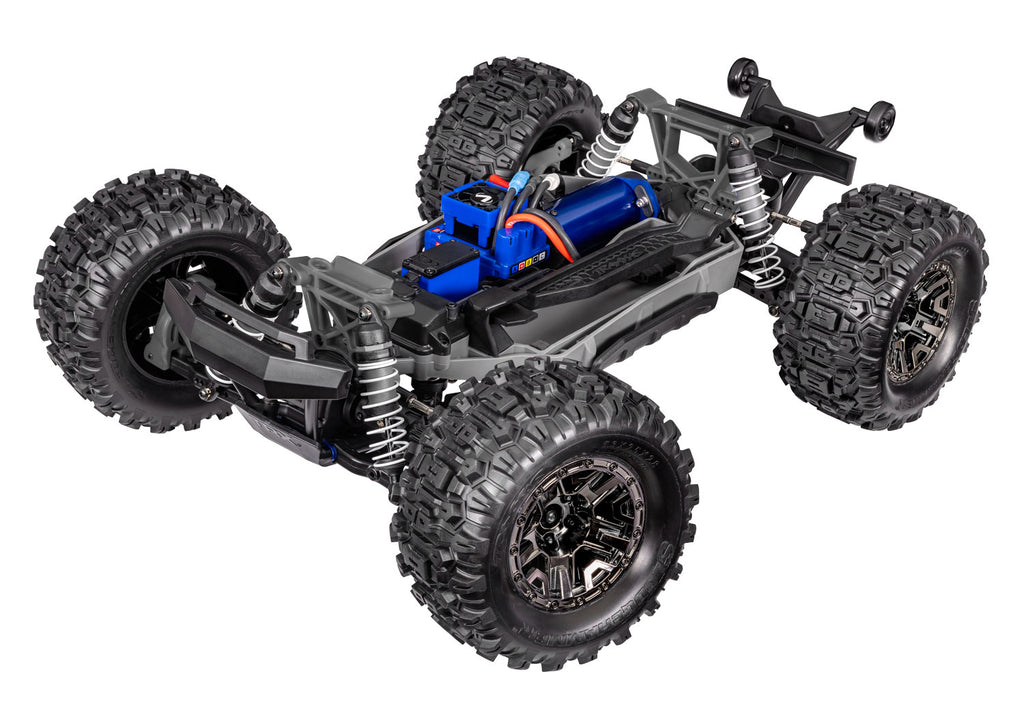

Chassis

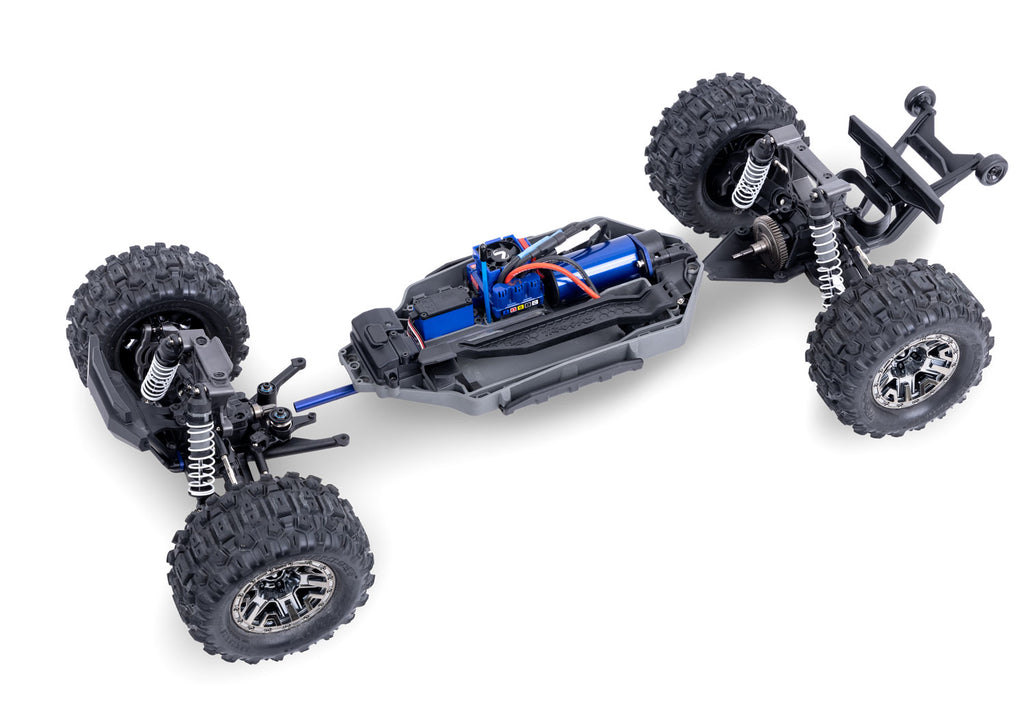

- Modular composite tub design

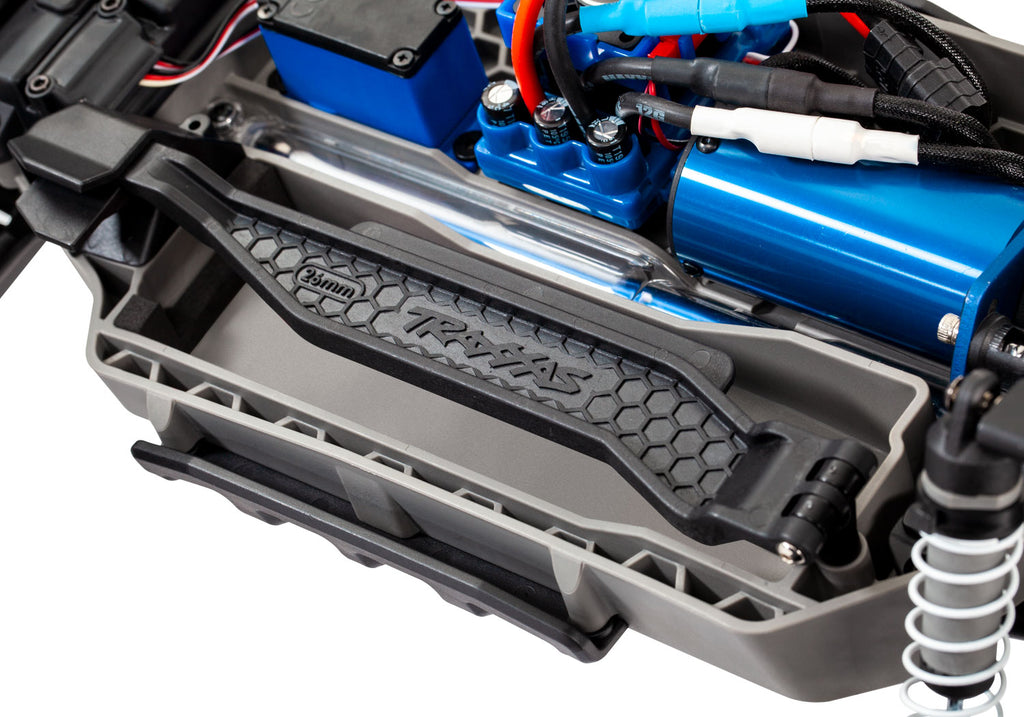

- Secure battery hold-down latch
- Reinforced integrated wheelie bar
- High-approach bumpers

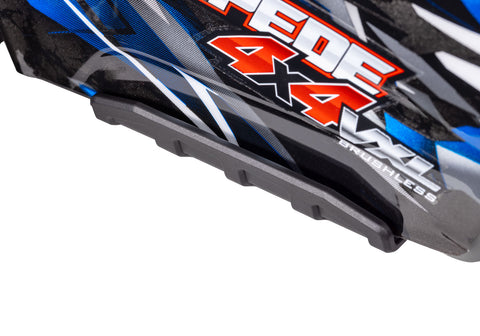

- Integrated nerf bars for side impact resistance
- Suspension
- Adjustable 4 mm steel toe and camber links
- HD suspension arms

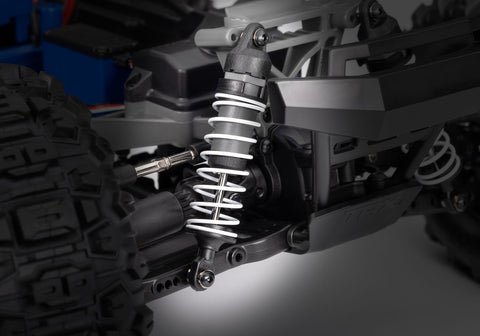

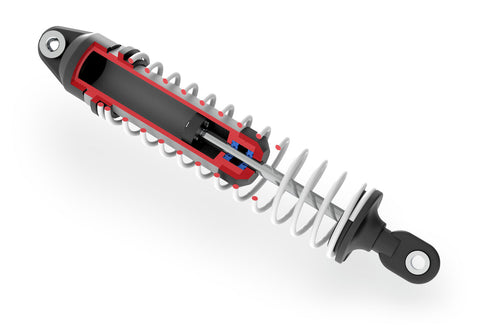

- Oil-filled Ultra Shocks
- Rugged front and rear shock towers
- White powder-coated springs
-
Steering
- Chassis-mounted 2075 servo
- Dual bellcrank design with integrated servo saver
-
Drivetrain
- Full-time shaft-driven 4-wheel drive

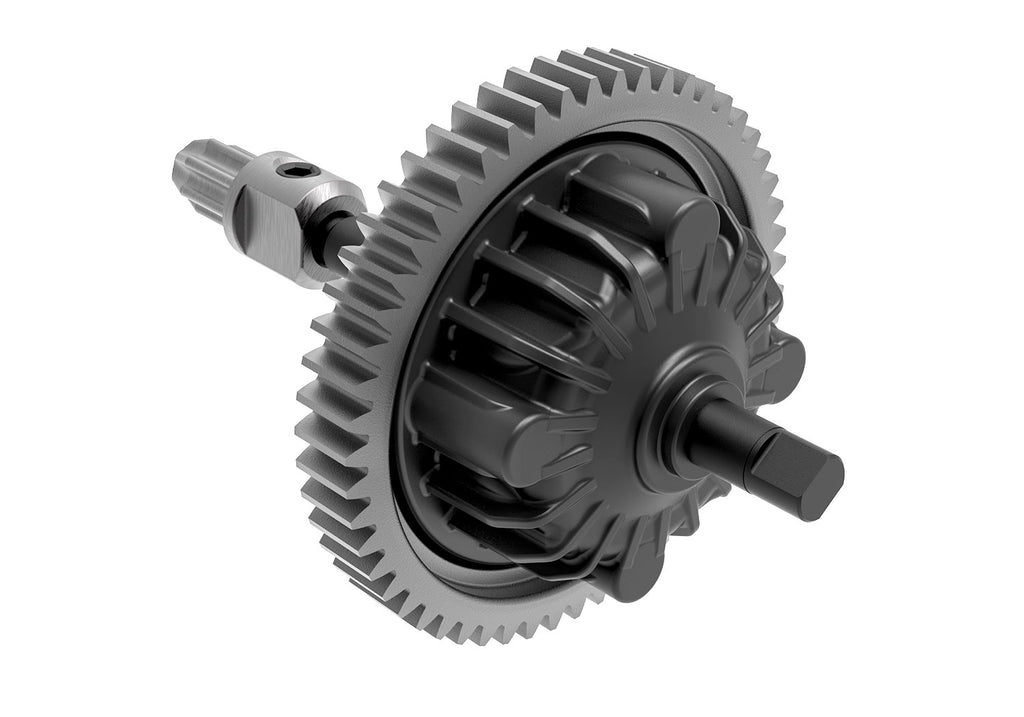

- Torque-Biasing Center Drive™ absorbs shocks and distributes power evenly
- Oil-filled steel gear front and rear differentials

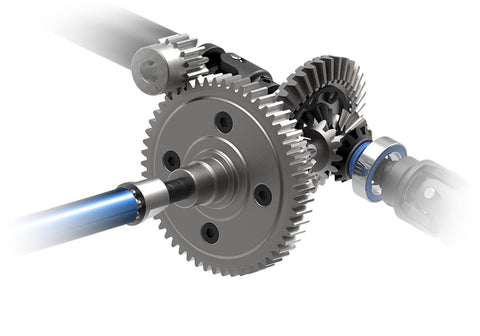

- Large 32-pitch steel spur gear
- Anodized-aluminum center driveshaft
-

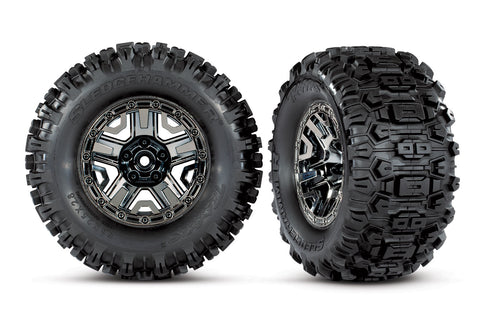

Wheels and Tires
- Large 2.8″ black chrome wheels
- Tall 5.3″ Sledgehammer® tires
- Sealed Ball Bearings
- Hex hardware with Rust-Resistant Black Oxide Coating
What’s In The Box:
- Stampede 4X4 VXL with Velineon VXL-3s and 540XL
- Quick Start Guide
- TQi 2.4G Hz radio system
- High quality maintenance tools
What You’ll Need:
- Batteries
Stampede 4X4 VXL requires a single NiMH or LiPo battery. See full list of batteries
- Charger
Traxxas EZ-Peak® Live charger (2971) is recommended for easy and fast charging performance
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter
-
