500840
FEATURES:
Small size: Tinny size, design for 1/27 1/28 class
Extremely high output: Current 30A , powerful output support
Extremely light: Greatly reduced vehicle weight

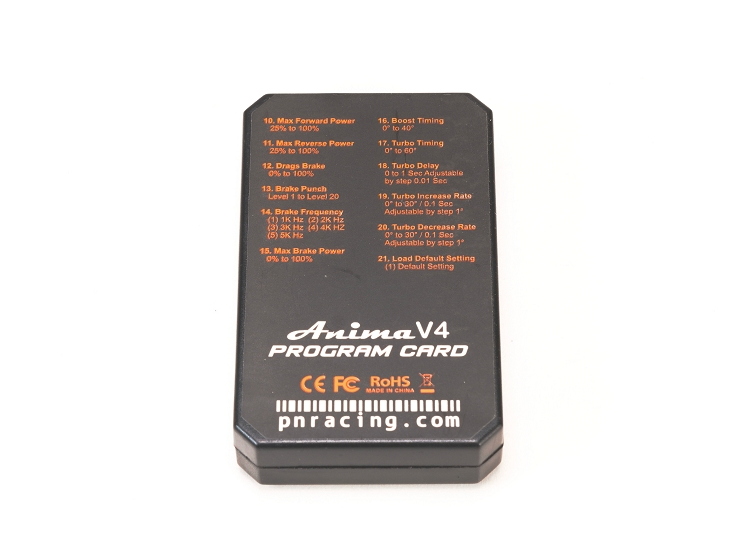

Multi setting: Multi adjustable parameter items support, created for competition
Excellent heat dissipation: Full metal CNC housing, perfect combination of shaped and function)
Small size: Tinny size, design for 1/27 1/28 class
Extremely high output: Current 30A , powerful output support
Extremely light: Greatly reduced vehicle weight
Multi setting: Multi adjustable parameter items support, created for competition
Excellent heat dissipation: Full metal CNC housing, perfect combination of shaped and function)
SPECIFICATION:
Input Voltage: 2S LiPo 6V-8.4V
BEC: 6V/7.4V 3A
Continues Current: 30A
Peak Current: 80A
Motor Size Limit: 1525 1626
Motor Maximum: 10000kv with 0 deg timing
Size: 19.5x13.7x11.0mm (not include the plug)
Weight: 7.1g (without any wire installed)
Input Voltage: 2S LiPo 6V-8.4V
BEC: 6V/7.4V 3A
Continues Current: 30A
Peak Current: 80A
Motor Size Limit: 1525 1626
Motor Maximum: 10000kv with 0 deg timing
Size: 19.5x13.7x11.0mm (not include the plug)
Weight: 7.1g (without any wire installed)

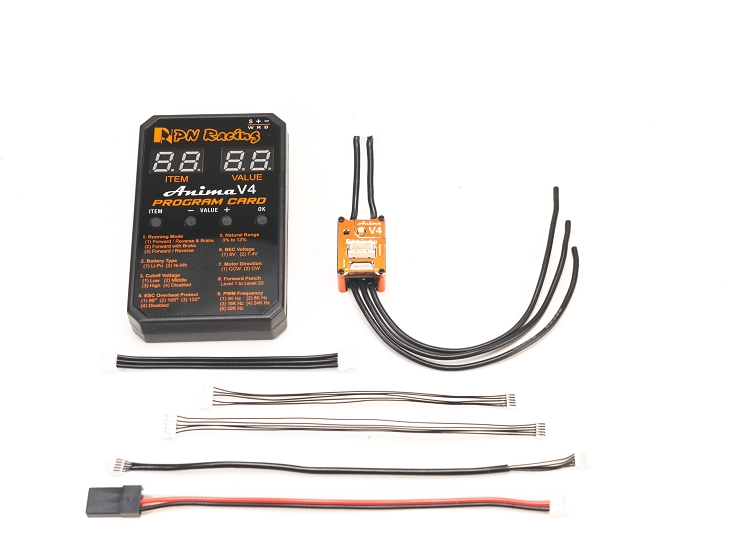

PACKAGE INCLUDED:

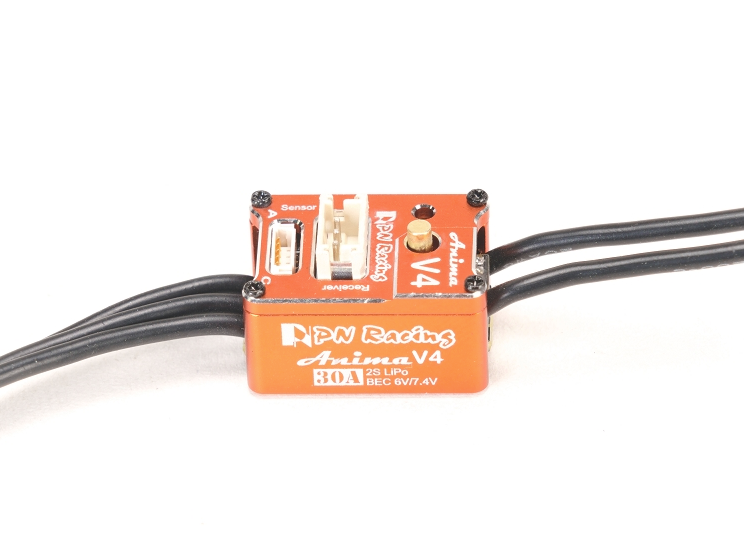

1 x Anima V4 30A ESC

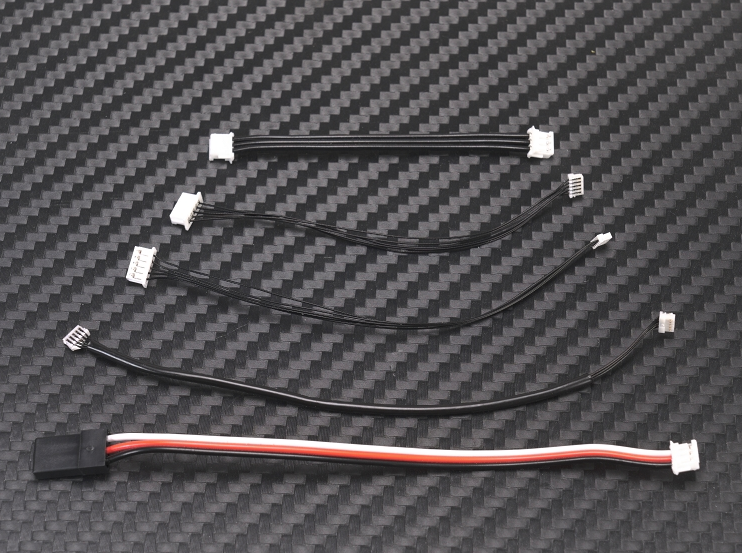

1 x 80mm Motor Sensor Wire for #500822 PN Motor Anima25 Anima35 Anima 55 Anima75
1 x 100mm Motor Sensor Wire for #50085 PN Motor Anima25 Anima35 Anima 55 Anima75
1 x 125mm Motor Sensor Wire for Atomic; Hobbywing; MWX; Motor
1 x Wire Connector ESC to Receiver #500826
1 x JST2.0 Female plug to 2S LiPo Battery
1 x Anima V4 30A ESC
1 x 80mm Motor Sensor Wire for #500822 PN Motor Anima25 Anima35 Anima 55 Anima75
1 x 100mm Motor Sensor Wire for #50085 PN Motor Anima25 Anima35 Anima 55 Anima75
1 x 125mm Motor Sensor Wire for Atomic; Hobbywing; MWX; Motor
1 x Wire Connector ESC to Receiver #500826
1 x JST2.0 Female plug to 2S LiPo Battery
