500833

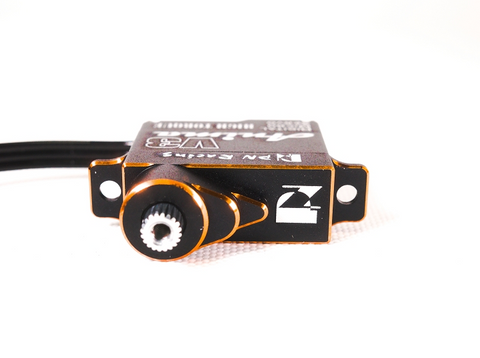

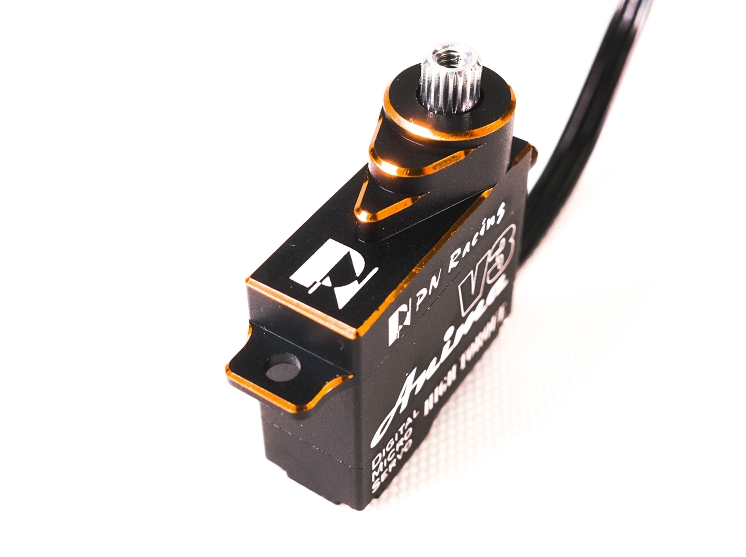

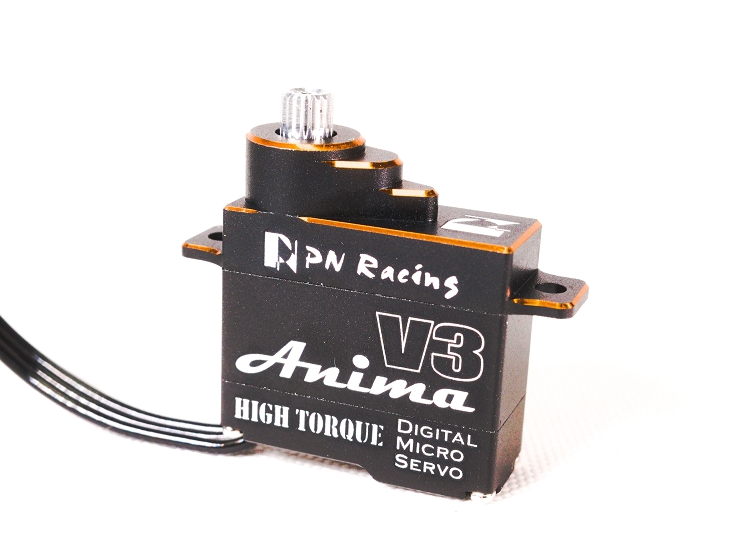

Anima V3 High Torque Titanium Gear Digital Micro Servo
Operating Voltage Range 4.8-8.4V
No Loading Speed:
0.074sec/60°@4.8V
0.067sec/60°@6.0V
0.059sec /60° @ 7.4V
0.051sec /60° @ 8.4V
Peak stall Torque:
1.79 kg-cm (25 oz-in) @4.8V
2.21 kg-cm (30 oz-in) @6.0V
2.59 kg-cm (36 oz-in) @ 7.4V
3.01 kg-cm (41 oz-in) @ 8.4V
Titanium Gear
Coreless Motor
Aluminum Case
Size: 20x8x17.8mm (0.78 x 0.31 x 0.70 in)
JST1.5 60mm / 28AWG
Spline: 20T
Weight: 7g
Programmer: Only work with 500804U Servo Programmer
Comes with a POM servo horn set.
Compatible with: Atomic BRZ BZ BR3, GL Racing GLA GLR GLR-GT GLF, HRC GLD, RTRC, PNR3.0 chassis
