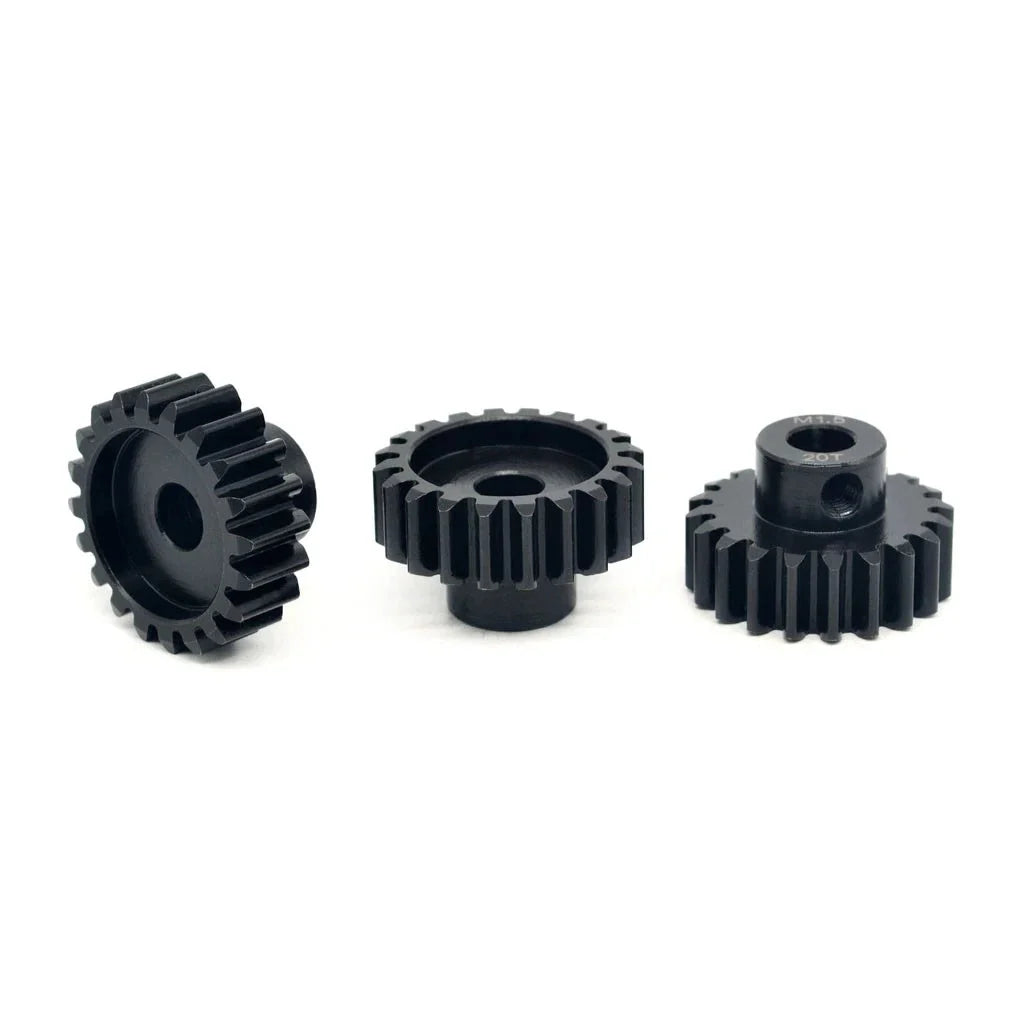

Powerhobby Mod 1.5 25T Steel Pinion Gear w/ 8mm Bore

Powerhobby Mod 1.5 25T Steel Pinion Gear w/ 8mm Bore

Description

Fine-tune the gearing of your high-powered RC vehicle with a Powerhobby Mod 1.5 Steel Pinion Gear. Designed for motors with an 8mm output shaft, these heavy-duty pinions provide the strength and durability needed for large-scale RC cars, trucks, speed-run vehicles, and other demanding performance applications.

The durable steel construction is designed to handle the increased power and drivetrain loads produced by large-scale brushless systems. Tooth-count options from 18T through 25T allow you to adjust acceleration, top speed, motor load, and overall vehicle performance.

Higher tooth counts may provide increased top speed but can also place additional load on the motor, ESC, batteries, and drivetrain. Gearing should always be matched carefully to the vehicle, motor system, spur gear, and driving conditions.

Features

• Mod 1.5 gear pitch
• 8mm motor-shaft bore
• Durable steel construction
• Designed for high-powered RC applications
• Multiple tooth-count options
• Suitable for large-scale and custom RC builds
• Available from 18T through 25T

Includes

• One Mod 1.5 steel pinion gear

Fits

• RC motors with a compatible 8mm output shaft
• Vehicles using a Mod 1.5 spur gear
• Compatible large-scale RC cars and trucks
• Custom high-power, speed-run, and performance builds

Always confirm the gear pitch, motor-shaft diameter, motor-mount adjustment range, and recommended gear ratio before installation. Set the gear mesh carefully and monitor motor and ESC temperatures after changing the gearing.

Tooth Counts and Part Numbers

• 18T: PHB5123
• 19T: PHB5124
• 20T: PHB5125
• 21T: PHB5126
• 22T: PHB5127
• 23T: PHB5128
• 24T: PHB5129
• 25T: PHB5130
