TP119

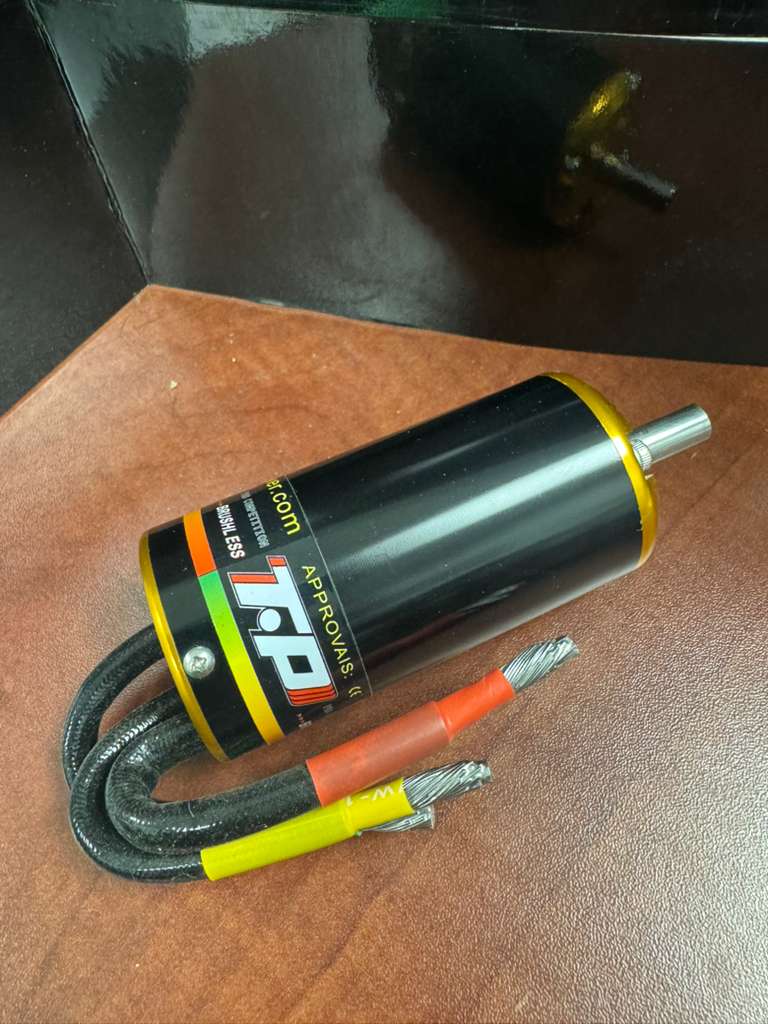

TP POWER 4050 SVM 3260KV BRUSHLESS MOTOR UP TO 6S
TP4050-SVM Series are the new competition 4-pole motors with more torque and power under high RPM design.
OPEN VENT DESIGN FOR BEST COOLING OPTIONS
KV: 3260
Winding: D
Max Current (A): 229
Max Voltage (V): 27.9
Continuous Power (W): 3000
Max Power (W) - Less than 10 seconds for safety: 6400
Max RPM - Less than 10 seconds for safety: 91K
No-load current (A): 4.5
Internal Resistance (Ohm): 0.001888
Weight (g): 467
Shaft diameter: 5 mm or 8mm
Output Shaft Length: 18mm for 5mm diameter, 24mm for 8mm diameter
Diameter x length (mm): 40 x 82
Bolt pattern: 4-M4-25
Poles: 4 pole
