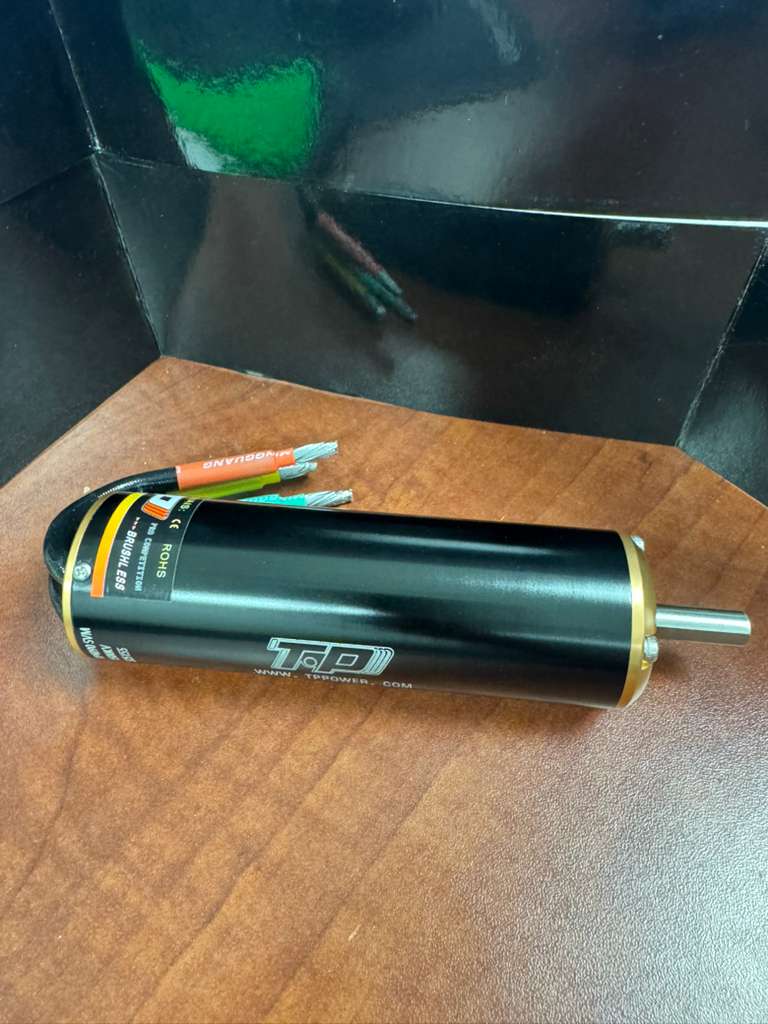

TP POWER USA 4090-CM 1812-KV BRUSHLESS MOTORS 8MM SHAFT
The TP 4090-CM series is our popular series for high-power and high-speed application, with the max power of 13000W and max RPM of 55K!
Parameters:
Can: Smooth
Wind: D
KV: 1812
Max Amps (A): 420
Max Volt (V): 8S
Continuous Power (W): 7000
Max Power (W): 13000
Max RPM: 55K
Internal Resistance (Ohm): 0.0028
No-load Current (A): 4.0
Shaft Diameter (mm): 8
Shaft Length (mm): 24
Diameter X Length (mm): 40X127
Mounting Pattern: 4 sets of M3 & M4 screw holes on the same front plate; with 25mm diagonal distance.
Weight: 820g
Pole: 4
