93424-4-BLUE
MODEL SPECS
| Name: | 4-Tec 2.0 Nissan 240SX Brushless |
|---|---|
| Type: | On-Road Car |
| Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 2.28 pounds (1.30 kg) |
| Length: | 18.38 inches (467 mm) |
| Width: | 8.50 inches (216 mm) |
| Front Track: | 7.87 inches (200 mm) |
| Rear Track: | 7.87 inches (200 mm) |
MOTOR SPECS
| Name: | Velineon V3300 (patent pending) |
|---|---|
| Motor Type: | Sensorless brushless |
| Weight: | 7.48 ounces (212 g) |
| Length: | 3.15 inches (80 mm) |
| Diameter: | 1.53 inches (39 mm) |
| Shaft Size: | 3 mm |
| Connector Type: | 3.5 mm Bullet |
ESC SPECS
| Name: | VX3 Electronic Speed Control |
|---|---|
| ESC Type: | Brushless |
| Voltage Range: | 2-cell or 3-cell LiPo (NiMH not supported) |
| Case Size: | 2.40″ (61 mm) x 2.09″ (53 mm) x 1.69″ (43 mm) |
| Weight: | 4.20 ounces (119 g) |
| BEC Voltage: | 6.0 volts |
| Motor Connectors: | 3.5 mm bullet |
| Battery Connectors: | Traxxas High-Current Connector |
- 35+ mph with 2s LiPo. 50+ mph with 3s LiPo (no gearing change required)
-

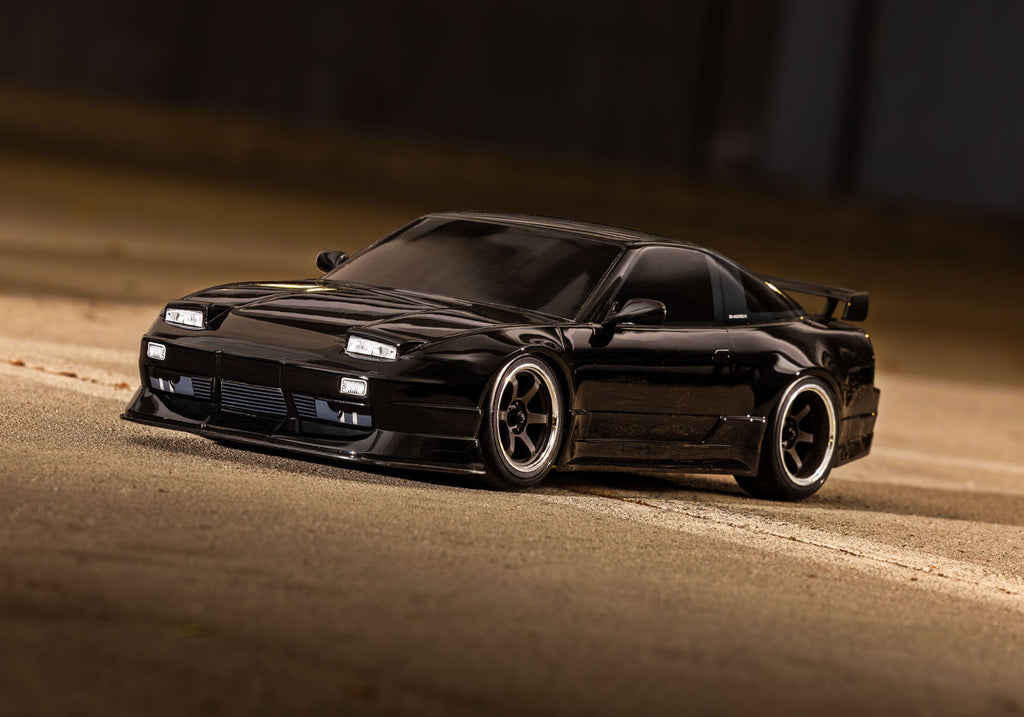

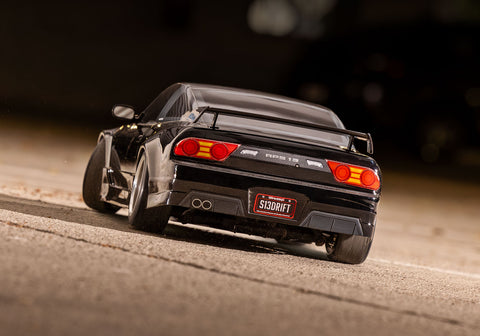

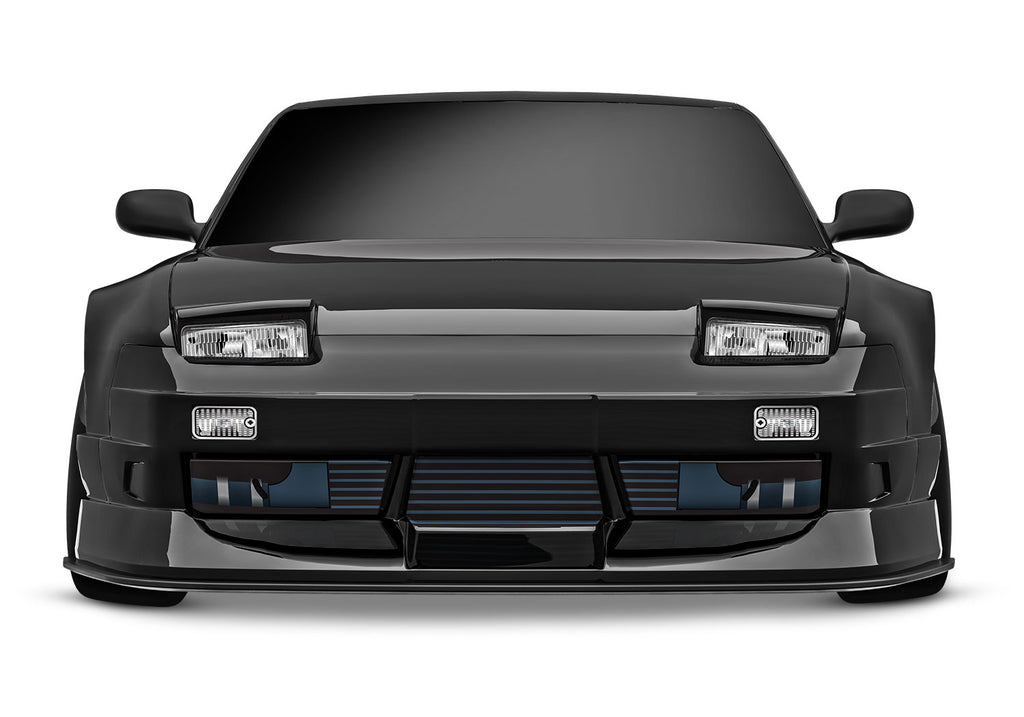

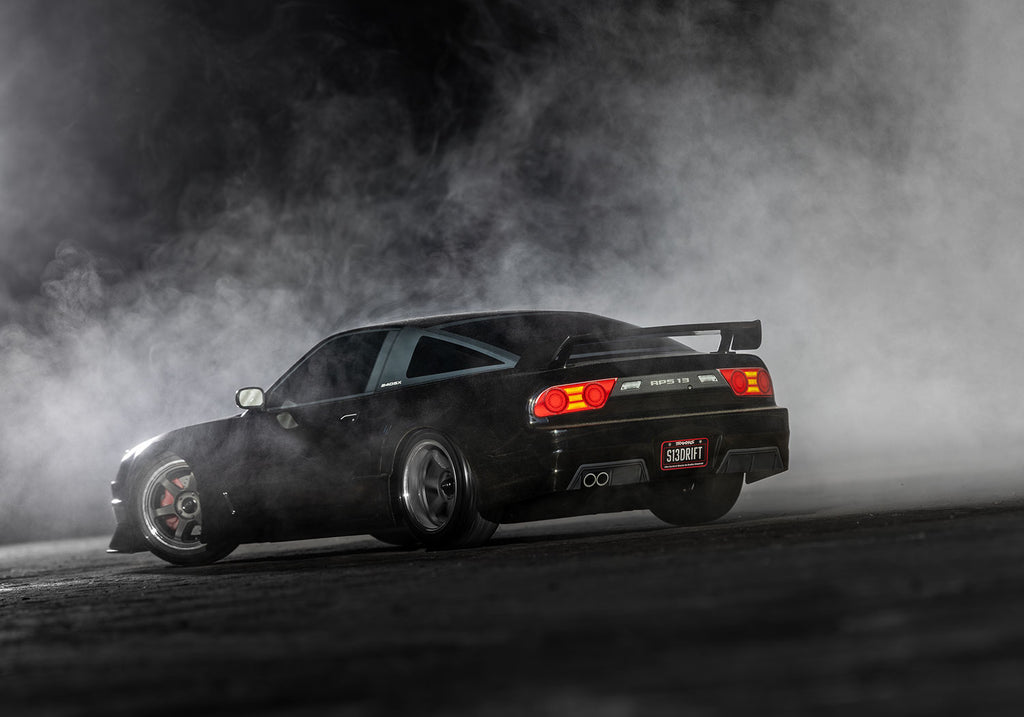

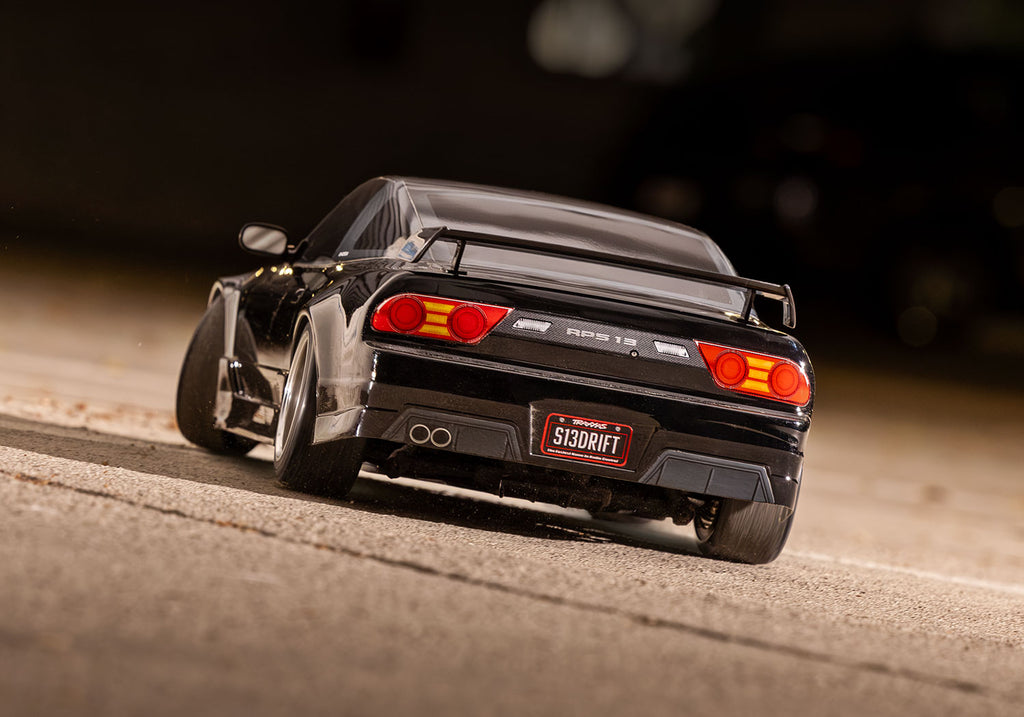

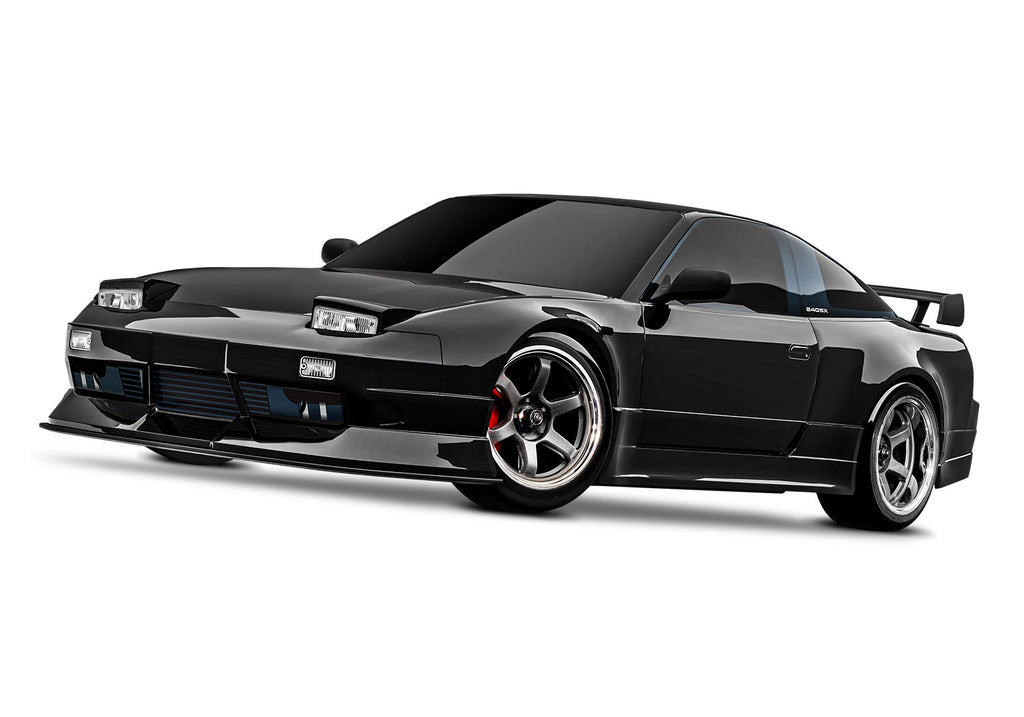

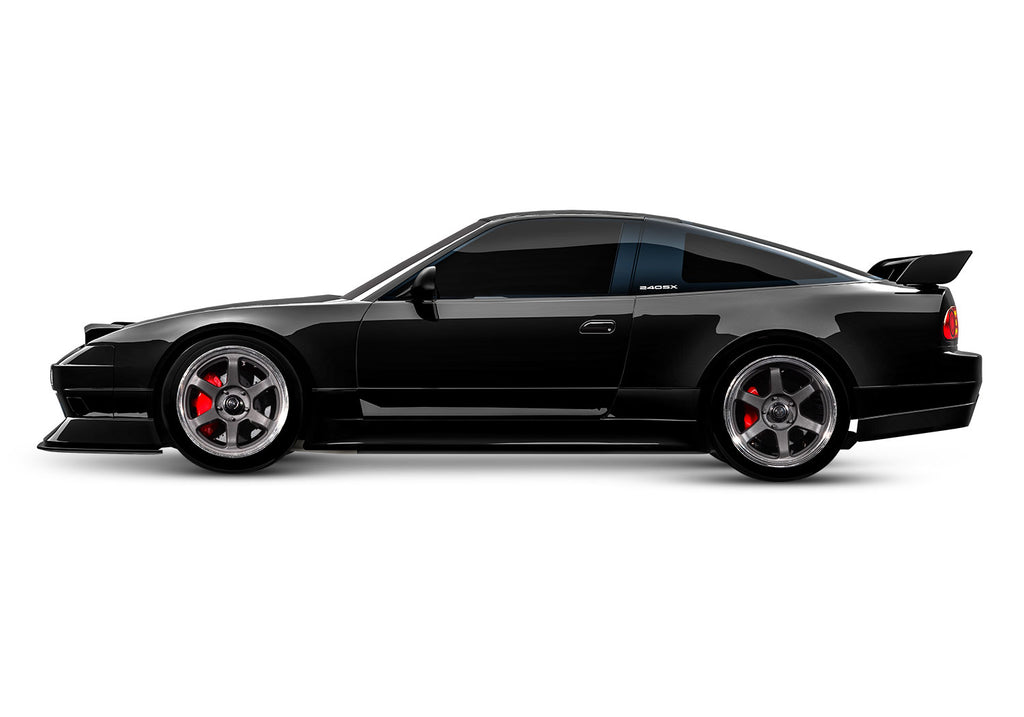

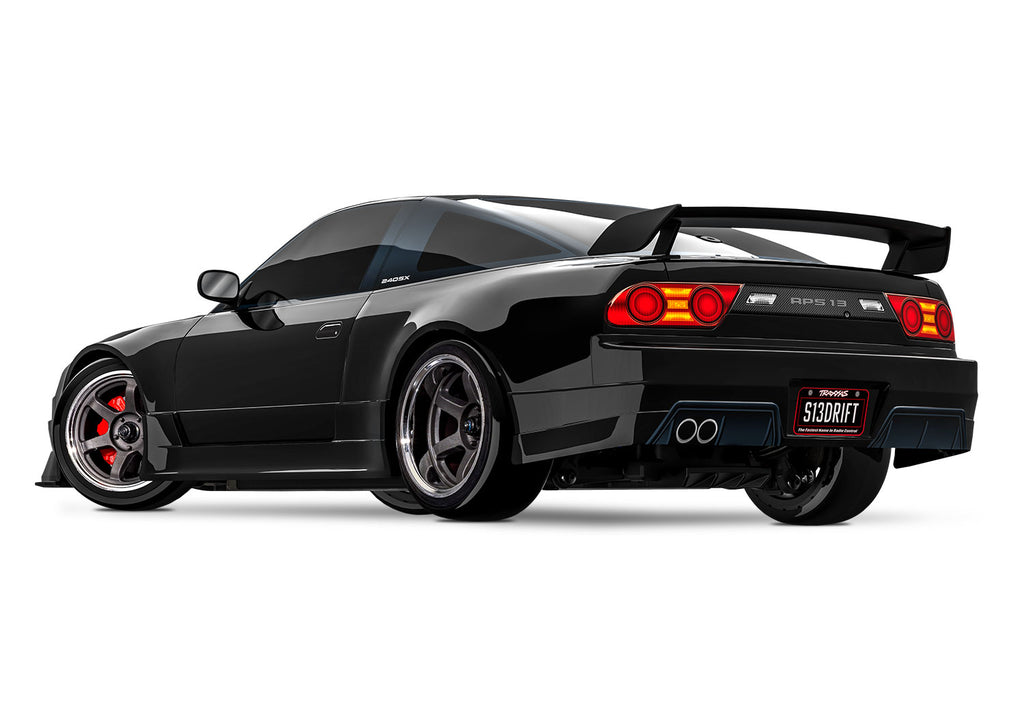

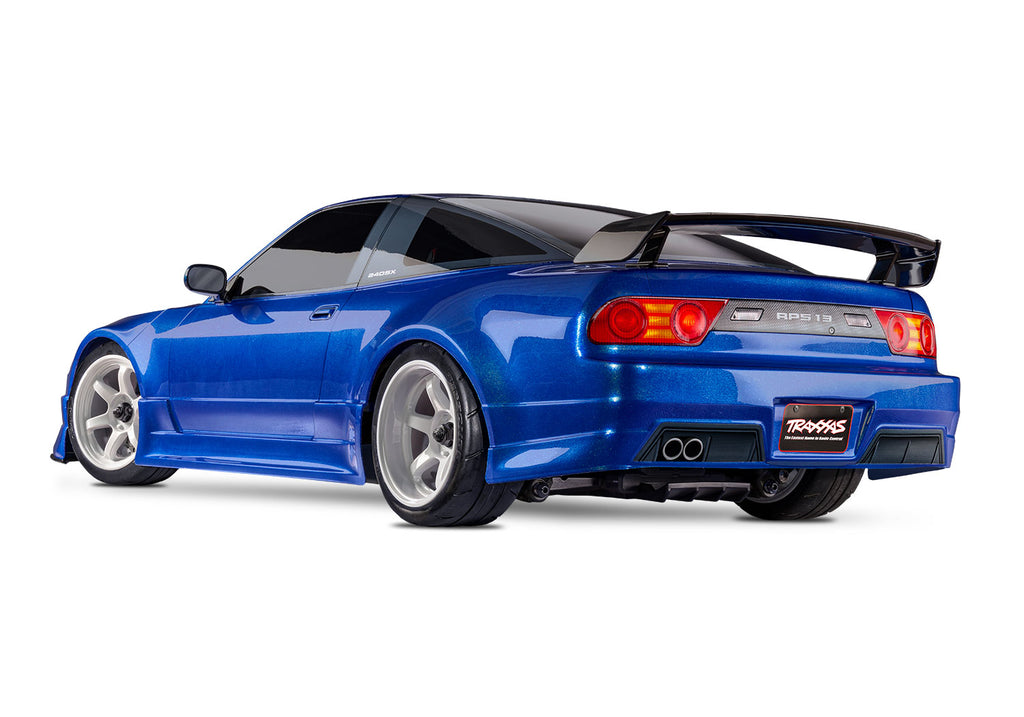

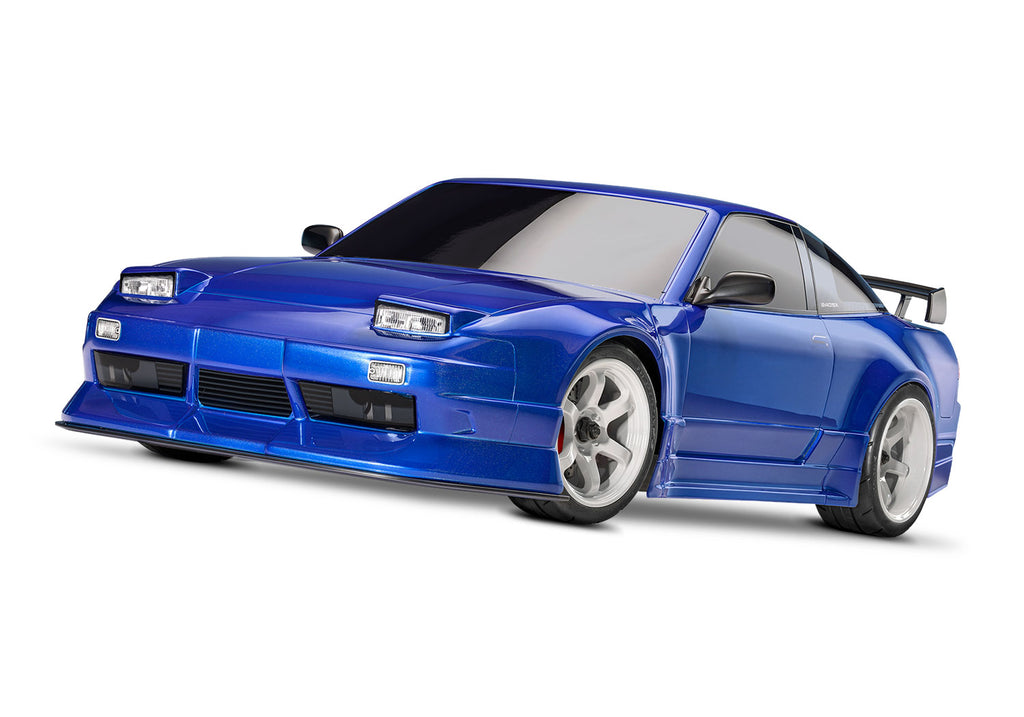

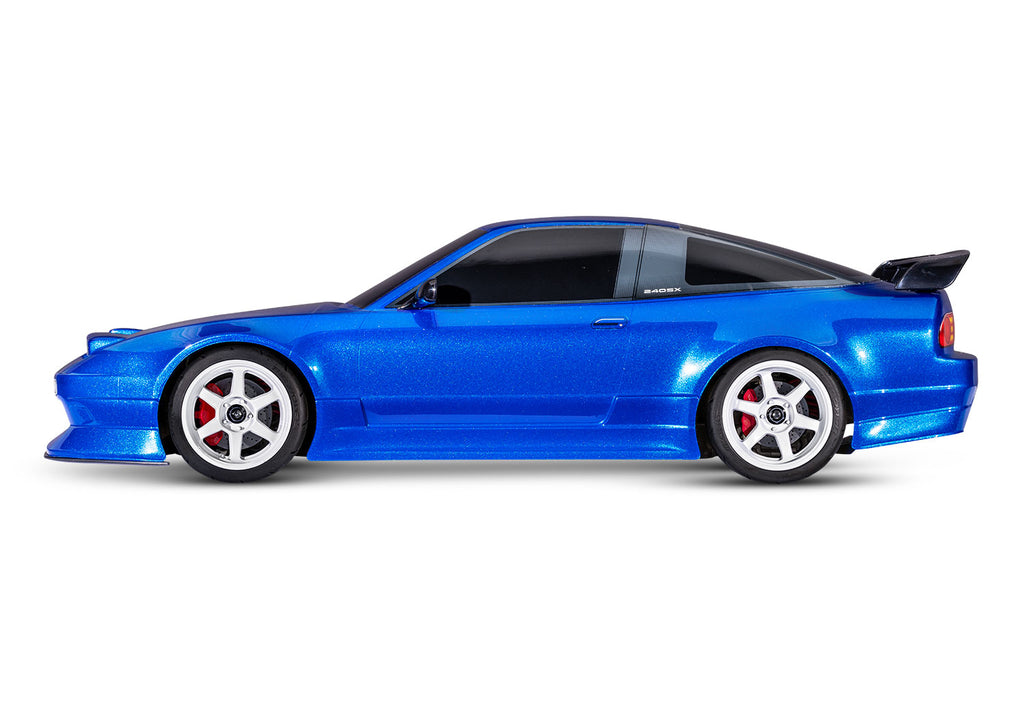

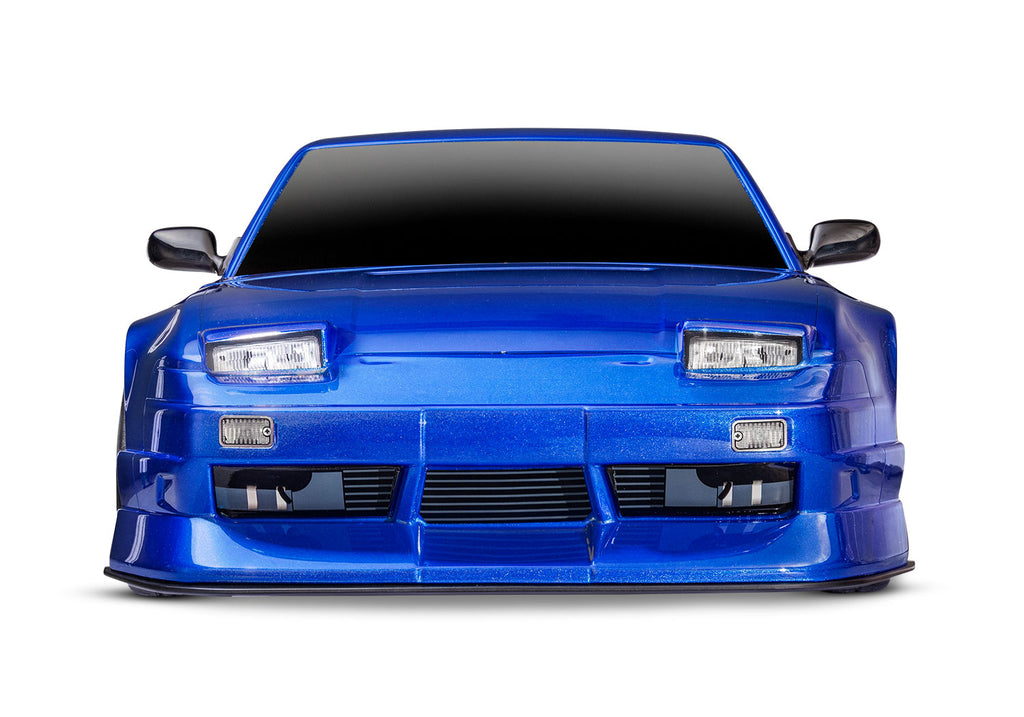

Officially Licensed Nissan® 240SX Body
- Clipless body eliminates body post holes
- Injection molded details
- Grille, splitter, side mirrors, and spoiler

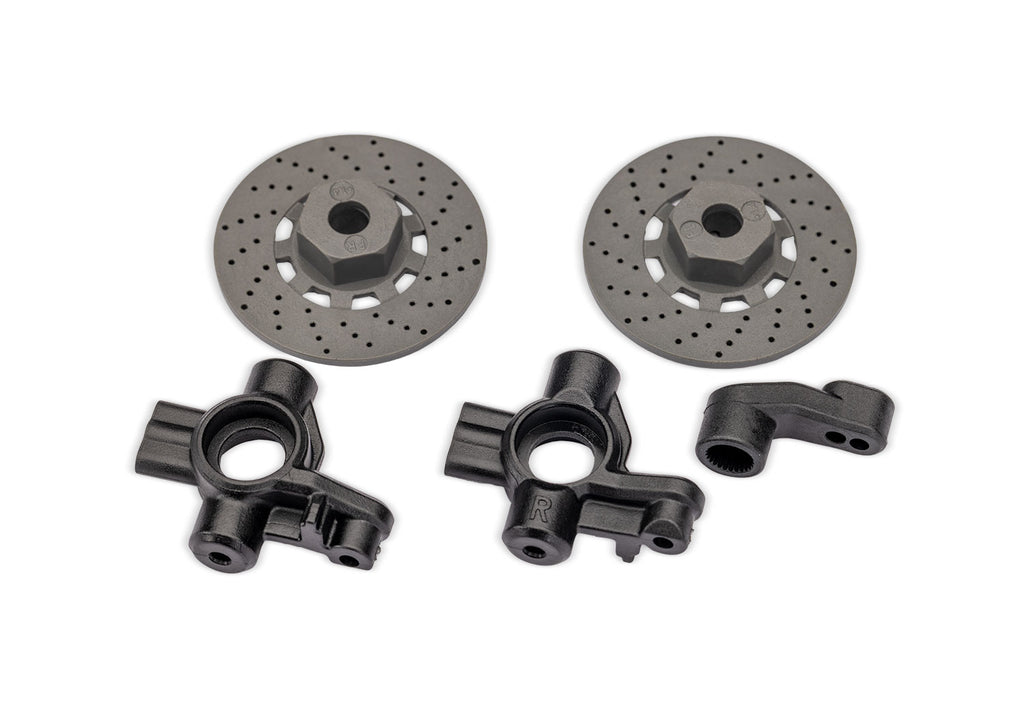

- Replica brake discs with red calipers
-
Clipless Body Mounts
- Quick and easy removal of the body
- Reinforced body mounts integrated into molded details
-
Velineon® VX3 Waterproof Electronic Speed Control
- Large aluminum heat sink
- Three programmable drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Modeâ„¢ - 50% forward / brake / 50% reverse (patented)
- Traxxas EZ-Set® one-button setup
- Real-time telemetry via Traxxas Linkâ„¢
- Compatible with 2s and 3s LiPo batteries (NiMH not supported)
-
Velineon V3300 Brushless Motor
- Ultra high-temperature sintered Neodymium magnets provide massive torque and linear power
- 3300 Kv optimized for power and efficiency in 1/10th scale vehicles
- 5 mm output shaft
- Internal cooling fan for longer run times
- Low-maintenance design
- Efficient, high-speed ball bearings
-
TQi™ Sport 2.4 GHz 2-Channel Radio System with TSM®
- Removable grip adapter for smaller hands
- High-output signal delivers outstanding range
- Simple one-button programming
- 30-model memory
- 3-channel micro receiver with fail-safe security
- Watertight receiver box with O-ring sealed cover
-
Traxxas Stability Management (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the truck
- Activated or deactivated directly from the transmitter
-
Steering
- 2057 waterproof, metal-gear servo
- Full metal gear train for improved durability
- Integrated servo saver for increased precision
- 2057 waterproof, metal-gear servo
-

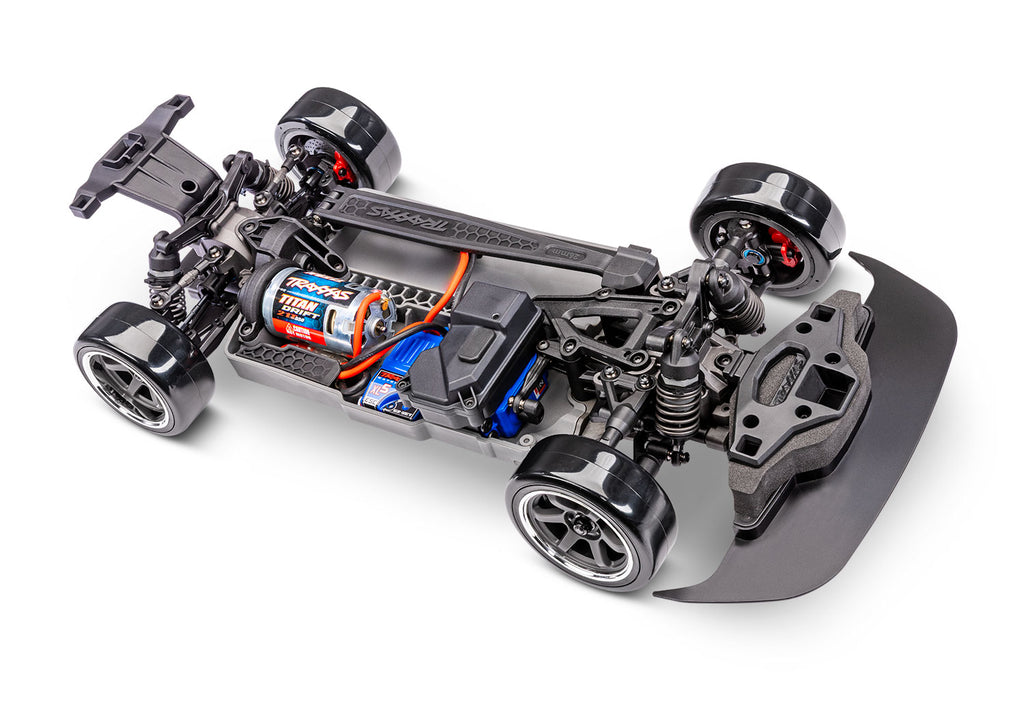

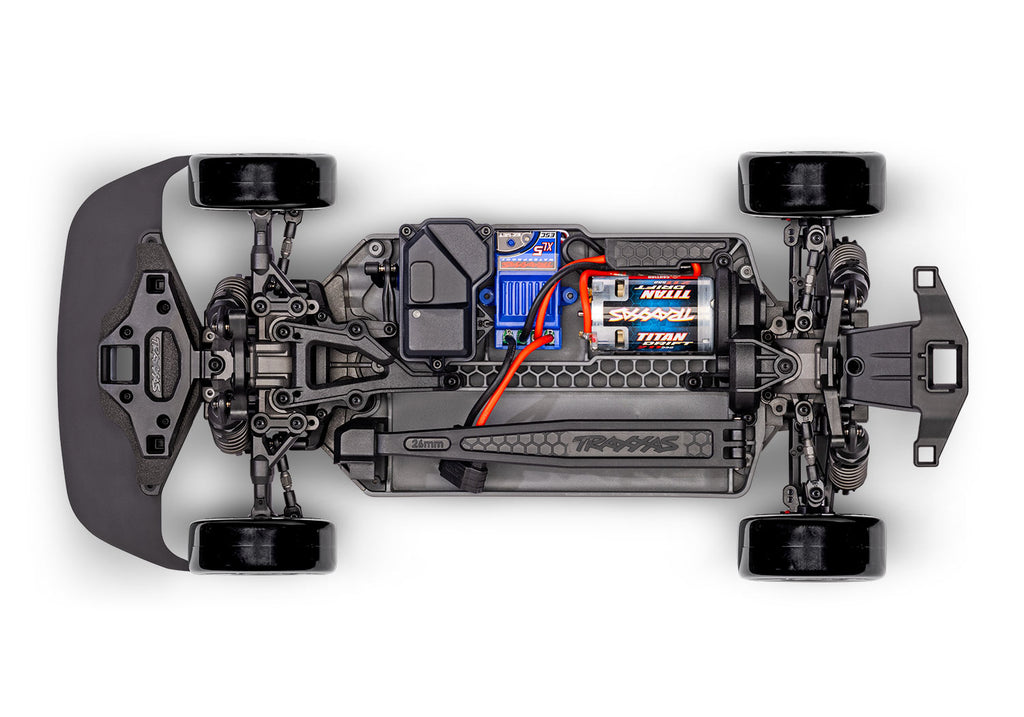

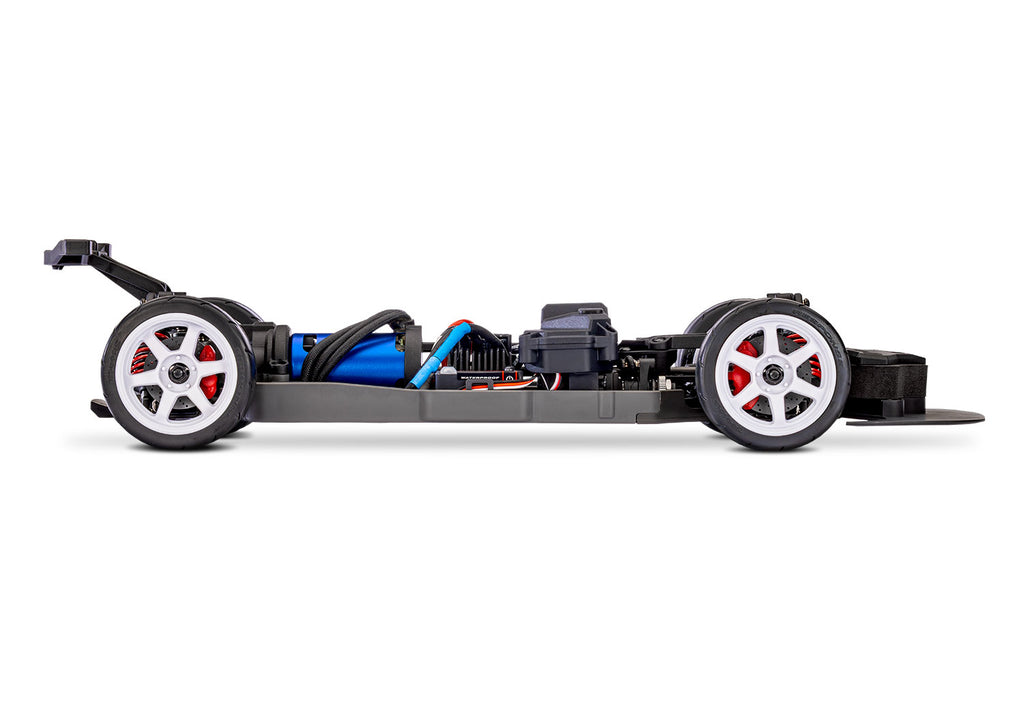

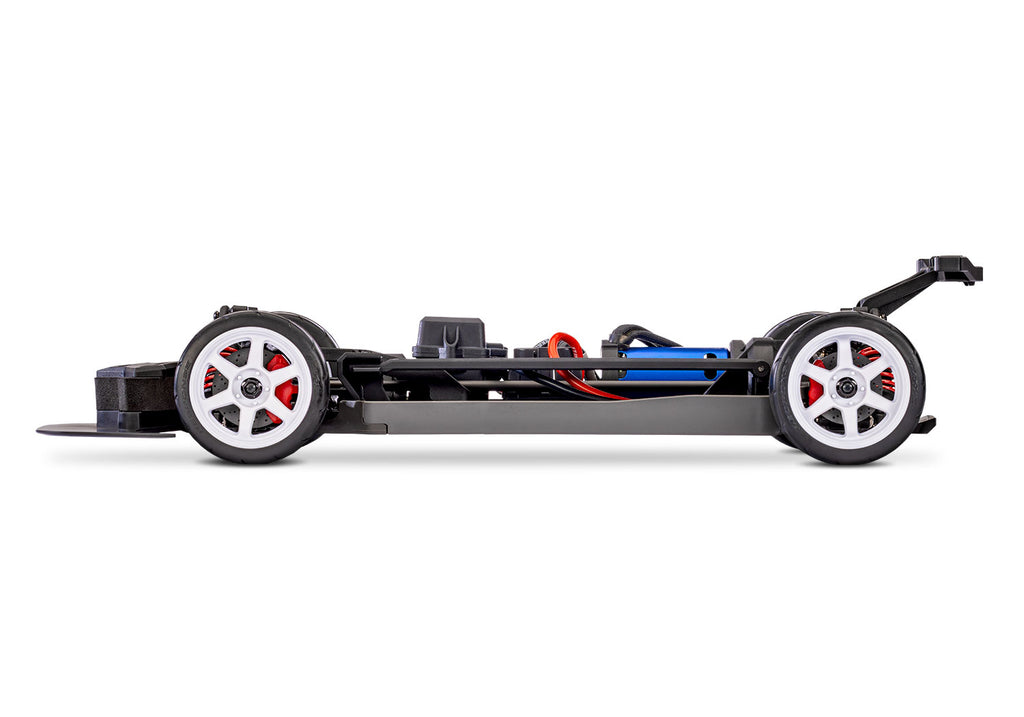

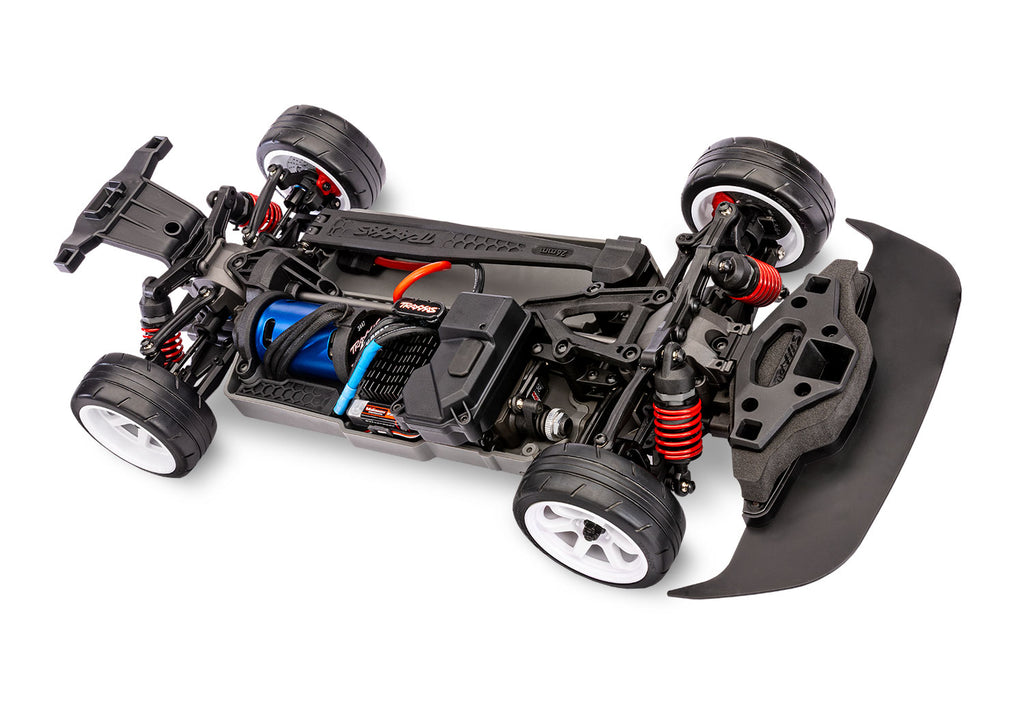

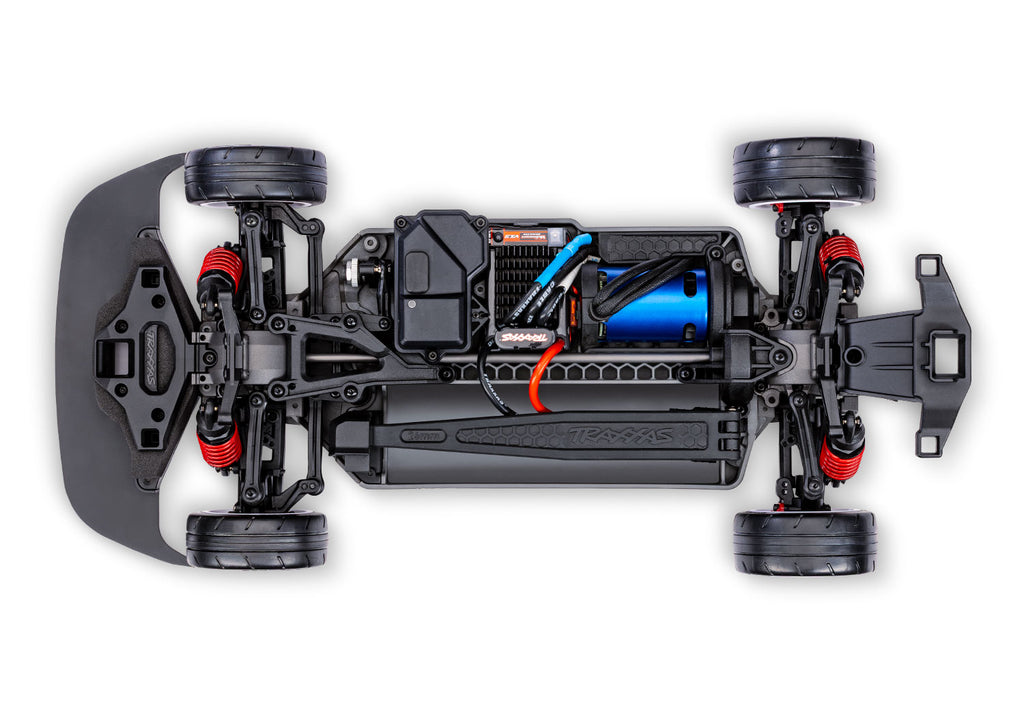

Low Center of Gravity (Low CG) Chassis
- Positions weight low for improved handling
- Smooth underside resists drag and snags
- Modular interlocking chassis pieces
- Improves rigidity and tightens tolerances
- Allows for easy maintenance
-
Adjustable Battery Hold Down
- Easy, secure battery installation
- Swivels to allow different height batteries
- Locks securely without pins or parts to lose
-

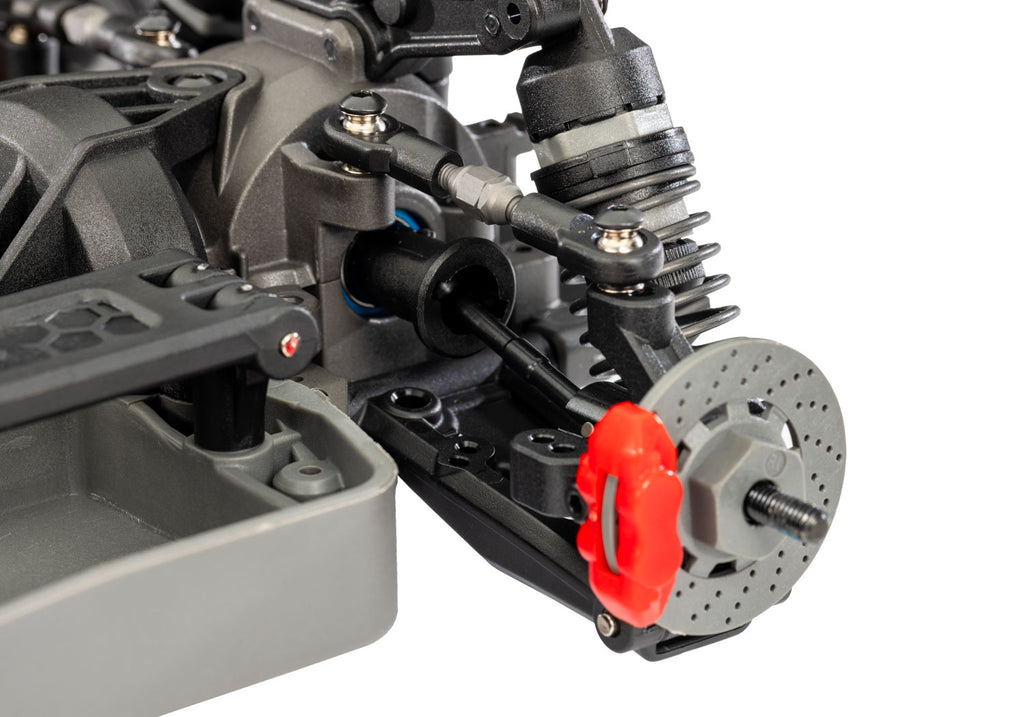

High Performance Suspension
- Captured links won’t pop off
- Geometry tuned for precise handling
- Dual rear camber link mounts
-

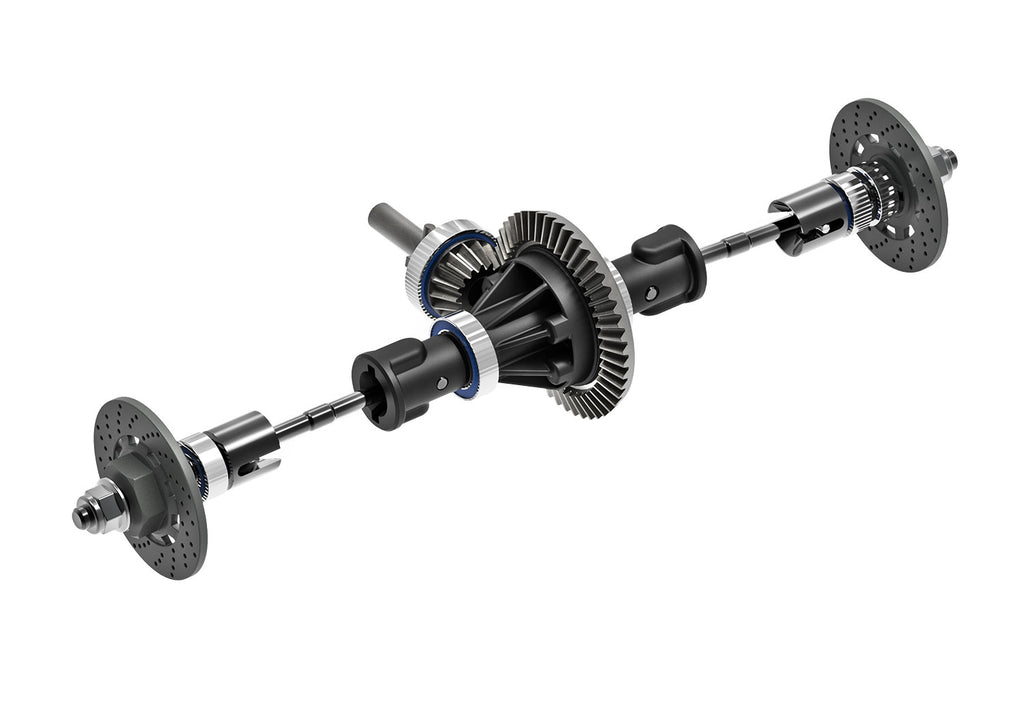

Driveline
- Full-time shaft driven 4-wheel drive
- Steel center driveshaft with center bearing support
- Direct drive
- Sealed, steel-gear differentials
-

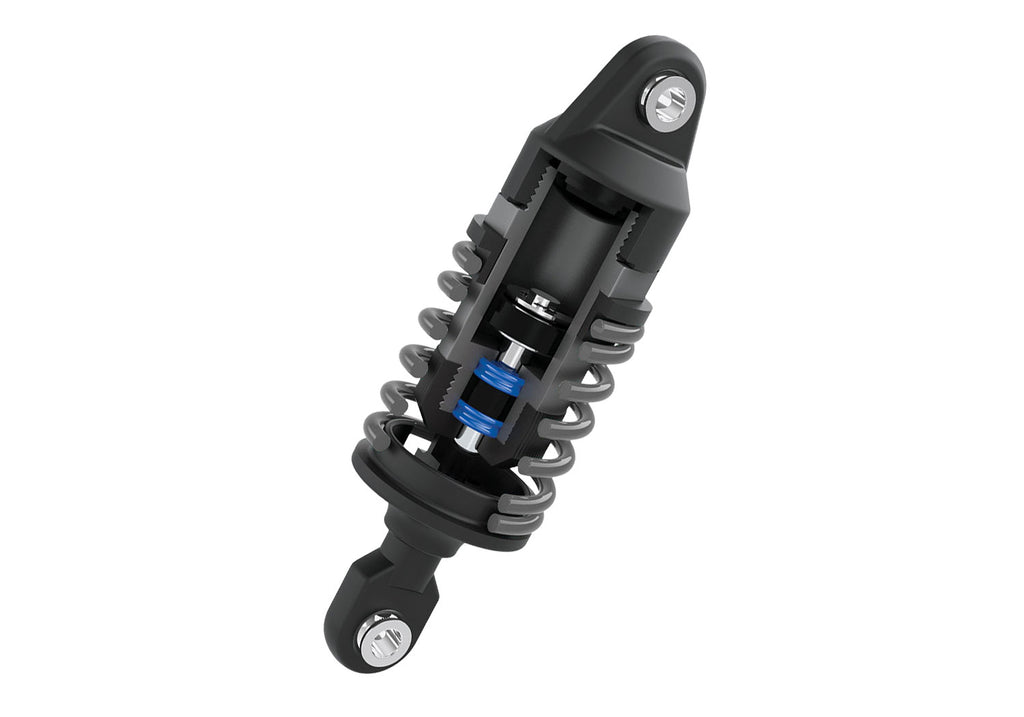

Springs and Shocks
- Fully adjustable oil-filled Ultra Shocksâ„¢ with X-ring technology
- Red powder coated shock springs feature a responsive spring rate
-

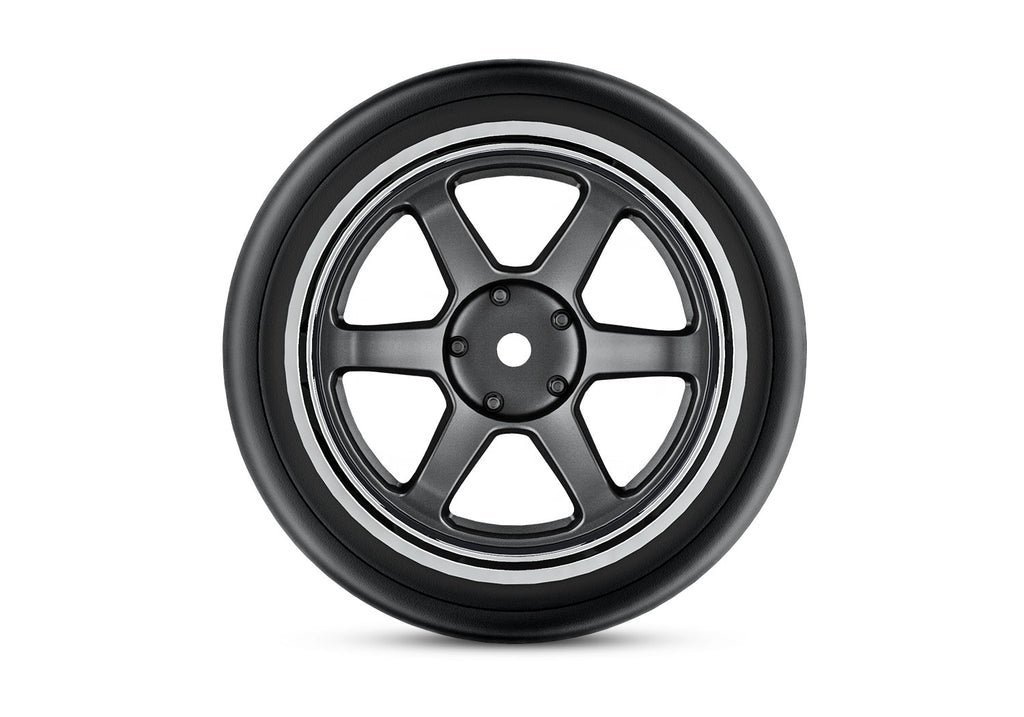

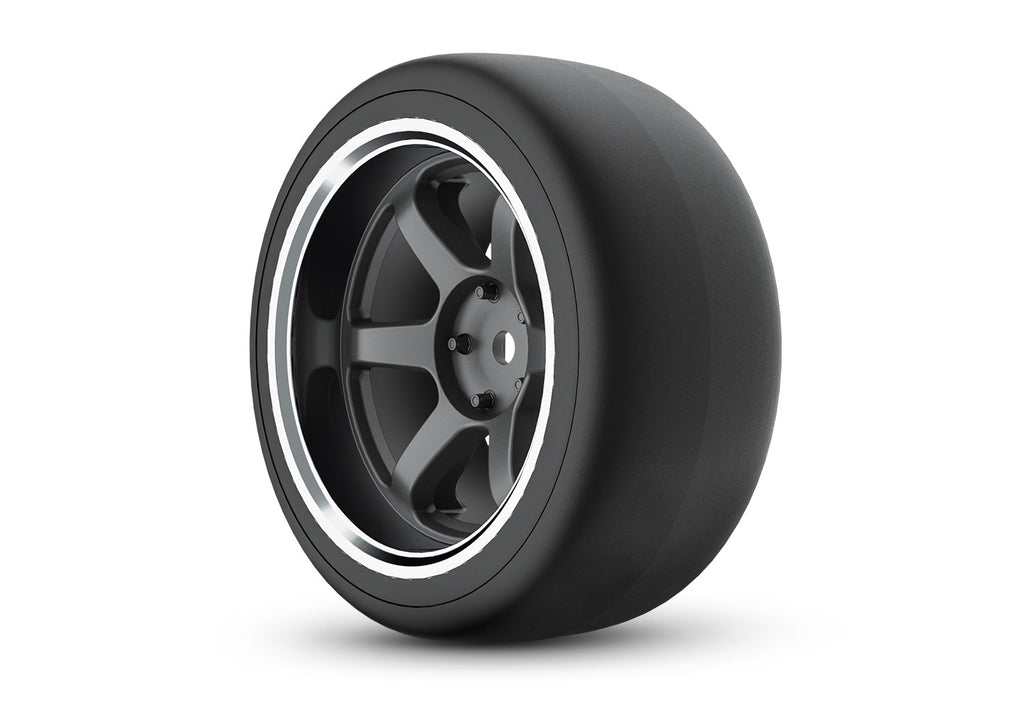

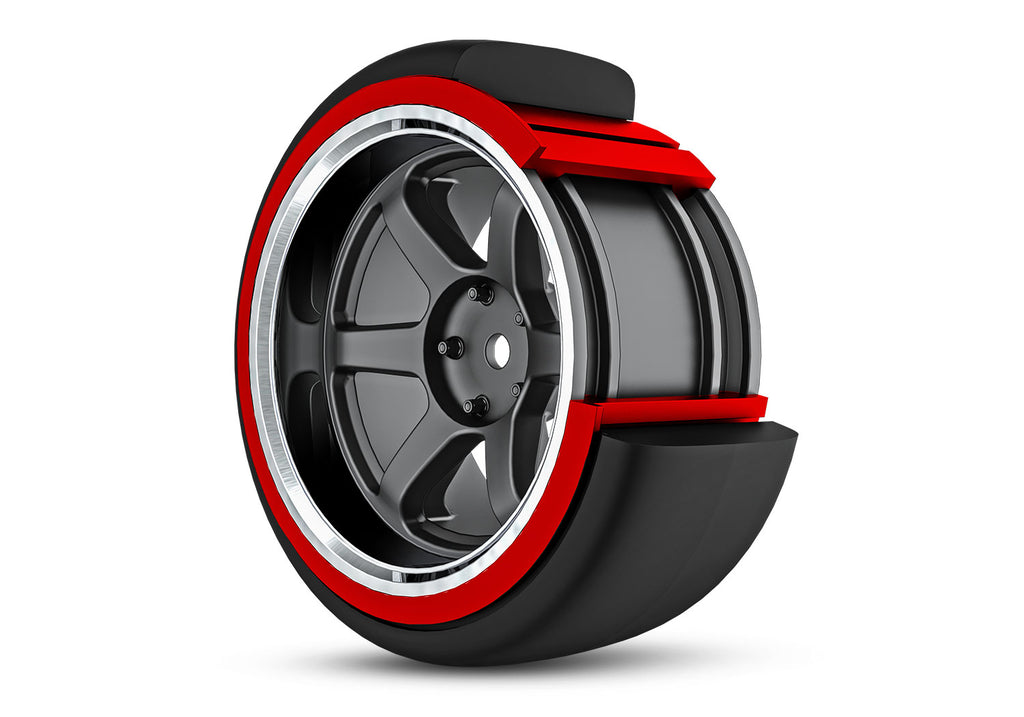

Wheels and Tires
- Six-spoke tuner wheels
- High-performance street tires with long-wearing compound
- Staggered street tires are larger in the rear
- Rubber-Sealed Ball Bearings

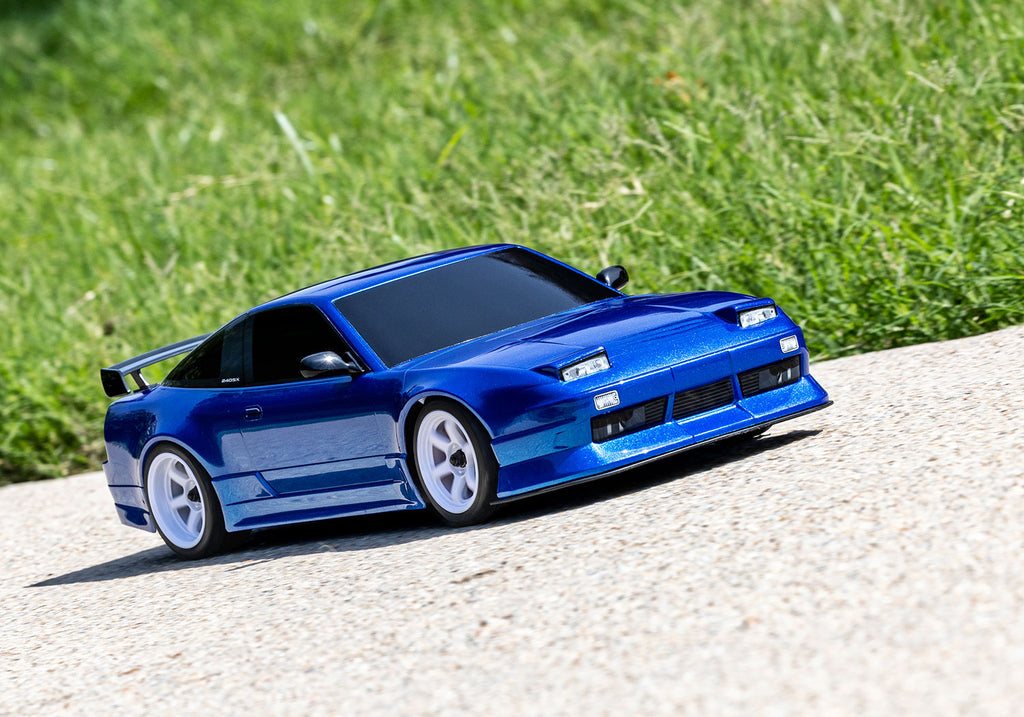

MODEL 93424-4: 4-Tec® 2.0 Nissan 240SX: 1/10 scale AWD on-road car, fully-assembled, waterproof, Ready-To-Race®, with TQi™ Sport 2.4 GHz 2-channel radio system with TSM®, Velineon® 3s brushless power system, and clipless painted body. Requires: battery and charger.
What’s In The Box:
- 4-Tec 2.0 Nissan 240SX on-road car with VX3 ESC and V3300 motor
- TQi Sport 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- Batteries
4-Tec 2.0 requires a single 2-cell or 3-cell LiPo battery.
- Charger
The Traxxas EZ-Peak® charger 2970 is recommended for easy and fast charging performance.
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
