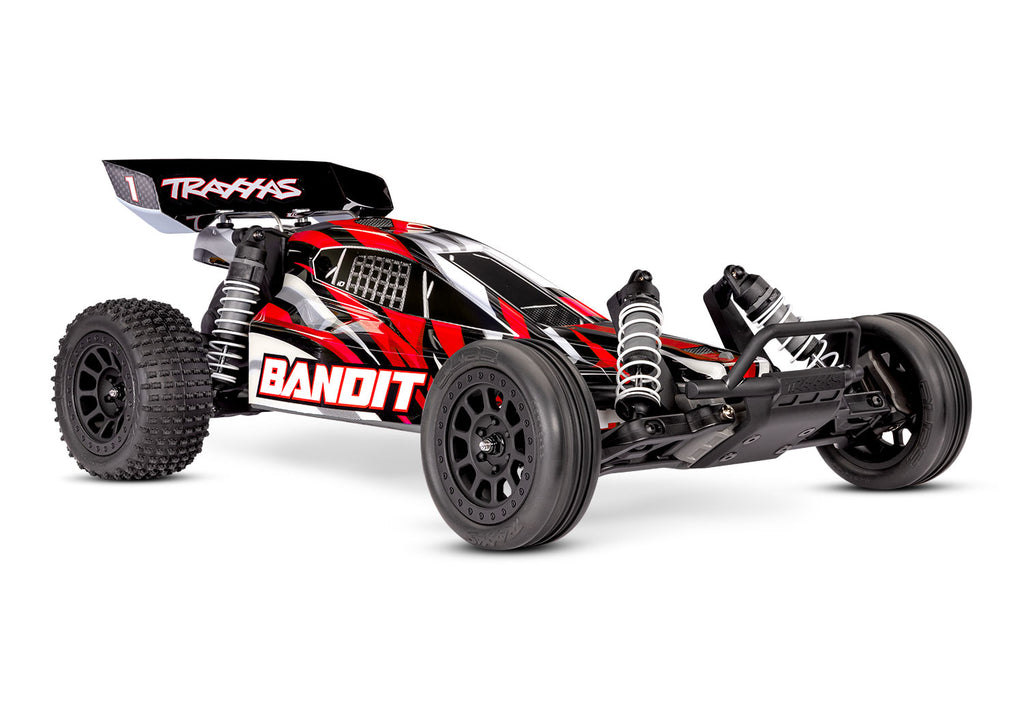

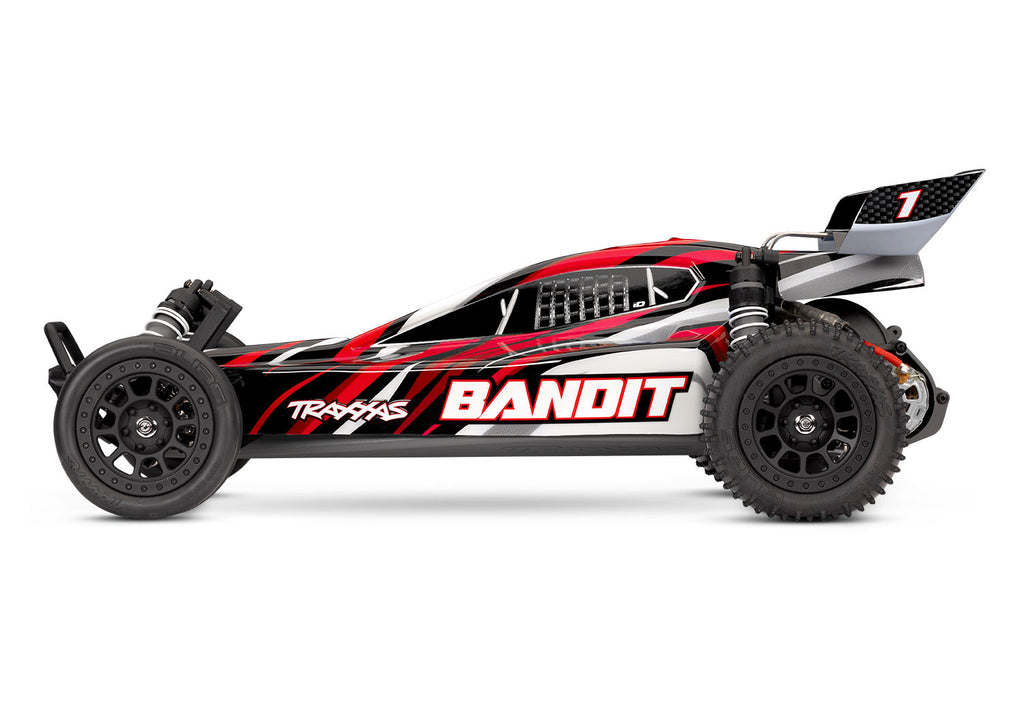

24254-8-REDX
MODEL SPECS
| Name: | Bandit HD w/USB-C |
|---|---|
| Type: | Buggy |
| Speed: | 35+ mph with 7-cell battery |
| Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 3 pounds (1.36 kg) |
| Length: | 16.25 inches (413 mm) |
| Width: | 9.84 inches (250 mm) |
| Front Track: | 9.84 inches (250 mm) |
| Rear Track: | 9.84 inches (250 mm) |
| Height: | 7 inches (178 mm) |
MOTOR SPECS
| Name: | Titan® 12T 550 |
|---|---|
| Type: | High-speed brushed motor |
| Weight: | 8.47 ounces (240 g) |
| Length: | 3.07 inches (78 mm) overall length, 2.25 inches (57 mm) can length |
| Diameter: | 1.41 inches (36 mm) |
| Shaft Size: | 3 mm |
| Connector Type: | Bullet |
ESC SPECS
| Name: | Waterproof XL-5 ESC with low-voltage detection |
|---|---|
| Type: | Brushed |
| Case Size: | 1.23 inches (31 mm) / 2.18 inches (55 mm) / 0.61 inches (15 mm) |
| Weight: | 2.44 ounces (69 g) |
| Motor Connectors: | Bullet |
| Battery Connectors: | Traxxas High-Current Connector |
| Power Wire: | 14 gauge |
- ProGraphix® Painted Body
- Pre-painted body with applied decals
- Aggressive, aerodynamic body with rear wing

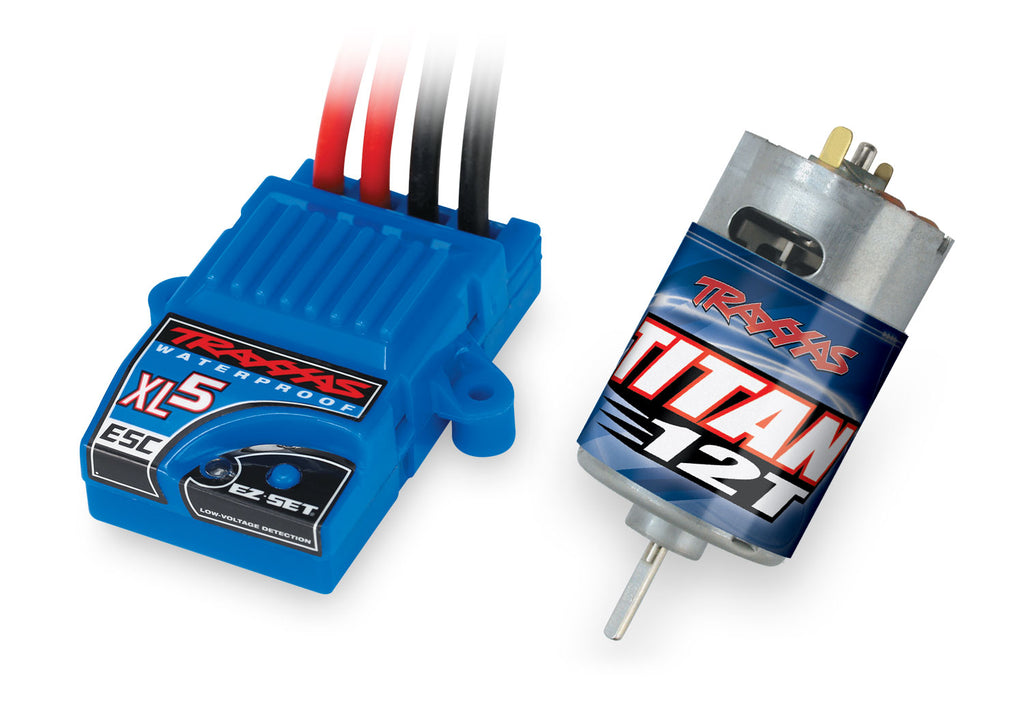

- High-Performance Waterproof XL-5™ Electronic Speed Control
- Innovative waterproof design
- Three drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Traxxas EZ-Set® ;one-button setup
- LiPo and NiMH compatible with two-stage low-voltage detection
- Titan® 550 Motor
- Powerful Titan 12T 550 modified motor with internal cooling fan
- Oversized armature for big torque and increased power handling
- Virtually maintenance-free operation
- TQ™ 2.4 GHz 2-Channel Radio System
- Ergonomic transmitter with internal antenna
- Traxxas 6519 3-channel micro receiver with fail-safe security

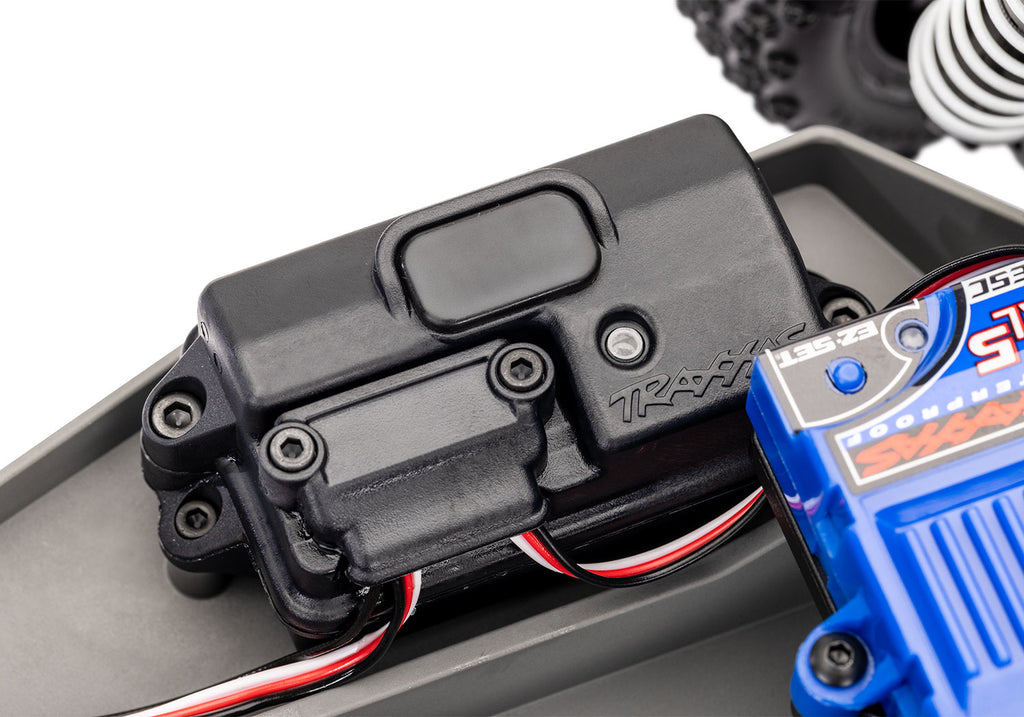

- Sealed watertight receiver box keeps the receiver dry
- Extreme Heavy Duty Parts Installed

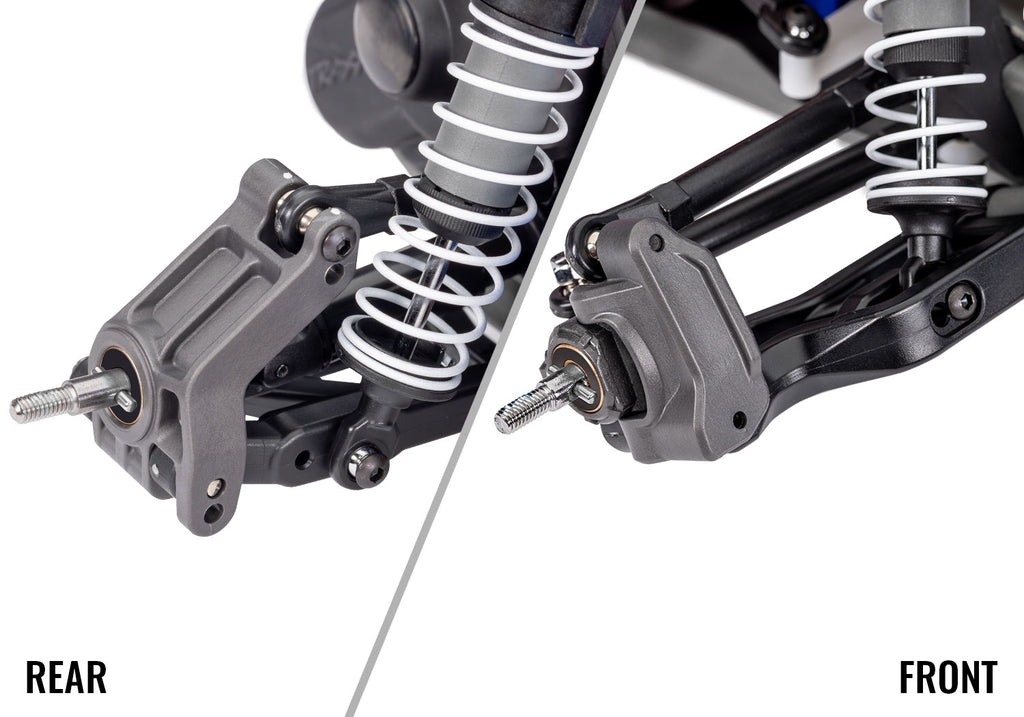

- Strengthened C-hubs, axle carriers, and steering blocks

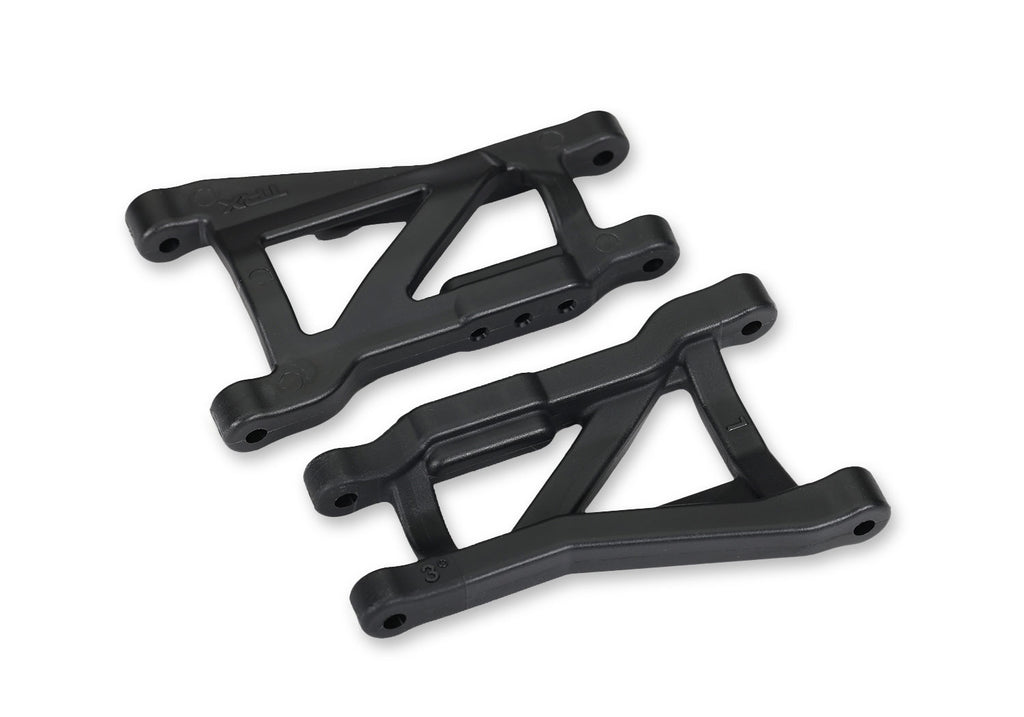

- HD suspension arms

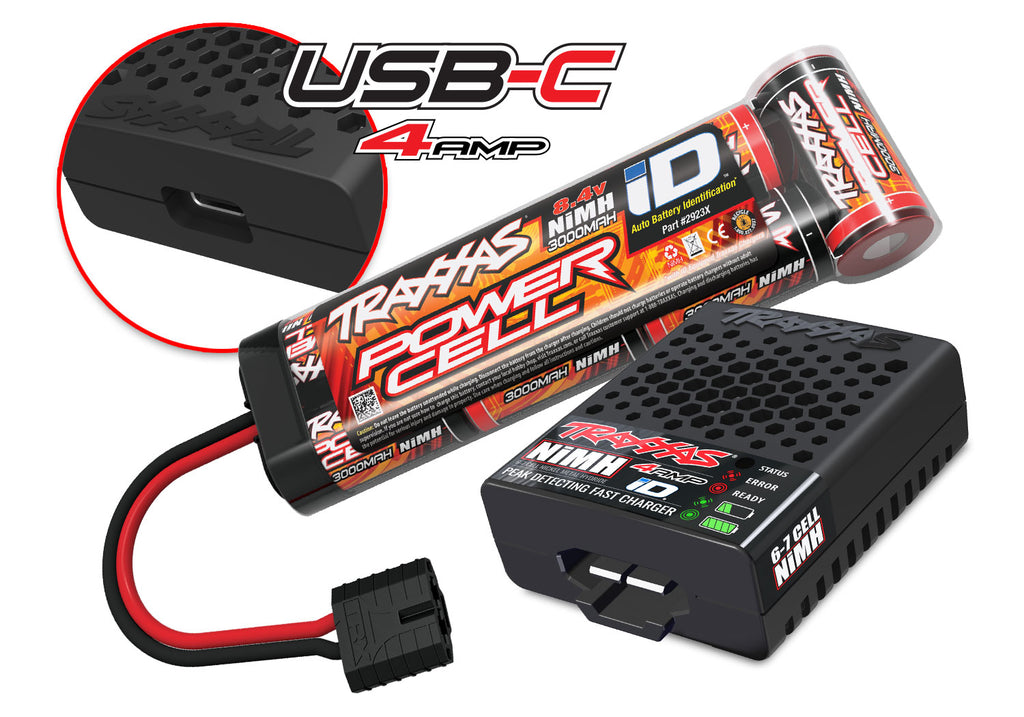

- Includes Battery and Charger
- 4-amp USB-C fast charger
- 3000 mAh Traxxas 7-cell 8.4 V NiMH battery with iD®

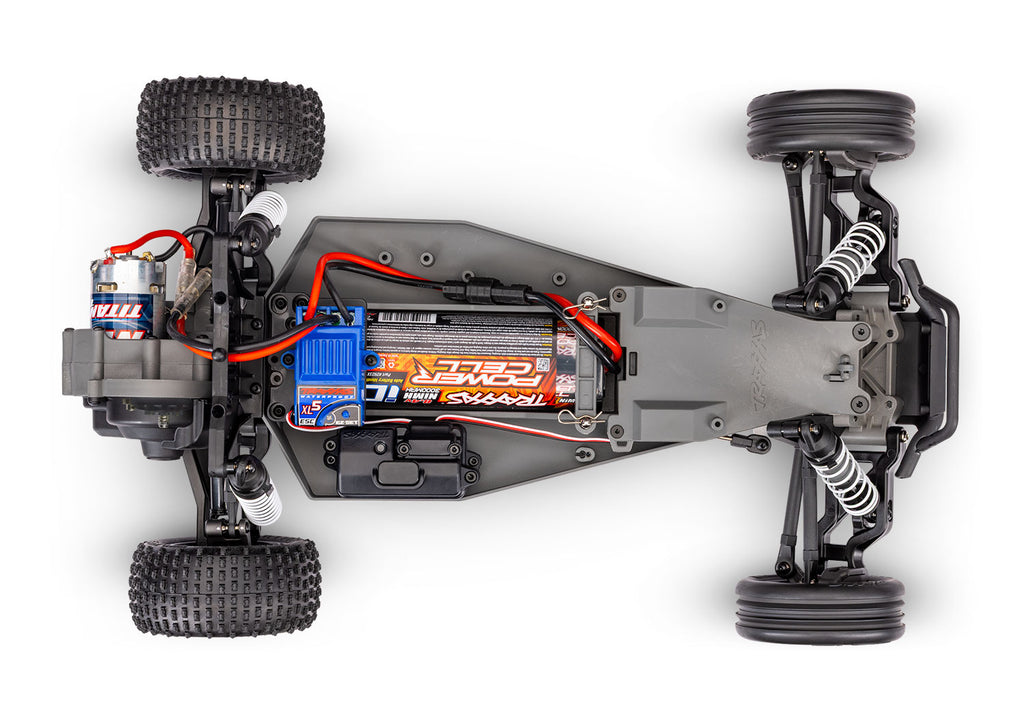

- Tough Fiber-Composite Monocoque Chassis
- Wide, low-profile design for increased stability
- All electronics securely fastened to chassis
- Easy Access Battery Compartment
- Accepts 7-cell flat packs and hump packs
- Accepts 2-cell LiPo batteries
- Transmission and Driveline

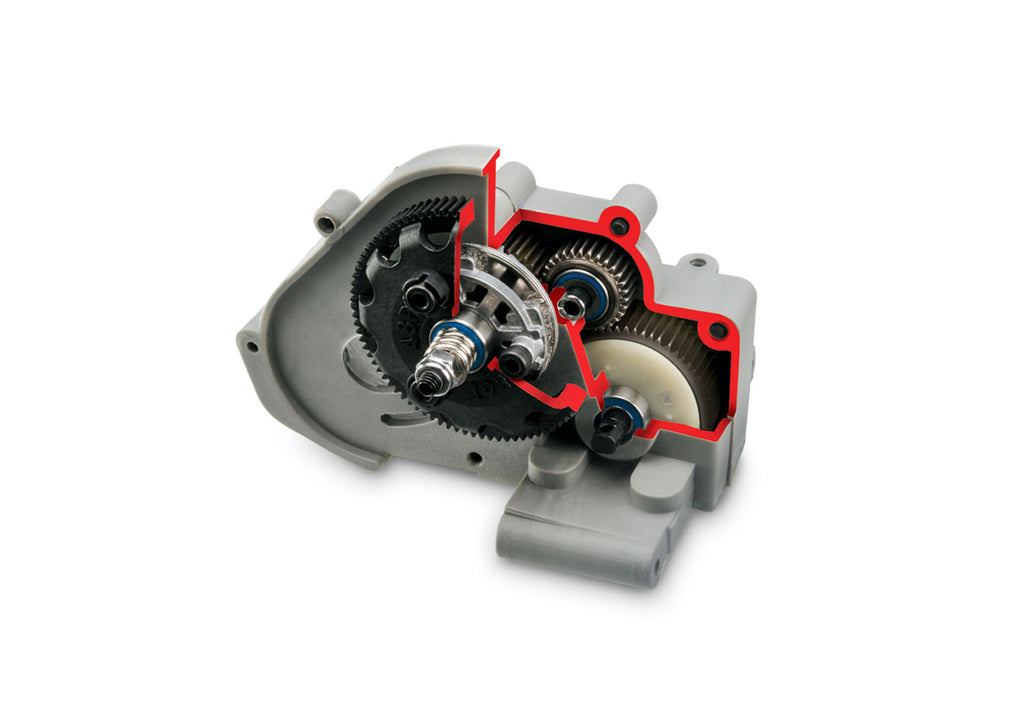

- Brushless-ready Magnum 272™ metal-gear transmission
- Torque-Control™ slipper clutch system
- Planetary gear differential with steel ring gear

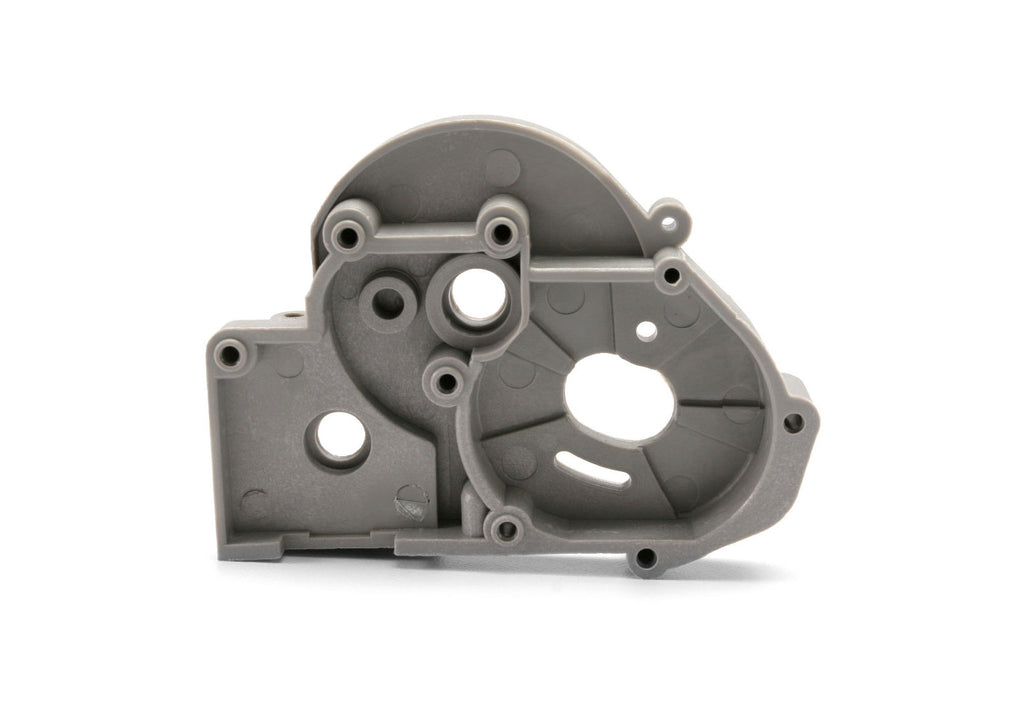

- Sealed gearbox protects the transmission with beefed up motor guard
- External gear cover with easy clutch access

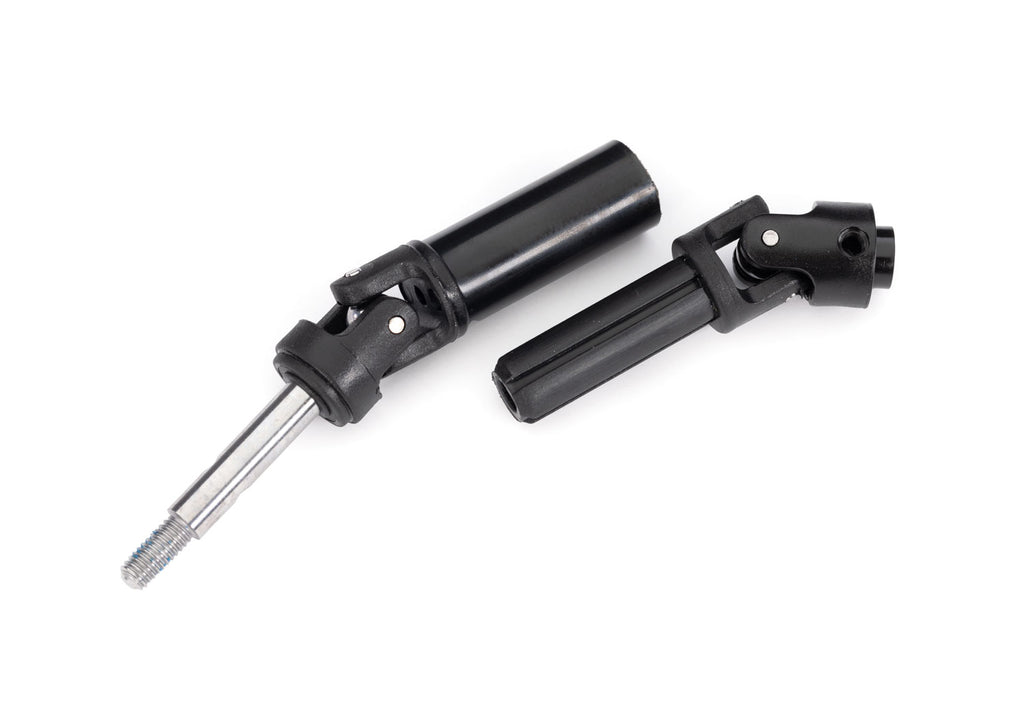

- Heavy-duty telescoping U-joint driveshafts and yokes
- Steering
- High-torque waterproof Traxxas 2056 steering servo

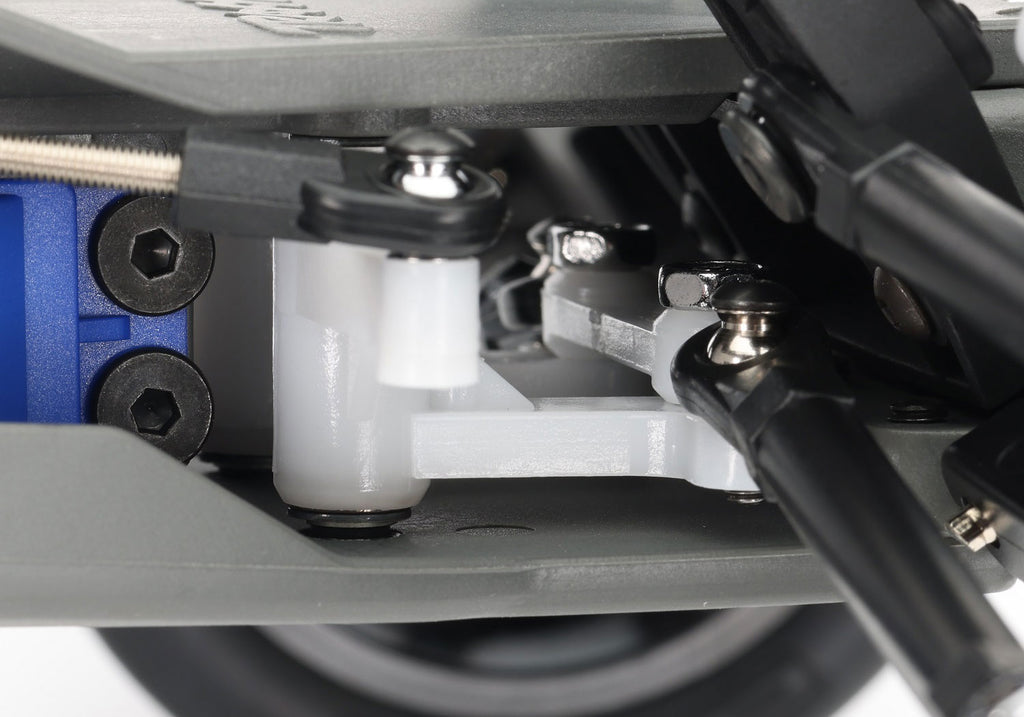

- High-performance bellcrank system minimizes bump steer
- Suspension

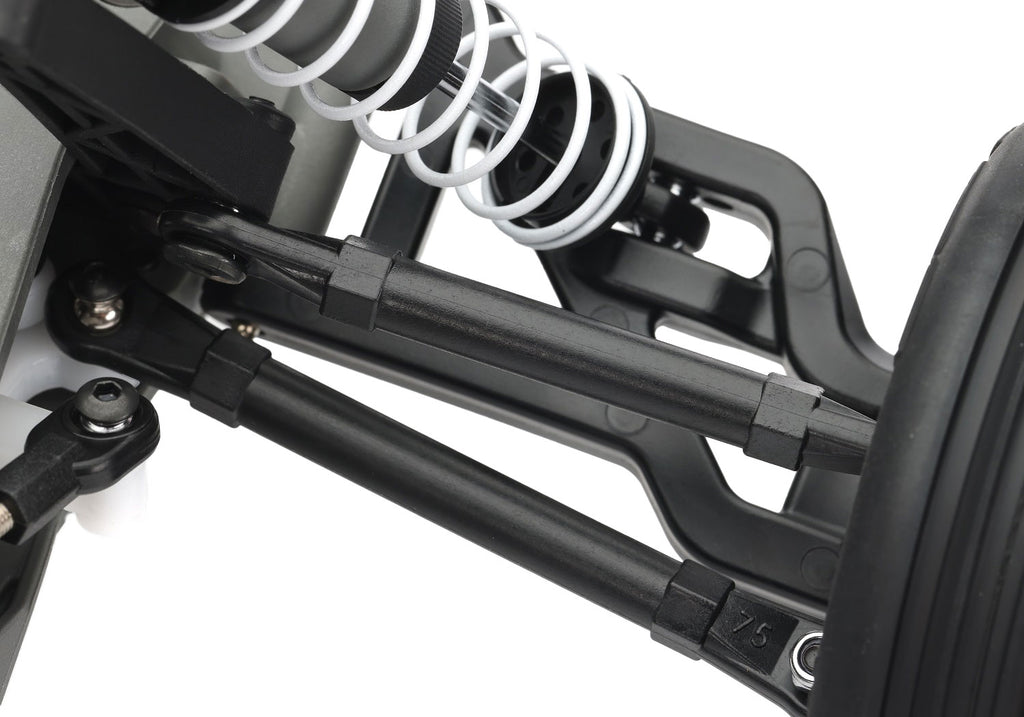

- Durable solid camber links eliminate the need for adjustment
- Captured rod ends won't pop off
- Springs and Shocks
- Fully adjustable oil-filled Ultra Shocks™ ;with X-ring technology
- White powder-coated springs
- Wheels and Tires

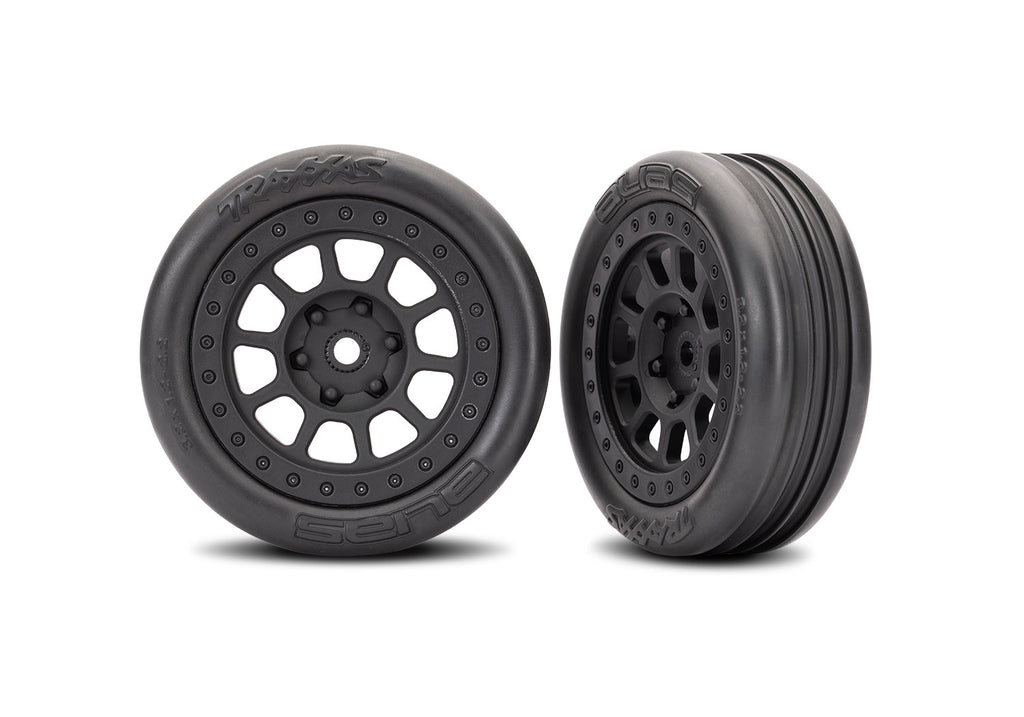

- Pre-glued Alias® step-pin rear tires and ribbed front tires with performance foam inserts
- 2.2″ black multi-spoke wheels
- Precision Hex Hardware

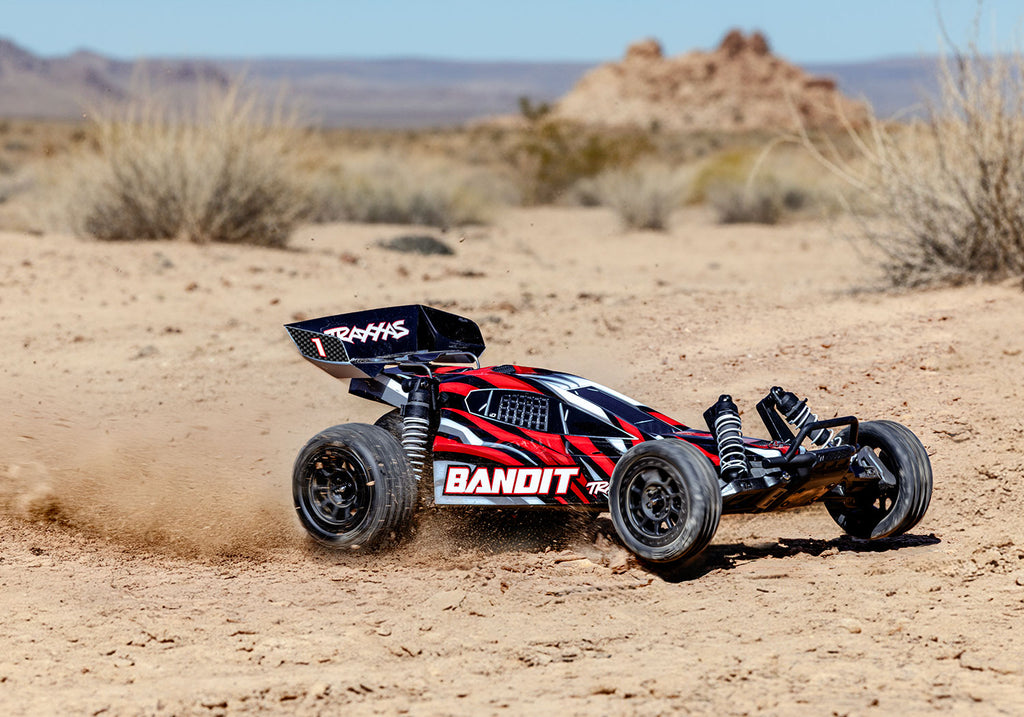

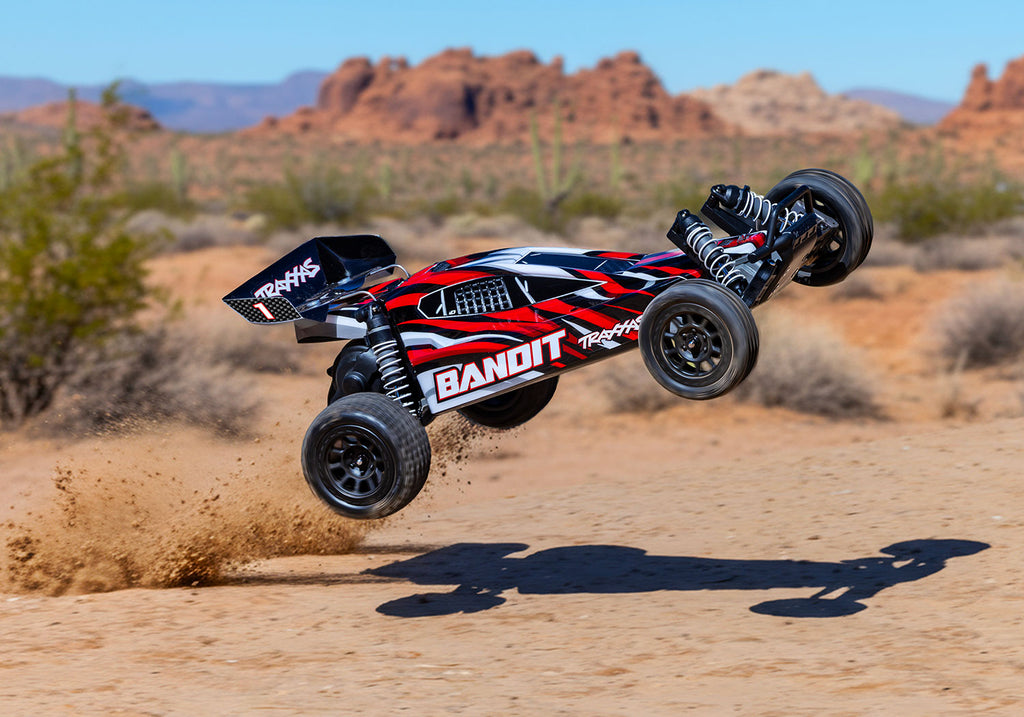

MODEL 24254-8: Fully assembled, waterproof, Ready-To-Race®, with TQ™ 2.4 GHz radio system, XL-5® Electronic Speed Control, 8.4 V NiMH 3000 mAh Power Cell™ battery, 4-amp USB-C fast charger, and ProGraphix® painted body.
What’s In The Box:
- Bandit 2WD with XL-5™ ESC and Titan® 550 Motor
- TQ™ 2.4 GHz radio system
- Traxxas 3000 mAh, 8.4-volt 7-cell NiMH battery with iD®
- 4-amp USB-C fast charger
- High quality maintenance tools
What You’ll Need:
- Batteries
Four AA alkaline batteries for the transmitter.
