37454-4-ORNG
MODEL SPECS
| Name: | Rustler 2WD Brushless |
|---|---|
| Type: | Brushless Stadium Truck |
| Speed: | 40+ mph with 2-cell LiPo, 60+ with 3-cell LiPo |
| Skill Level: | 1 |
| Scale: | 1/10 |
| Weight: | 4.33 pounds (1.96 kg) |
| Length: | 18.5 inches (470 mm) |
| Width: | 12.25 inches (311 mm) |
| Front Track: | 12.25 inches (311 mm) |
| Rear Track: | 12.25 inches (311 mm) |
MOTOR SPECS
| Name: | Velineon V3200 (patent pending) |
|---|---|
| Motor Type: | Sensorless brushless |
| Weight: | 7.48 ounces (212 g) |
| Length: | 3.15 inches (80 mm) |
| Diameter: | 1.53 inches (39 mm) |
| Shaft Size: | 5 mm |
| Connector Type: | 3.5 mm Bullet |
ESC SPECS
| Name: | VX3 Electronic Speed Control |
|---|---|
| ESC Type: | Brushless |
| Voltage Range: | 2-cell or 3-cell LiPo (NiMH not supported) |
| Case Size: | 2.40″ (61 mm) x 2.09″ (53 mm) x 1.69″ (43 mm) |
| Weight: | 4.20 ounces (119 g) |
| BEC Voltage: | 6.0 volts |
| Motor Connectors: | 3.5 mm Bullet |
| Battery Connectors: | Traxxas High-Current Connector |
- 40+ mph with 2s LiPo. 60+ mph with 3s LiPo (no gearing change required)
-
NEW Clipless Stadium Truck Body
- More aggressive styling
- Tough molded rear wing
- Body reinforcements to prevent pull-through damage
- Holds tight for intense action
- Quick and easy removal
- Includes wheelie bar
-
NEW Velineon® VX3 Waterproof Electronic Speed Control
- Large aluminum heat sink with cooling fan
- Three programmable drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse (patented)
- Traxxas EZ-Set® one-button setup
- Telemetry capable with optional accessories
- High-Resolution Linear Braking
- Compatible with 2s and 3s LiPo batteries (NiMH not supported)
-
NEW Velineon V3200 Brushless Motor
- Ultra high-temperature sintered Neodymium magnets provide massive torque and linear power
- 3200 Kv optimized for power and efficiency in 1/10th scale vehicles
- 5 mm output shaft
- Internal cooling fan for longer run times
- Low-maintenance design
- Efficient, high-speed ball bearings
-
NEW TQi™ Sport 2.4 GHz 2-Channel Radio System
- Removable grip adapter for smaller hands
- High-output signal delivers outstanding range
- Simple one-button programming
- 30-model memory
- 3-channel micro receiver with fail-safe security
- NEW Chassis-integrated watertight receiver box with O-ring sealed cover
-
Traxxas Stability Management® (TSM)
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the truck
- Activated or deactivated directly from the transmitter
-
NEW Clipless Battery Strap
- Rugged battery strap latches shut to secure batteries
- No battery clips to lose
- Accepts many 2s and 3s battery configurations
-

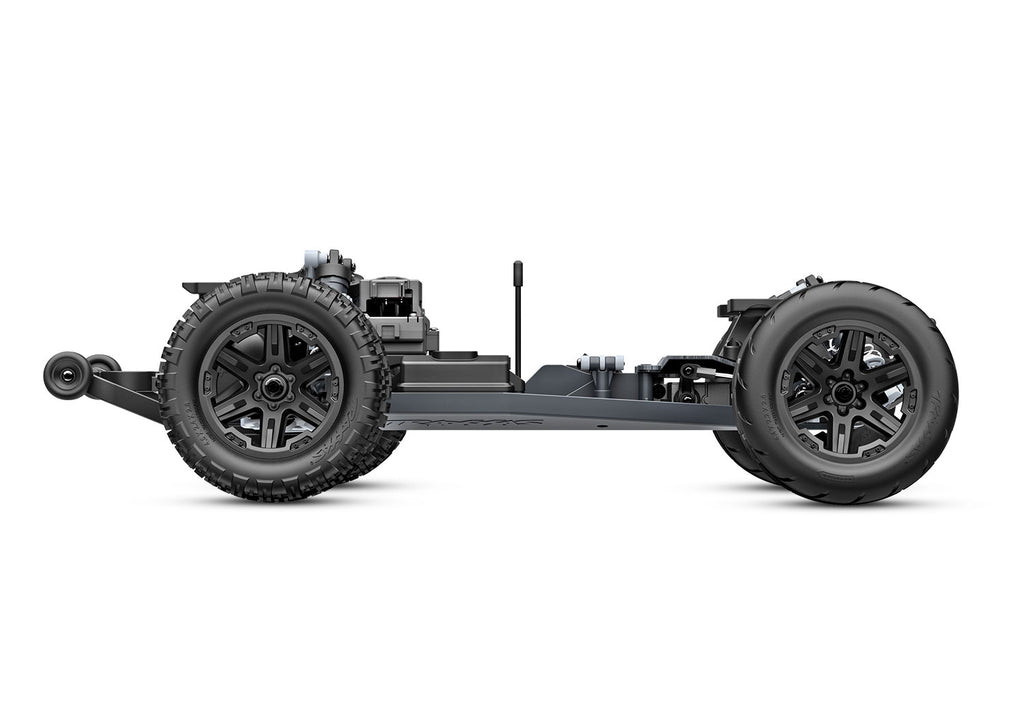

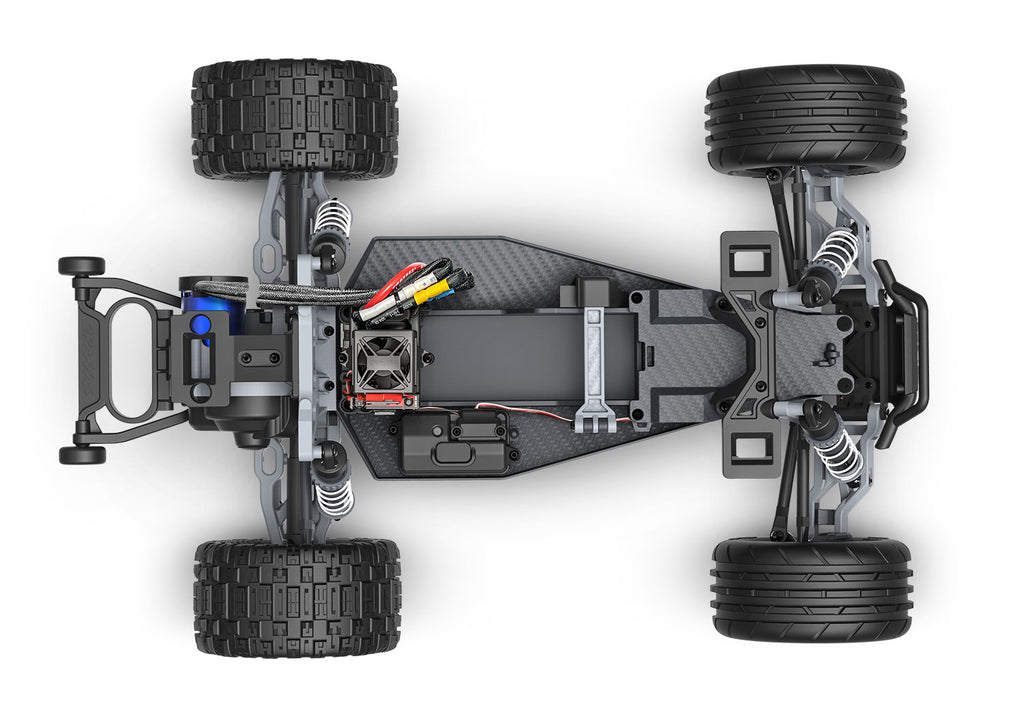

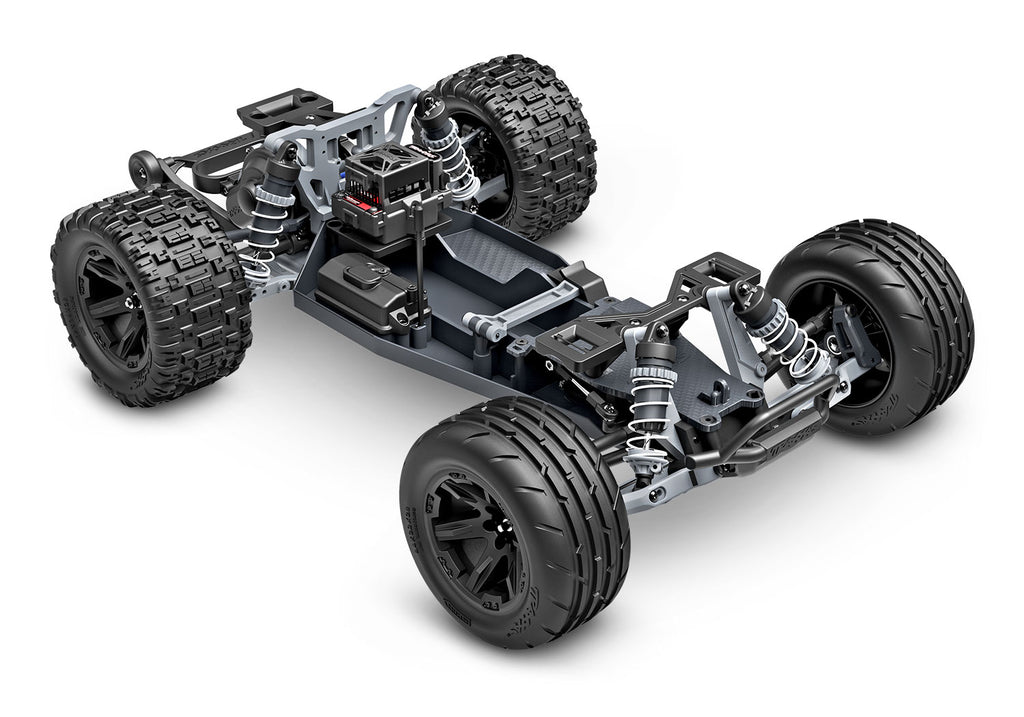

NEW Tough Fiber-Composite Monocoque Chassis
- Wide, low-profile design for increased stability
- Carbon-fiber texture for a high-tech look and feel
- Tough front tube bumper to protect the chassis
-
Steering
-
NEW 2057 waterproof, metal-gear servo
- Full metal gear train for improved durability
- NEW dual bellcrank design with integrated servo saver
-
NEW 2057 waterproof, metal-gear servo
-
Transmission and Driveline
- Magnum 272™ metal-gear transmission
- Torque-Control™ slipper clutch system
- NEW 32-pitch spur and pinion gear
- Planetary gear differential with steel ring gear
- Sealed gearbox protects the transmission with beefed up motor guard
- External gear cover with easy clutch access
-
Suspension
-
NEW Composite GTR Shocks
- Threaded shock collars for precise ride height adjustment
- Large oil capacity for consistent damping
- White powder-coated springs
- Spring retainers captured with a screw
- 3.5 mm shaft
- Durable solid camber links eliminate the need for adjustment
- Captured rod ends won't pop off
- NEW steel front tie bar
-
NEW Composite GTR Shocks
-
Wheels and Tires
-
NEW Sledgehammer ST rear tires
- Open-block tread design clears away mud and debris
- Unrivaled traction on loose surfaces
-
NEW Front Tires
- Concentric rings and wide tread blocks
- Combines the off-road benefits of a ribbed tire with the grip of street tire
- Tough 2.8" RXT 6-spoke black wheels
-
NEW Sledgehammer ST rear tires
- Rubber-Sealed Ball Bearings
- Precision Hex Hardware
- Battery and Charger Sold Separately

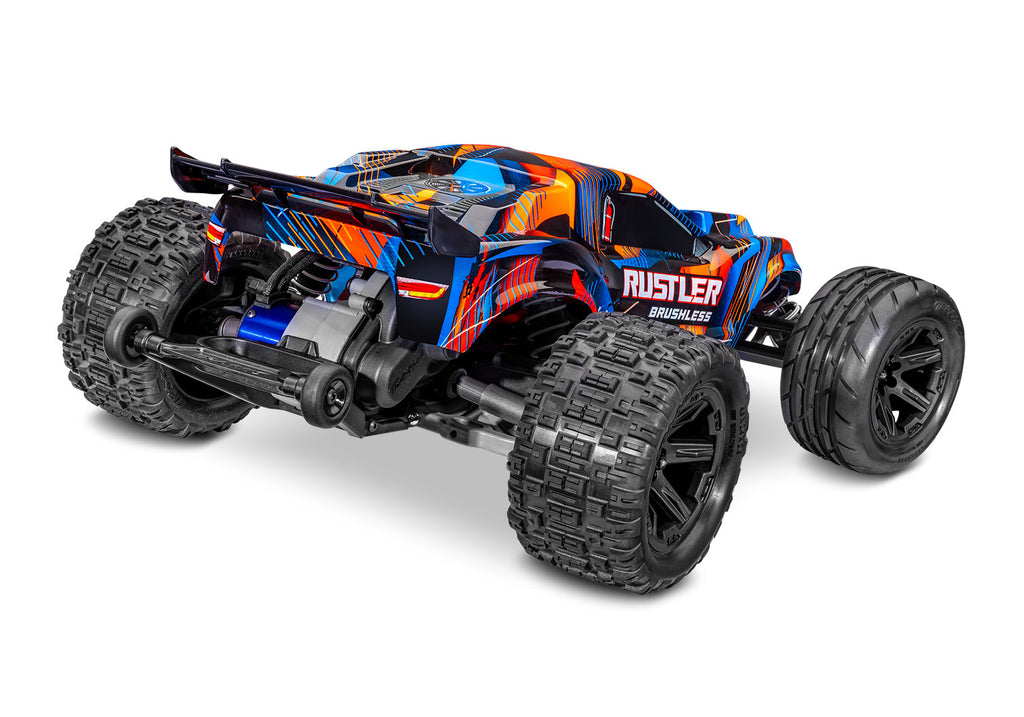

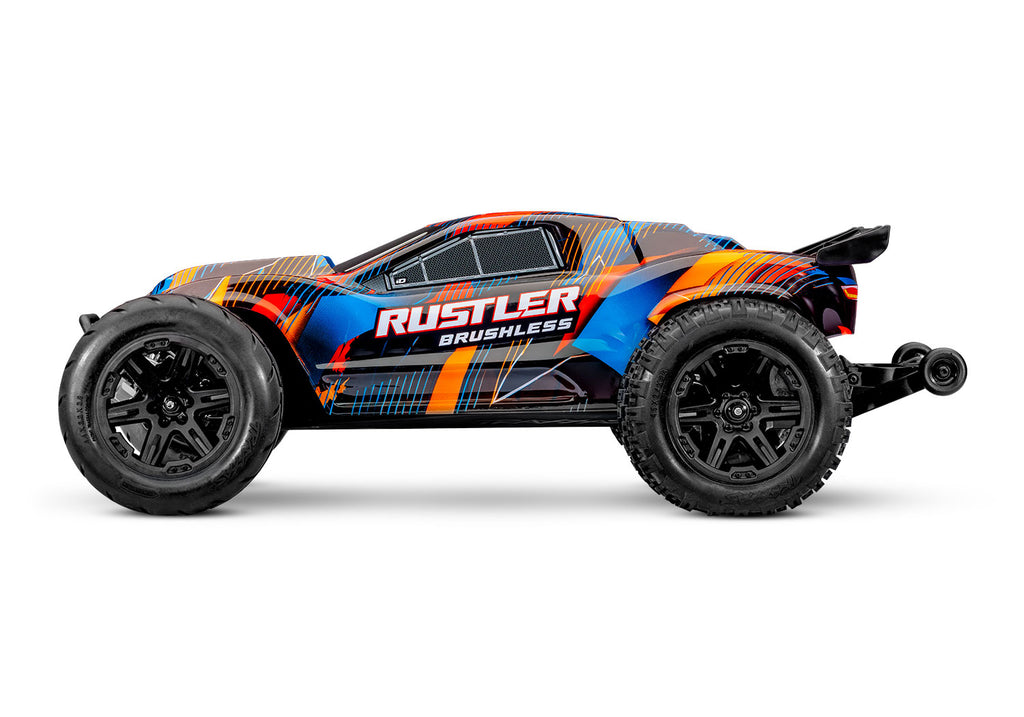

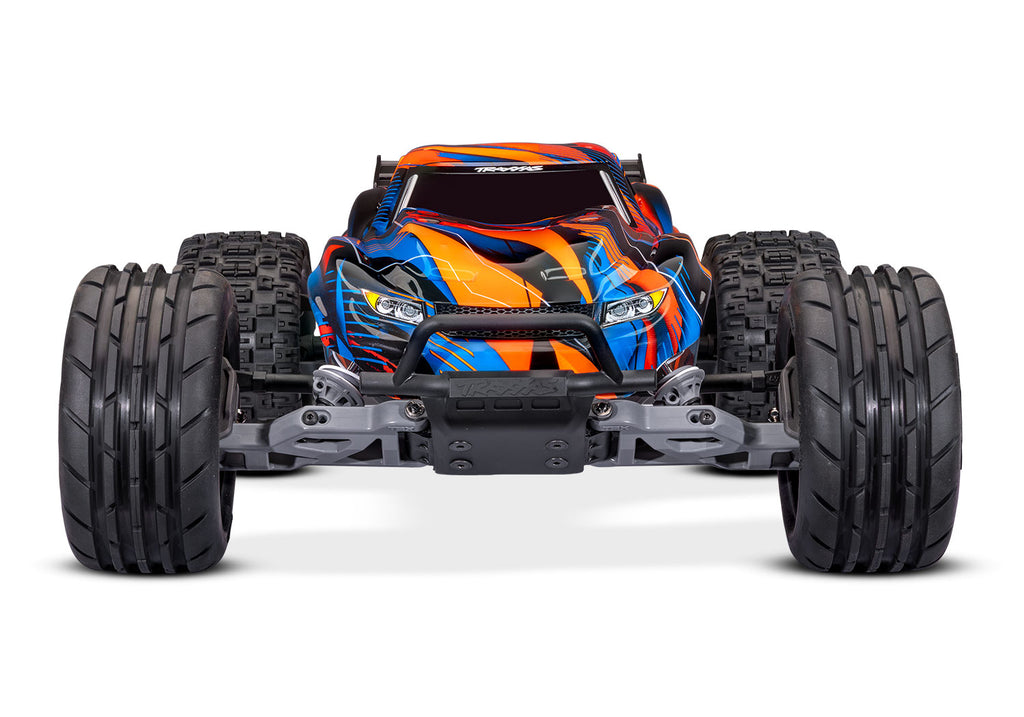

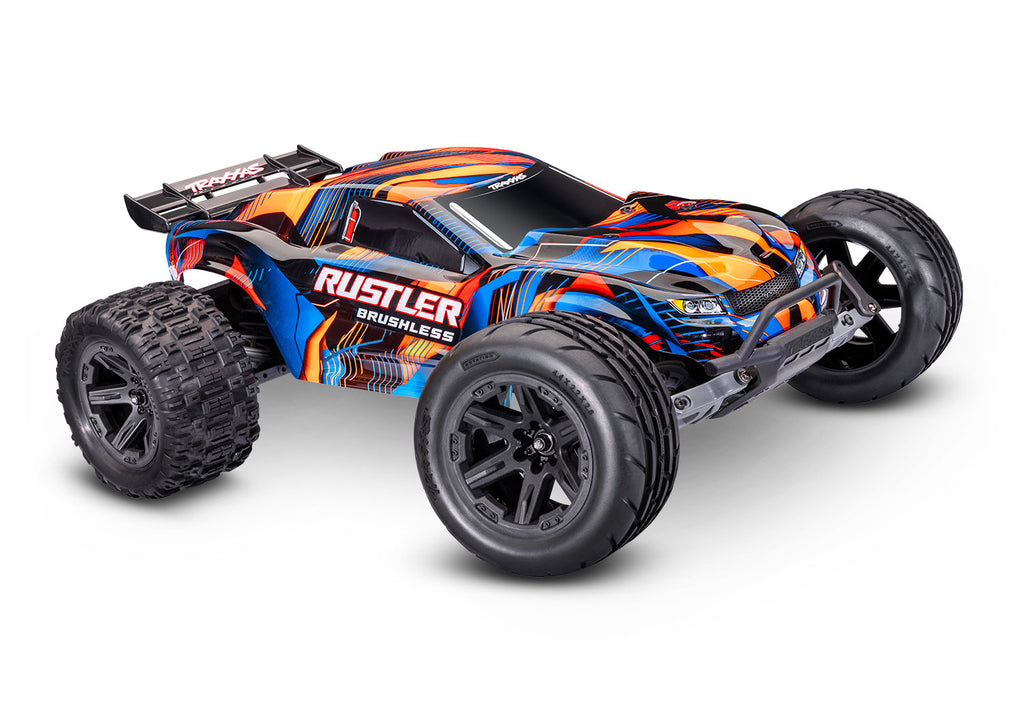

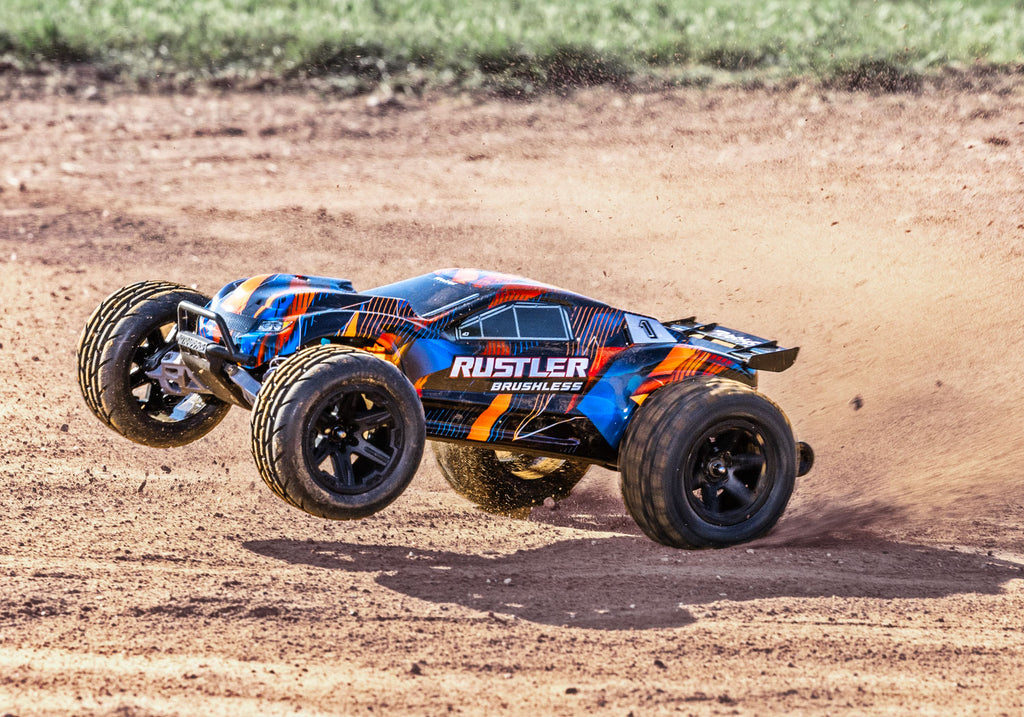

MODEL 37454-4: Rustler® 2WD Brushless: 1/10 scale stadium truck, fully-assembled, waterproof, Ready-To-Race®, with TQi™ Sport 2.4 GHz 2-channel radio system with TSM®, Velineon® 3s brushless power system, and clipless painted body. Requires: battery and charger.
What’s In The Box:
- Rustler 2WD stadium truck with VX3 ESC and V3200 motor
- TQi Sport 2.4 GHz radio system
- High quality maintenance tools
What You’ll Need:
- Batteries
Rustler 2WD Brushless requires a single 2-cell or 3-cell LiPo battery.
- Charger
The Traxxas EZ-Peak® charger 2970 is recommended for easy and fast charging performance.
- AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
